RF2629
10
Typical Applications
鈥?3V CDMA/FM Cellular Systems
鈥?3V CDMA PCS Systems
鈥?3V TDMA Cellular/PCS Systems
鈥?Supports Dual-Mode AMPS/CDMA
鈥?Supports Dual-Mode TACS/CDMA
鈥?Portable Battery-Powered Equipment
3V CDMA/FM TRANSMIT AGC AMPLIFIER
Product Description
The RF2629 is a complete AGC amplifier designed for
the transmit section of 3V dual-mode CDMA/FM cellular
and PCS applications. It is designed to amplify IF signals
while providing more than 84dB of gain control range.
Noise Figure, IP3, and other specifications are designed
for CDMA and dual mode CDMA/AMPS handsets. This
circuit is designed as part of the RFMD CDMA Chip Set,
consisting of this Transmit IF AGC Amp, a Transmit
Upconverter, a Receive LNA/Mixer, and a Receive IF
AGC Amp. The IC is manufactured on an advanced high
frequency Silicon Bipolar process and is packaged in a
standard miniature 8-lead plastic MSOP package.
0.192
+ 0.008
0.012
0.006
+ 0.003
-A-
0.0256
0.118
+ 0.004 sq.
6擄 MAX
0擄 MIN
0.034
NOTES:
1. Shaded lead is pin 1.
2. All dimensions are exclusive of
flash, protrusions or burrs.
3. Lead coplanarity: 0.002 with
respect to datum "A".
0.021
+ 0.004
0.006
+ 0.002
Optimum Technology Matching廬 Applied
Si Bi-CMOS
SiGe HBT
Si CMOS
鈥?Supports Dual Mode Operation
鈥?Supports PCS and Cellular Applications
鈥?-48dB to +38dB Gain Control Range
IN+ 1
IN- 2
GND 3
GC 4
GAIN
CONTROL
8 VCC1
7 VCC2
6 OUT+
5 OUT-
鈥?Single 3V Power Supply
鈥?12MHz to 175MHz Operation
鈥?Miniature Surface Mount Package
Ordering Information
RF2629
RF2629 PCBA
3V CDMA/FM Transmit AGC Amplifier
Fully Assembled Evaluation Board
Functional Block Diagram
RF Micro Devices, Inc.
7628 Thorndike Road
Greensboro, NC 27409, USA
Tel (336) 664 1233
Fax (336) 664 0454
http://www.rfmd.com
Rev B4 010720
10-39
IF AMPLIERS
眉
Si BJT
Package Style: MSOP-8
10
GaAs HBT
GaAs MESFET

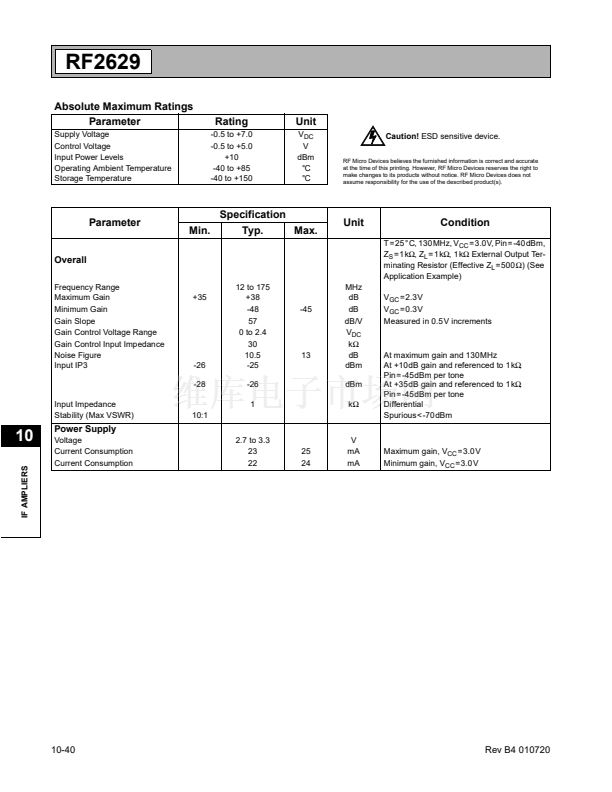

Features
1
2
3
4
5
6
