RF2364_06 Datasheet

  • RF2364_06

  • 3V PCS LOW NOISE AMPLIFIER

  • 132.19KB

  • 10頁

  • RFMD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

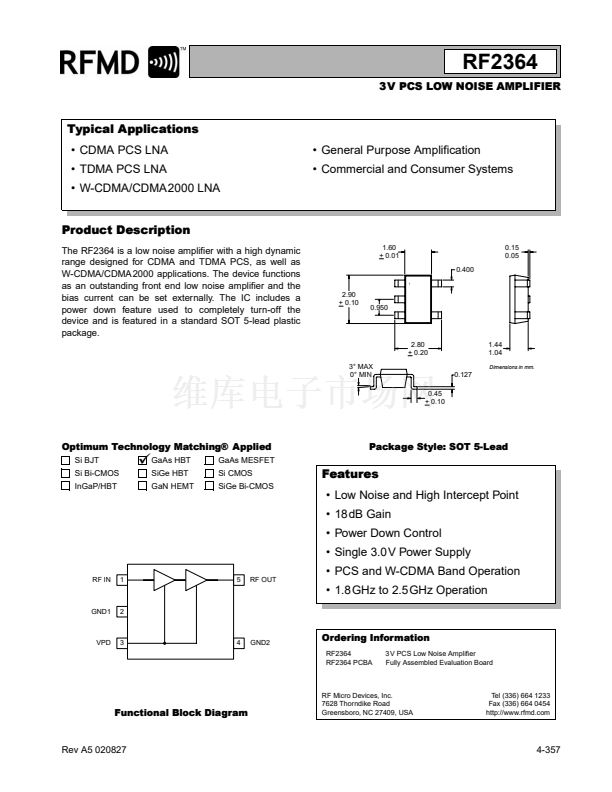

RF2364
0
Typical Applications
鈥?CDMA PCS LNA
鈥?TDMA PCS LNA
鈥?W-CDMA/CDMA2000 LNA
Product Description
The RF2364 is a low noise amplifier with a high dynamic
range designed for CDMA and TDMA PCS, as well as
W-CDMA/CDMA2000 applications. The device functions
as an outstanding front end low noise amplifier and the
bias current can be set externally. The IC includes a
power down feature used to completely turn-off the
device and is featured in a standard SOT 5-lead plastic
package.
1.60
+ 0.01
0.400
1
3V PCS LOW NOISE AMPLIFIER
鈥?General Purpose Amplification
鈥?Commercial and Consumer Systems
0.15
0.05
2.90
+ 0.10
0.950
2.80
+ 0.20
3擄 MAX
0擄 MIN
0.45
+ 0.10
0.127
1.44
1.04
Dimensions in mm.
Optimum Technology Matching廬 Applied
Si BJT
Si Bi-CMOS
InGaP/HBT
GaAs HBT
SiGe HBT
GaN HEMT
GaAs MESFET
Si CMOS
SiGe Bi-CMOS
Package Style: SOT 5-Lead
Features
鈥?Low Noise and High Intercept Point
鈥?18dB Gain
鈥?Power Down Control
鈥?Single 3.0V Power Supply
鈥?PCS and W-CDMA Band Operation
鈥?1.8GHz to 2.5GHz Operation

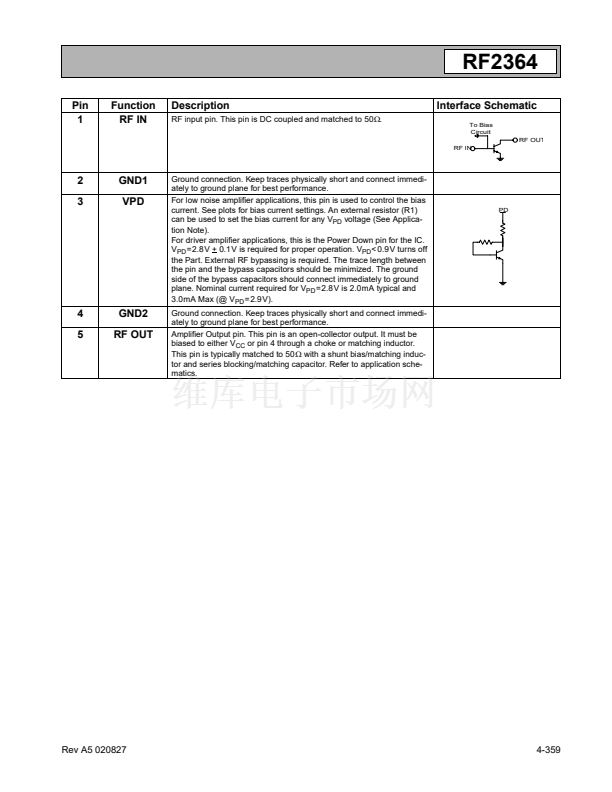

RF IN
1
5
RF OUT
GND1
2
VPD
3
4
GND2
Ordering Information
RF2364

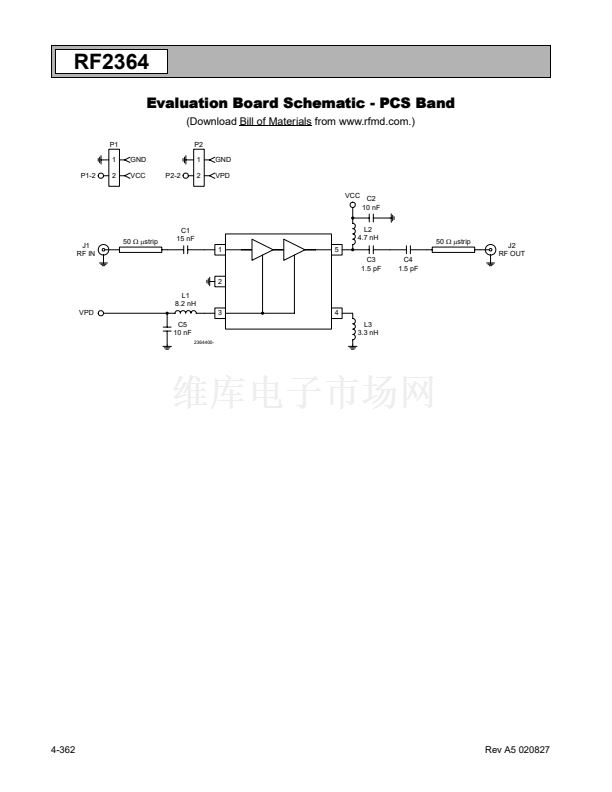

RF2364 PCBA
3V PCS Low Noise Amplifier

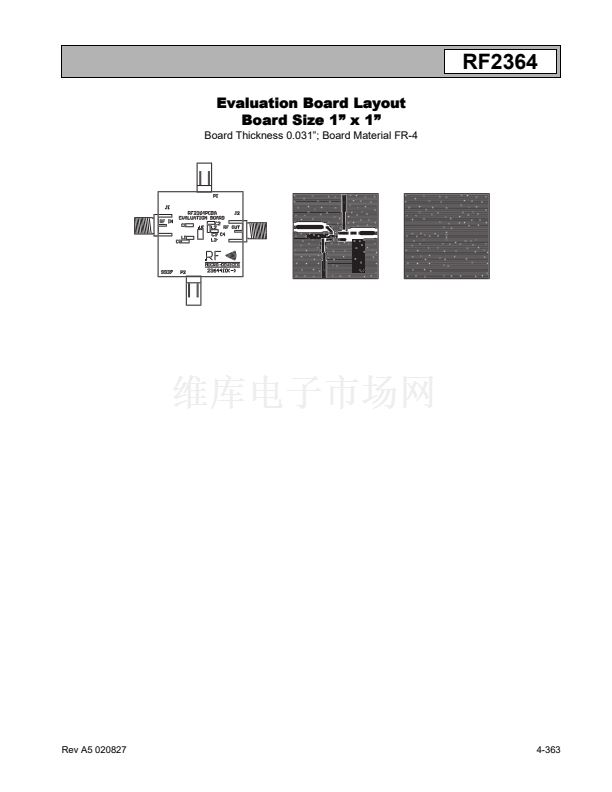

Fully Assembled Evaluation Board
Functional Block Diagram
RF Micro Devices, Inc.
7628 Thorndike Road
Greensboro, NC 27409, USA
Tel (336) 664 1233
Fax (336) 664 0454
http://www.rfmd.com
Rev A5 020827
4-357
