RF1K49090 Datasheet

  • RF1K49090

  • 3.5A, 12V, 0.050 Ohm, Logic Level, Dual N-Channel LittleFET...

  • 7頁

  • INTERSIL   INTERSIL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

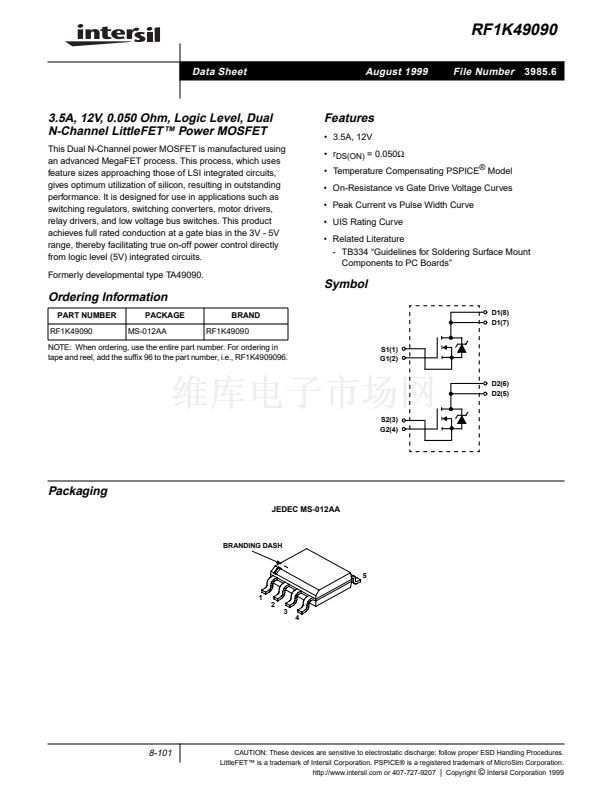

RF1K49090
Data Sheet
August 1999
File Number
3985.6
3.5A, 12V, 0.050 Ohm, Logic Level, Dual
N-Channel LittleFET鈩?Power MOSFET
This Dual N-Channel power MOSFET is manufactured using
an advanced MegaFET process. This process, which uses
feature sizes approaching those of LSI integrated circuits,
gives optimum utilization of silicon, resulting in outstanding
performance. It is designed for use in applications such as
switching regulators, switching converters, motor drivers,
relay drivers, and low voltage bus switches. This product
achieves full rated conduction at a gate bias in the 3V - 5V
range, thereby facilitating true on-off power control directly
from logic level (5V) integrated circuits.
Formerly developmental type TA49090.
Features
鈥?3.5A, 12V
鈥?r
DS(ON)
= 0.050鈩?/div>
鈥?Temperature Compensating PSPICE
廬
Model
鈥?On-Resistance vs Gate Drive Voltage Curves
鈥?Peak Current vs Pulse Width Curve
鈥?UIS Rating Curve
鈥?Related Literature
- TB334 鈥淕uidelines for Soldering Surface Mount
Components to PC Boards鈥?/div>
Symbol
BRAND
RF1K49090
S1(1)
G1(2)
D1(8)
D1(7)
Ordering Information
PART NUMBER
RF1K49090
PACKAGE
MS-012AA
NOTE: When ordering, use the entire part number. For ordering in
tape and reel, add the suffix 96 to the part number, i.e., RF1K4909096.
D2(6)
D2(5)
S2(3)
G2(4)
Packaging
JEDEC MS-012AA
BRANDING DASH
5
1
2
3
4
8-101
CAUTION: These devices are sensitive to electrostatic discharge; follow proper ESD Handling Procedures.
LittleFET鈩?is a trademark of Intersil Corporation. PSPICE廬 is a registered trademark of MicroSim Corporation.
http://www.intersil.com or 407-727-9207
|
Copyright
漏
Intersil Corporation 1999

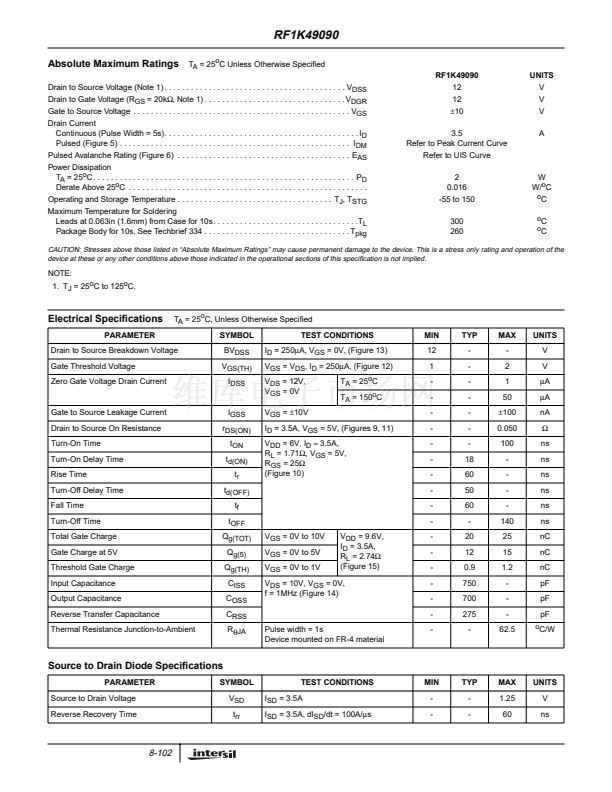

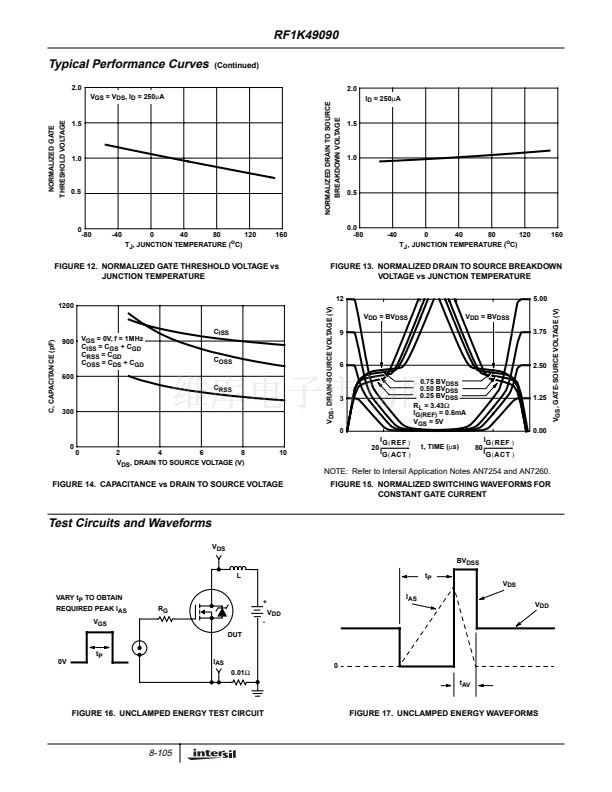

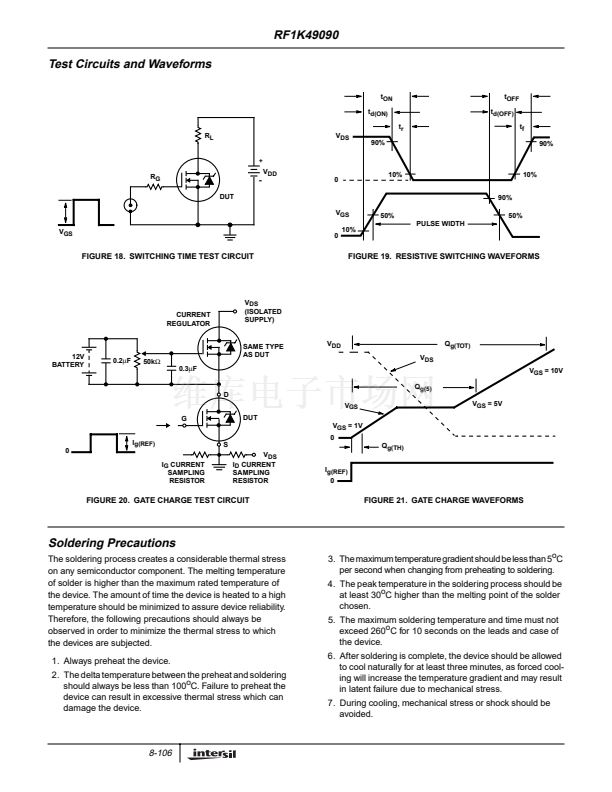

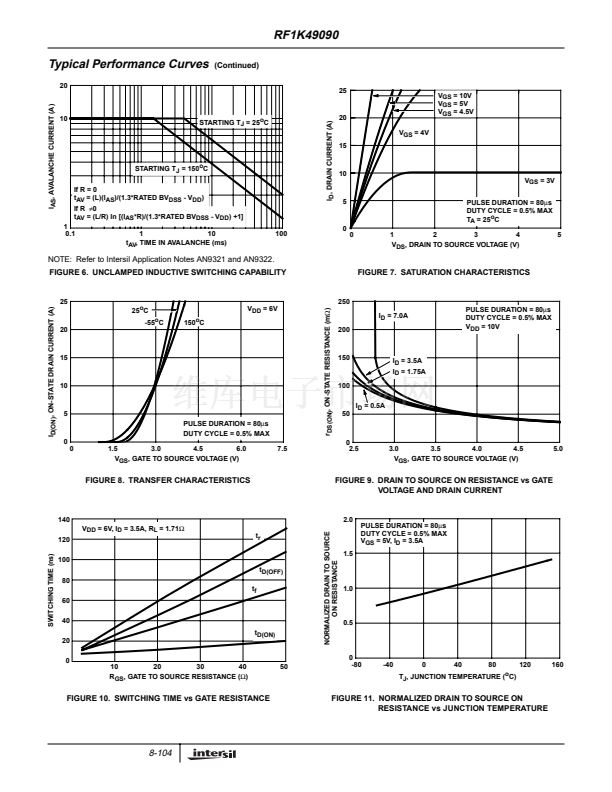

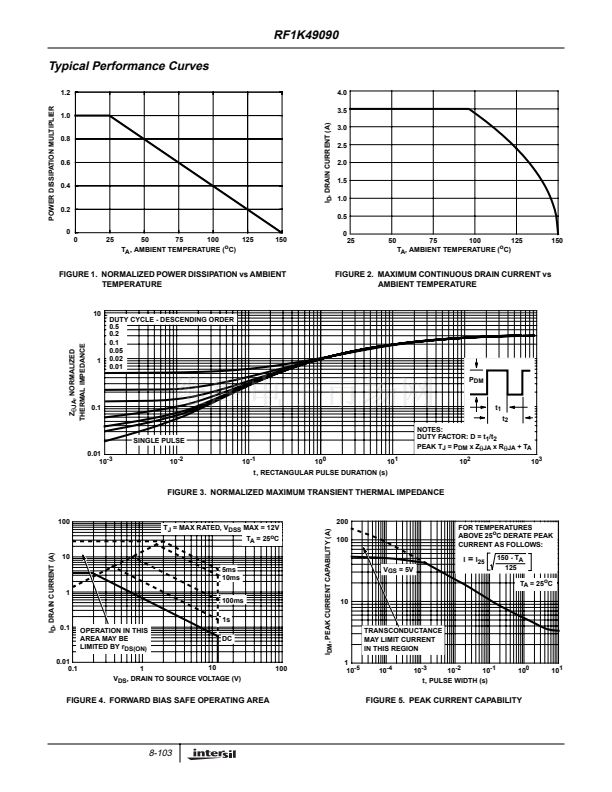

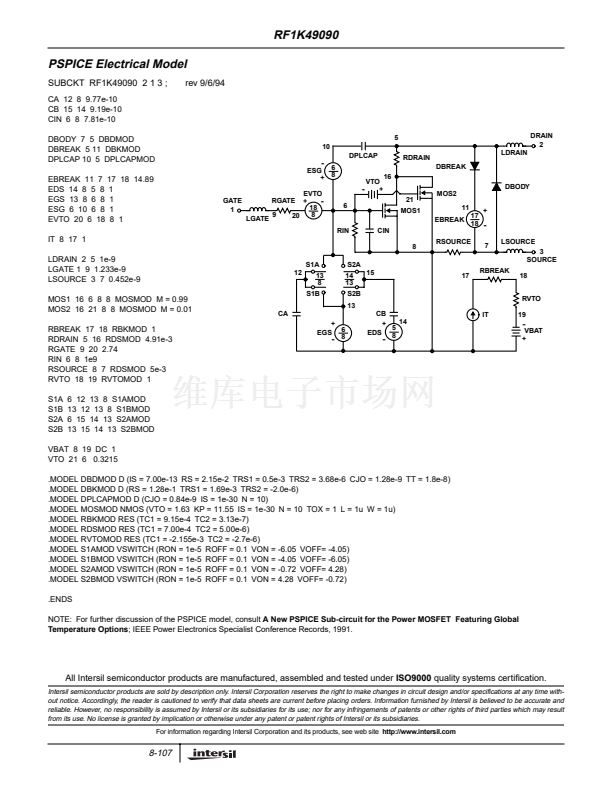

RF1K49090 產品屬性

  • Fairchild Semiconductor

  • N-Channel

  • 12 V

  • +/- 10 V

  • 3.5 A

  • 0.05 Ohms

  • Dual Dual Drain

  • + 150 C

  • SMD/SMT

  • SOP-8

  • 60 ns

  • - 55 C

  • 2 W

  • 60 ns

  • 50 ns
