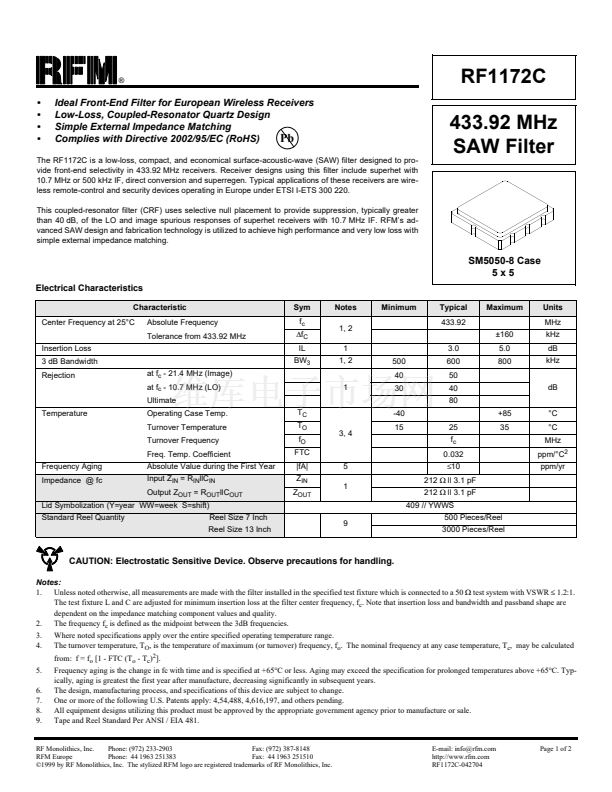

1.2:1.
The test fixture L and C are adjusted for minimum insertion loss at the filter center frequency, f
c
. Note that insertion loss and bandwidth and passband shape are
dependent on the impedance matching component values and quality.
2.
The frequency f
c
is defined as the midpoint between the 3dB frequencies.
3.
Where noted specifications apply over the entire specified operating temperature range.
4.
The turnover temperature, T
O
, is the temperature of maximum (or turnover) frequency, f
o
. The nominal frequency at any case temperature, T
c
, may be calculated
5.
6.
7.
8.
9.
from: f = f
o
[1 - FTC (T
o
- T
c
)
2
].
Frequency aging is the change in fc with time and is specified at +65擄C or less. Aging may exceed the specification for prolonged temperatures above +65擄C. Typ-
ically, aging is greatest the first year after manufacture, decreasing significantly in subsequent years.
The design, manufacturing process, and specifications of this device are subject to change.
One or more of the following U.S. Patents apply: 4,54,488, 4,616,197, and others pending.
All equipment designs utilizing this product must be approved by the appropriate government agency prior to manufacture or sale.
Tape and Reel Standard Per ANSI / EIA 481.
RF Monolithics, Inc.
Phone: (972) 233-2903
Fax: (972) 387-8148
RFM Europe
Phone: 44 1963 251383
Fax: 44 1963 251510
漏1999 by RF Monolithics, Inc. The stylized RFM logo are registered trademarks of RF Monolithics, Inc.
E-mail: info@rfm.com
http://www.rfm.com
RF1172C-042704
