UL-60950-1 / CSA C22.2 certified
5W DIP Package
4kVDC
&
6kVDC Isolation
Regulated Output
Continuous Short Circuit Protection
Auto-Restarting
Wide Input 2:1
&
4:1
UL94V-0 Package Material
Cost Effective
100% Burned In
Efficiency to 86%
ECONOLINE
DC/DC-Converter
REC5-
S_DRW/H4,
H6 Series
Efficiency
(%)
75-77
79-81
82-83
84-85
85-86
79-81
84-85
85-86
75-76
81-82
82-83
83-84
84-85
81-82
82-83
84-85
Selection Guide
Part
Number
DIP24
REC5-xx3.3SRW (H4/H6)
REC5-xx05SRW (H4/H6)
REC5-xx09SRW (H4/H6)
REC5-xx12SRW (H4/H6)
REC5-xx15SRW (H4/H6)
REC5-xx05DRW (H4/H6)
REC5-xx12DRW (H4/H6)
REC5-xx15DRW (H4/H6)
REC5-xx3.3SRWZ (H4/H6)
REC5-xx05SRWZ (H4/H6)
REC5-xx09SRWZ (H4/H6)
REC5-xx12SRWZ (H4/H6)
REC5-xx15SRWZ (H4/H6)
REC5-xx05DRWZ (H4/H6)
REC5-xx12DRWZ (H4/H6)
REC5-xx15DRWZ (H4/H6)
2:1 Input (REC5-S/DRWH4/H6)
xx = 9-18Vin = 12
xx = 18-36Vin = 24
xx = 36-72Vin = 48
Input
Voltage
(VDC)
9 - 18, 18 - 36, 36 - 72
9 - 18, 18 - 36, 36 - 72
9 - 18, 18 - 36, 36 - 72
9 - 18, 18 - 36, 36 - 72
9 - 18, 18 - 36, 36 - 72
9 - 18, 18 - 36, 36 - 72
9 - 18, 18 - 36, 36 - 72
9 - 18, 18 - 36, 36 - 72
9 - 36**, 18 - 72
9 - 36**, 18 - 72
9 - 36**, 18 - 72
9 - 36**, 18 - 72
9 - 36**, 18 - 72
9 - 36**, 18 - 72
9 - 36**, 18 - 72
9 - 36**, 18 - 72
Output
Voltage
(VDC)
3.3
5
9
12
15
鹵5
鹵12
鹵15
3.3
5
9
12
15
鹵5
鹵12
鹵15
Output
Current
(mA)
1200
1000
556
420
340
鹵500
鹵210
鹵170
1200
1000
556
420
340
鹵500
鹵210
鹵170
5 Watt
DIP24 / SMD
Single
&
Dual Output
4:1 Input (REC5-S/DRWZ(H4/H6))
xx = 9-36Vin = 24
xx = 18-72Vin = 48
* add suffix "/H4" for 4kVDC isolation and "/H6" for 6kVDC isolation
A
C

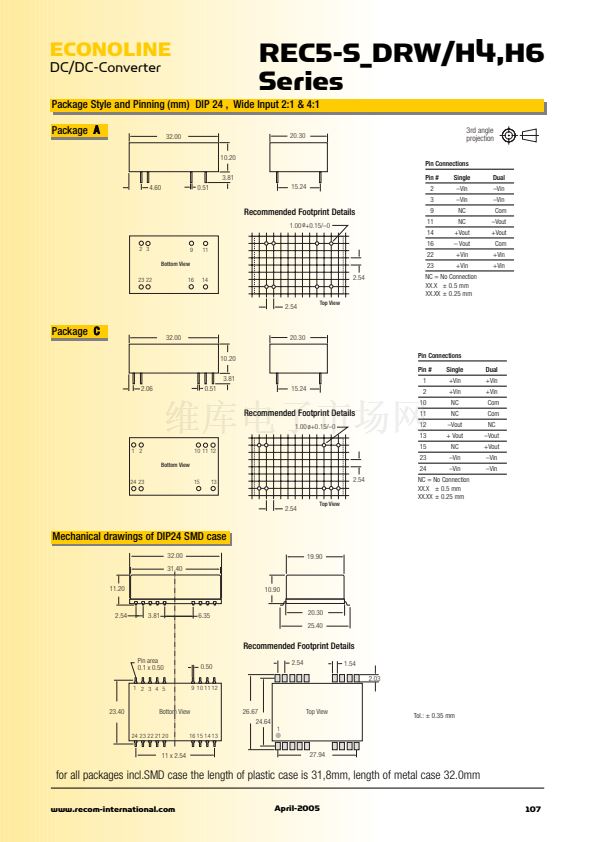

add suffix "/A" or "/C" for Pinning, see next page
M
add suffix "/M" for metal case
e.g. REC5-xxxxSRW(Z)H4/A/M = 4kVDC isol. / Pinout "A" / metal case
** 24V 4:1 Wide Range Input Types (REC5-24xxS/DRWZ(H4/H6)) should be derated
while 9 Vin : 3.3Vout / 1100mA, 5Vout / 900mA.
Notes :
M
S
1. If the options "/M" for metal case and "/SMD" for SMD pinout are combined the maximum allowed isolation
voltage is 2kVDC because of the shoter distances between pins and metal-case
so only available SMD-opti-
H
on in metal-case is "/H2"
. DIP-24 through-hole case and SMD-plastic case are not affected and offer the
desired isolation barriers of 4kVDC for "/H4" option and 6kVDC for "/H6".
Description
This series offers high isolation of 4kVDC (= option "H4") or 6kVDC (= option "H6") making it ideal for medi-
cal applications and other sophisticated industrial applications. UL-1950 approval of this series is is applied
for. Packaging can be either DIP-24 non-conductive plastic or 5-side-shielded DIP24 metal case (= option "M")
as well as DIP24-SMD case (= option "SMD"). For all the above variants, 2 industry-standard-pinouts
(= option "A" or "C") are available.
www.recom-international.com
April-2005
105
