RDC-19220/2S
Make sure the next
Card you purchase
has...
TM
16-BIT MONOLITHIC TRACKING
RESOLVER-TO-DIGITAL CONVERTER
FEATURES
鈥?/div>
Accuracy up to 2.3 Arc Minutes
鈥?/div>
Internal Synthesized Reference
鈥?/div>
+5 Volt Only Option
鈥?/div>
Programmable:
- Resolution: 10-, 12-, 14-, or 16-Bit
- Bandwidth
- Tracking Rate
鈥?/div>
Differential Resolver Input Mode
鈥?/div>
Velocity Output Eliminates
Tachometer
鈥?/div>
Built-In-Test (BIT) Output,
No 180擄 Hangup

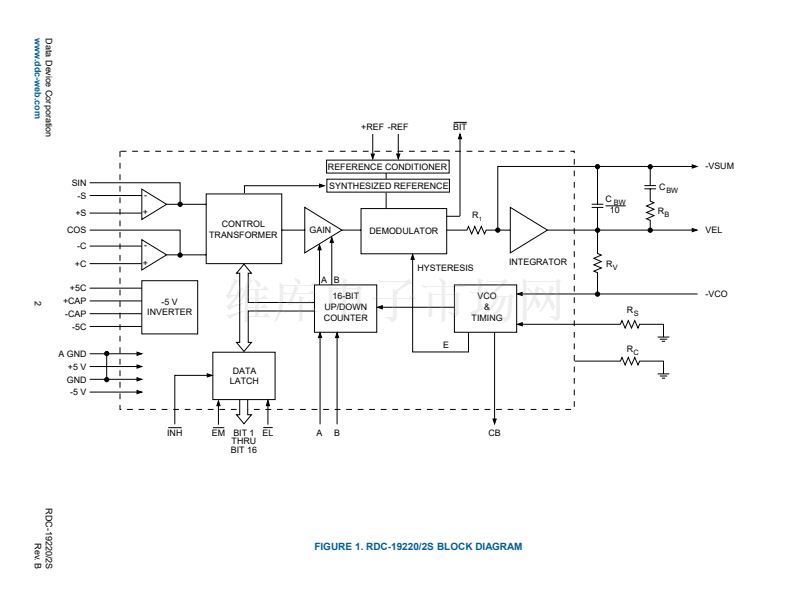

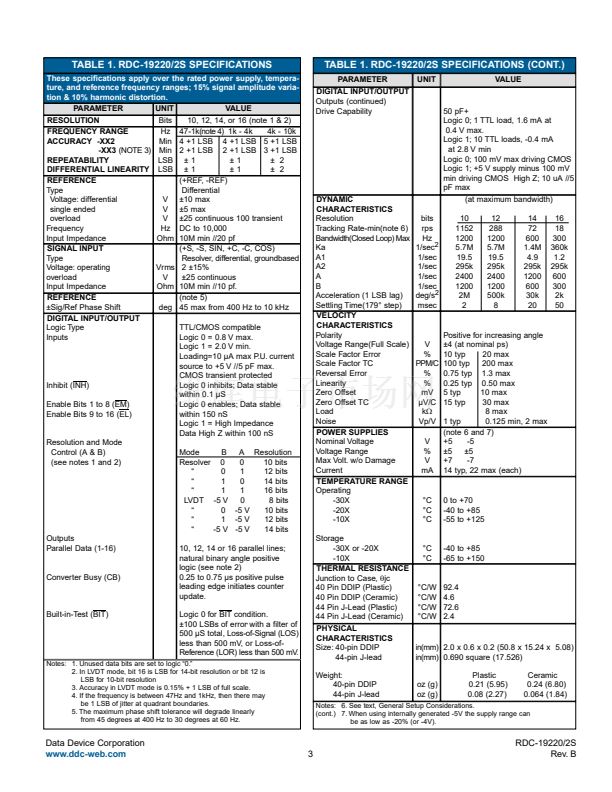

DESCRIPTION
The RDC-19220/2S is a low-cost versatile state-of-the-art 16-bit
monolithic Resolver-to-Digital Converter. This single chip converter
offers programmable features such as resolution, bandwidth and
velocity output scaling.
Resolution programming allows selection of 10, 12, 14, or 16 bits,
with accuracies to 2.3 minutes. This feature combines the high track-
ing rate of a 10-bit converter with the precision and low-speed veloc-
ity resolution of a 16-bit converter in one package.
The internal Synthesized Reference section eliminates errors due to
quadrature voltage. Previously, a 6 degree phase shift caused prob-
lems for a 16-bit converter. The synthesized reference capability
ensures operation with a phase shift up to 45 degrees.
The velocity output (VEL) from the RDC-19220/2S, which can be
used to replace a tachometer, is a 4 V signal referenced to ground.
The full-scale value of VEL is set by the user with a single resistor.
The RDC-19220/2S converter is available with operating temperature
ranges of 0擄 to +70擄C, -40擄 to +85擄C, and -55擄 to +125擄C.
鈥?/div>
-55擄 to +125擄C Operating
Temperature
APPLICATIONS
The low cost, small size, high accuracy, and versatile performance of
the RDC-19220/2S converter makes it ideal for use in modern high
performance industrial control systems. Typical applications include
motor control, radar antenna positioning, machine tool control, robot-
ics, and process control.
FOR MORE INFORMATION CONTACT:
Data Device Corporation
105 Wilbur Place
Bohemia, New York 11716
631-567-5600 Fax: 631-567-7358
www.ddc-web.com
Technical Support:
1-800-DDC-5757 ext. 7382
漏
1999, 2000 Data Device Corporation
