DATA SHEET

ZENER DIODES

RD4.7SL to RD39SL

ZENER DIODES

200 mW 2 PIN SUPER MINI MOLD

DESCRIPTION

Type RD4.7SL to RD39SL Series are 2 PIN Super Mini

Mold Package zener diodes possessing an allowable power

dissipation of 200 mW featuring low noise and sharp break-

down characteristic. They are intended for use in audio

equipment, instrument equipment.

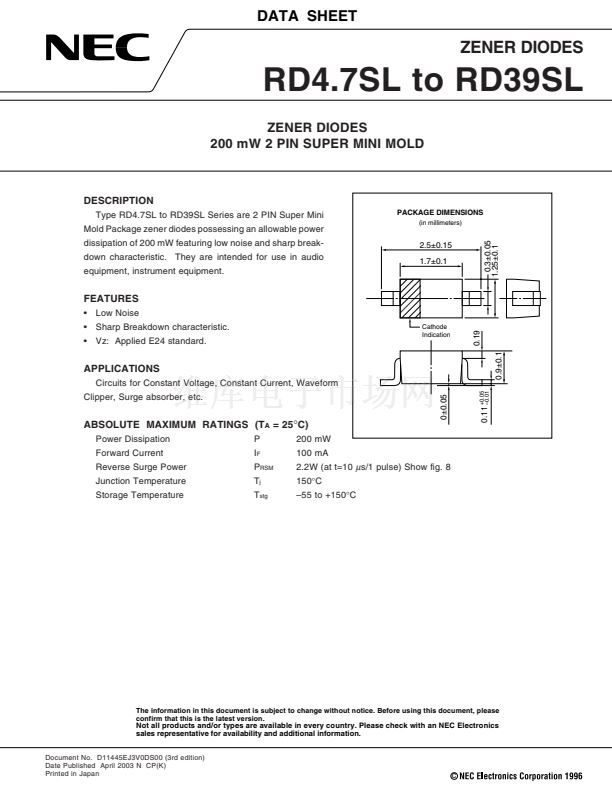

PACKAGE DIMENSIONS

(in millimeters)

2.5鹵0.15

1.7鹵0.1

FEATURES

鈥?Low Noise

鈥?Sharp Breakdown characteristic.

鈥?Vz: Applied E24 standard.

0.19

0.11

+0.05

鈥?.01

0.9鹵0.1

Cathode

Indication

APPLICATIONS

Circuits for Constant Voltage, Constant Current, Waveform

0鹵0.05

Clipper, Surge absorber, etc.

ABSOLUTE MAXIMUM RATINGS (T

A

= 25

擄

C)

Power Dissipation

Forward Current

Reverse Surge Power

Junction Temperature

Storage Temperature

P

I

F

P

RSM

T

j

T

stg

200 mW

100 mA

2.2W (at t=10

碌

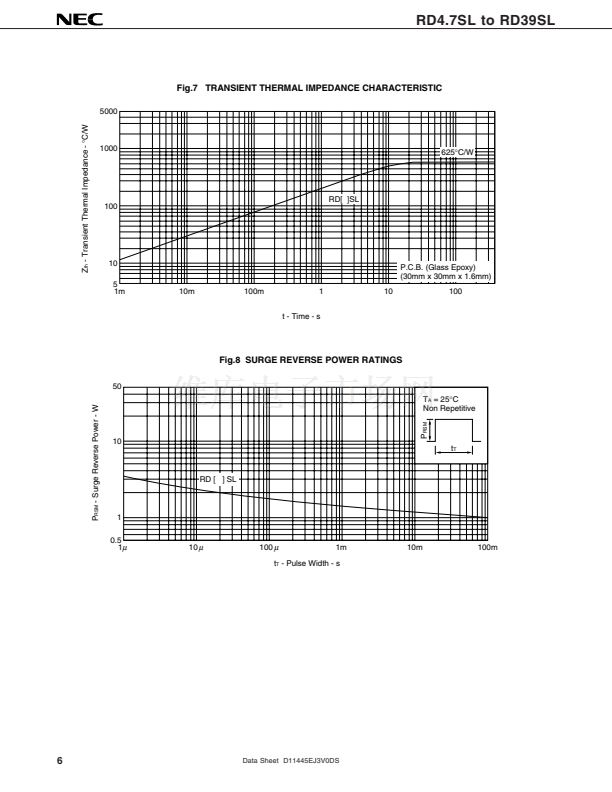

s/1 pulse) Show fig. 8

150擄C

鈥?5 to +150擄C

The information in this document is subject to change without notice. Before using this document, please

confirm that this is the latest version.

Not all products and/or types are available in every country. Please check with an NEC Electronics

sales representative for availability and additional information.

Document No. D11445EJ3V0DS00 (3rd edition)

Date Published April 2003 N CP(K)

Printed in Japan
