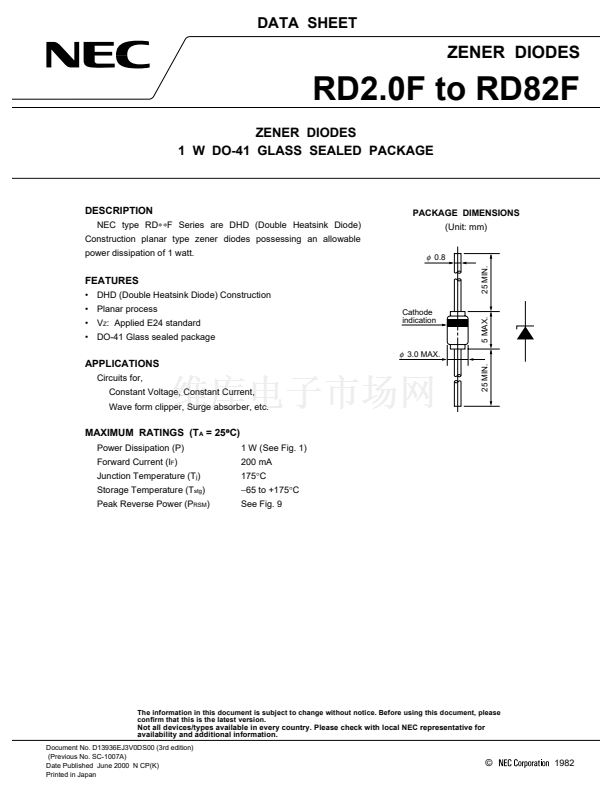

DATA SHEET

ZENER DIODES

RD2.0F to RD82F

ZENER DIODES

1 W DO-41 GLASS SEALED PACKAGE

DESCRIPTION

NEC type RD鈭椻垪F Series are DHD (Double Heatsink Diode)

Construction planar type zener diodes possessing an allowable

power dissipation of 1 watt.

PACKAGE DIMENSIONS

(Unit: mm)

蠁

0.8

FEATURES

鈥?DHD (Double Heatsink Diode) Construction

鈥?Planar process

鈥?V

Z

: Applied E24 standard

鈥?DO-41 Glass sealed package

蠁

3.0 MAX.

Circuits for,

Constant Voltage, Constant Current,

Wave form clipper, Surge absorber, etc.

MAXIMUM RATINGS (T

A

= 25擄C)

擄

Power Dissipation (P)

Forward Current (I

F

)

Junction Temperature (T

j

)

Storage Temperature (T

stg

)

Peak Reverse Power (P

RSM

)

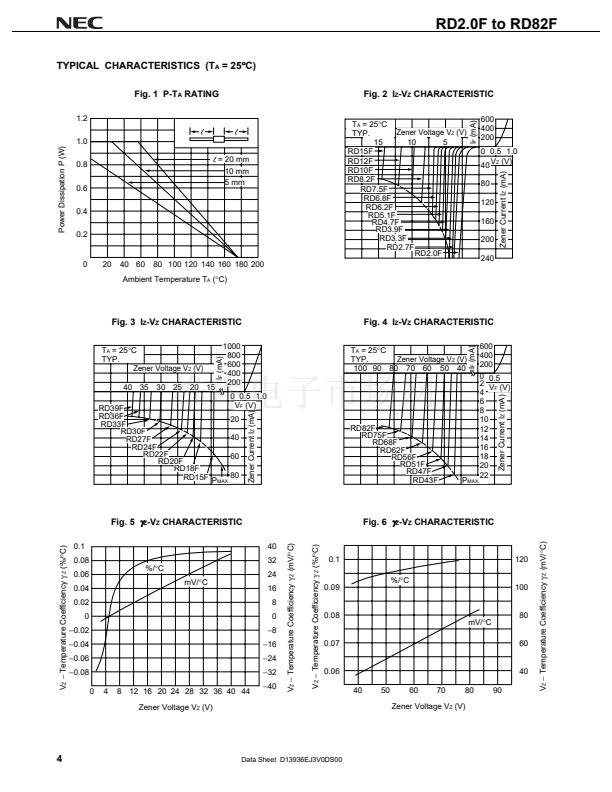

1 W (See Fig. 1)

200 mA

175擄C

鈭?5

to +175擄C

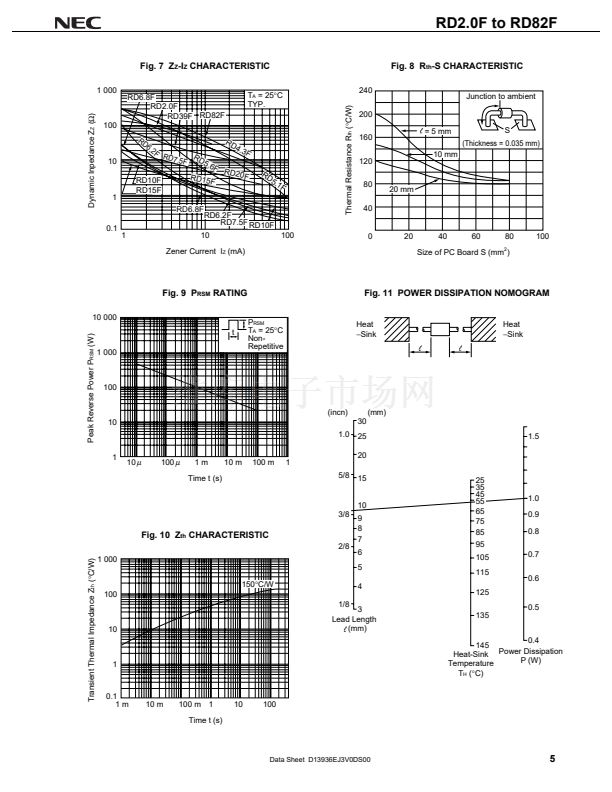

See Fig. 9

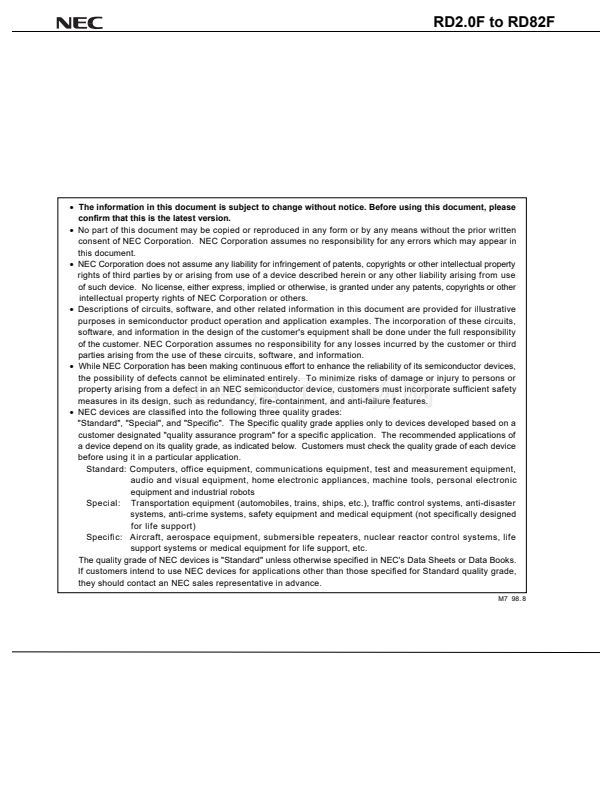

The information in this document is subject to change without notice. Before using this document, please

confirm that this is the latest version.

Not all devices/types available in every country. Please check with local NEC representative for

availability and additional information.

Document No. D13936EJ3V0DS00 (3rd edition)

(Previous No. SC-1007A)

Date Published June 2000 N CP(K)

Printed in Japan

25 MIN.

APPLICATIONS

5 MAX.

Cathode

indication

25 MIN.

漏

1982
