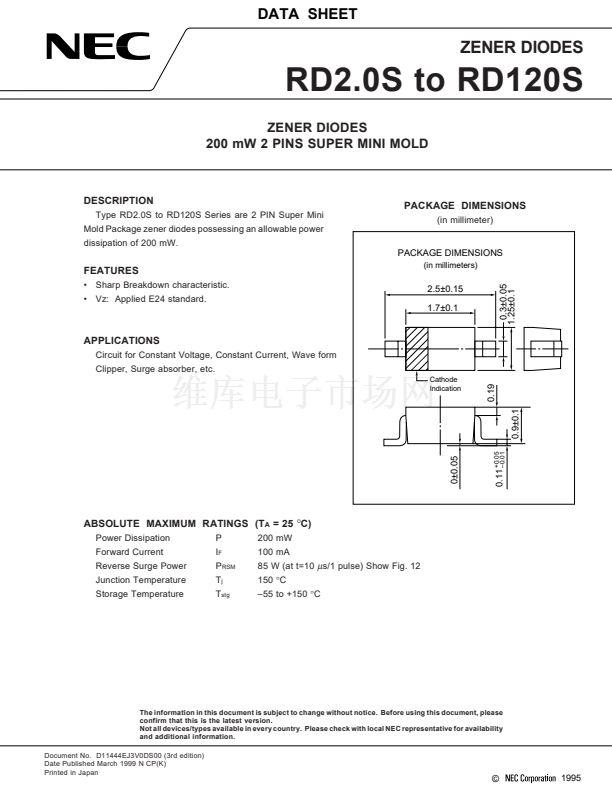

DATA SHEET

ZENER DIODES

RD2.0S to RD120S

ZENER DIODES

200 mW 2 PINS SUPER MINI MOLD

DESCRIPTION

Type RD2.0S to RD120S Series are 2 PIN Super Mini

Mold Package zener diodes possessing an allowable power

dissipation of 200 mW.

PACKAGE DIMENSIONS

(in millimeter)

PACKAGE DIMENSIONS

FEATURES

鈥?Sharp Breakdown characteristic.

鈥?Vz: Applied E24 standard.

(in millimeters)

2.5鹵0.15

1.7鹵0.1

APPLICATIONS

Circuit for Constant Voltage, Constant Current, Wave form

Clipper, Surge absorber, etc.

0.19

Cathode

Indication

ABSOLUTE MAXIMUM RATINGS (T

A

= 25

擄

C)

Power Dissipation

Forward Current

Reverse Surge Power

Junction Temperature

Storage Temperature

P

I

F

P

RSM

T

j

T

stg

200 mW

100 mA

85 W (at t=10

碌

s/1 pulse) Show Fig. 12

150

擄C

鈥?5 to +150

擄C

The information in this document is subject to change without notice. Before using this document, please

confirm that this is the latest version.

Not all devices/types available in every country. Please check with local NEC representative for availability

and additional information.

Document No. D11444EJ3V0DS00 (3rd edition)

Date Published March 1999 N CP(K)

Printed in Japan

漏

0.11

+0.05

鈥?.01

0鹵0.05

0.9鹵0.1

0.3鹵0.05

1.25鹵0.1

,,

,,,,

1995

next
