RCV420JP Datasheet

  • RCV420JP

  • Precision 4mA to 20mA CURRENT LOOP RECEIVER

  • 243.29KB

  • 10頁

  • BB

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

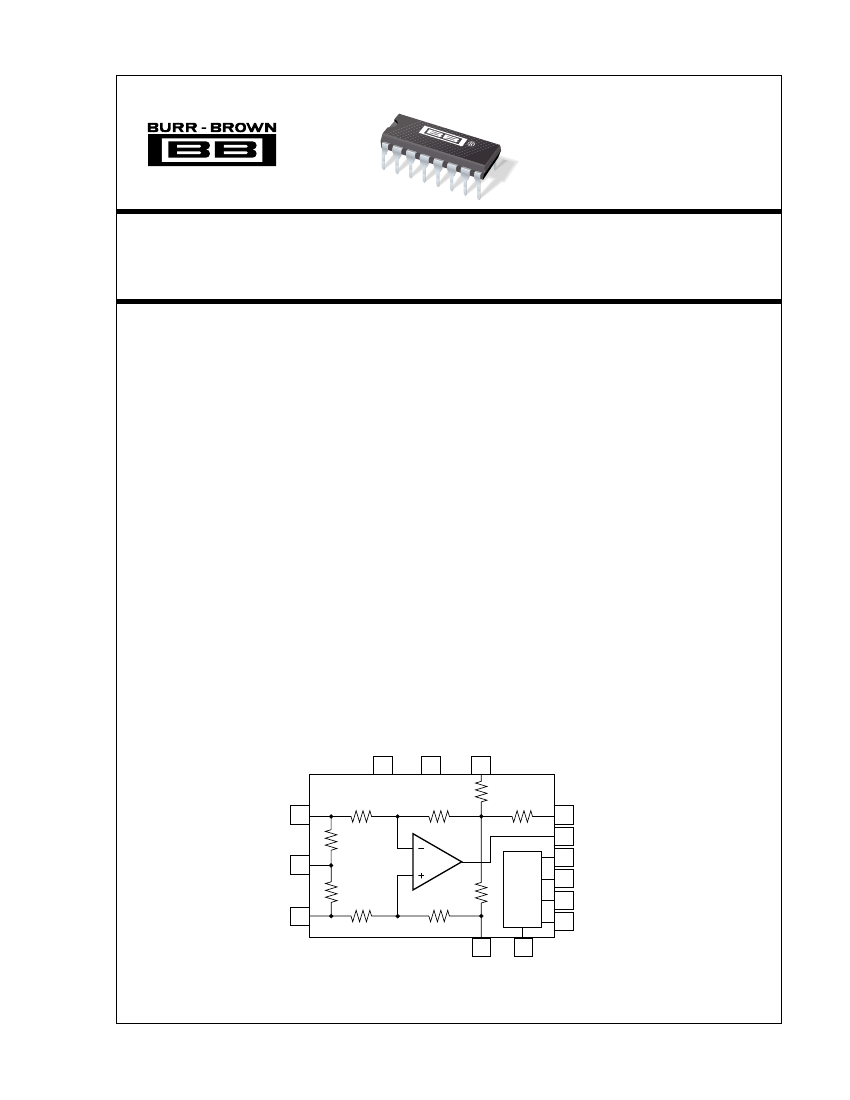

RCV
420

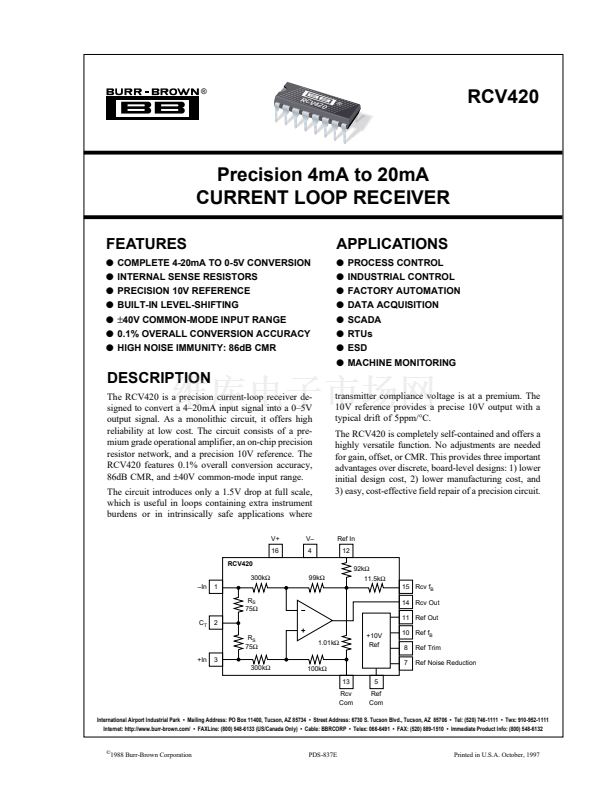

RCV420
Precision 4mA to 20mA
CURRENT LOOP RECEIVER
FEATURES
q
COMPLETE 4-20mA TO 0-5V CONVERSION
q
INTERNAL SENSE RESISTORS
q
PRECISION 10V REFERENCE
q
BUILT-IN LEVEL-SHIFTING
q
鹵
40V COMMON-MODE INPUT RANGE
q
0.1% OVERALL CONVERSION ACCURACY
q
HIGH NOISE IMMUNITY: 86dB CMR
APPLICATIONS
q
PROCESS CONTROL
q
INDUSTRIAL CONTROL
q
FACTORY AUTOMATION
q
DATA ACQUISITION
q
SCADA
q
RTUs
q
ESD
q
MACHINE MONITORING
DESCRIPTION
The RCV420 is a precision current-loop receiver de-
signed to convert a 4鈥?0mA input signal into a 0鈥?V
output signal. As a monolithic circuit, it offers high
reliability at low cost. The circuit consists of a pre-
mium grade operational amplifier, an on-chip precision
resistor network, and a precision 10V reference. The
RCV420 features 0.1% overall conversion accuracy,
86dB CMR, and
鹵40V
common-mode input range.
The circuit introduces only a 1.5V drop at full scale,
which is useful in loops containing extra instrument
burdens or in intrinsically safe applications where
V+
16
RCV420
300k鈩?/div>
鈥揑n
1
R
S
75鈩?/div>
C
T
2
R
S
75鈩?/div>
+In
3
300k鈩?/div>
100k鈩?/div>
13
Rcv
Com
5
Ref
Com
1.01k鈩?/div>
+10V
Ref
99k鈩?/div>
V鈥?/div>
4
transmitter compliance voltage is at a premium. The
10V reference provides a precise 10V output with a
typical drift of 5ppm/擄C.
The RCV420 is completely self-contained and offers a
highly versatile function. No adjustments are needed
for gain, offset, or CMR. This provides three important
advantages over discrete, board-level designs: 1) lower
initial design cost, 2) lower manufacturing cost, and
3) easy, cost-effective field repair of a precision circuit.
Ref In
12
92k鈩?/div>
11.5k鈩?/div>
15 Rcv f
B
14 Rcv Out
11 Ref Out
10 Ref f
B
8
7
Ref Trim
Ref Noise Reduction
International Airport Industrial Park 鈥?Mailing Address: PO Box 11400, Tucson, AZ 85734 鈥?Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 鈥?Tel: (520) 746-1111 鈥?Twx: 910-952-1111
Internet: http://www.burr-brown.com/ 鈥?FAXLine: (800) 548-6133 (US/Canada Only) 鈥?Cable: BBRCORP 鈥?Telex: 066-6491 鈥?FAX: (520) 889-1510 鈥?Immediate Product Info: (800) 548-6132
廬
漏
1988 Burr-Brown Corporation
PDS-837E
1
Printed in U.S.A. October, 1997
RCV420

RCV420JP 產品屬性

  • 25

  • 集成電路 (IC)

  • Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps

  • -

  • 通用

  • 1

  • -

  • 1.5 V/µs

  • 150kHz

  • -

  • -

  • 1000µV

  • 3mA

  • 10mA

  • ±5 V ~ 18 V

  • 0°C ~ 70°C

  • 通孔

  • 16-DIP（0.300"，7.62mm）

  • 16-PDIP

  • 管件

  • Q782291
