RB520S30T1
Schottky Barrier Diode
These Schottky barrier diodes are designed for high speed switching
applications, circuit protection, and voltage clamping. Extremely low
forward voltage reduces conduction loss. Miniature surface mount
package is excellent for hand held and portable applications where
space is limited.
鈥?/div>
Extremely Fast Switching Speed
鈥?/div>
Extremely Low Forward Voltage 0.6 V (max) @ I
F
= 200 mA
鈥?/div>
Low Reverse Current
MAXIMUM RATINGS
Rating
Reverse Voltage
Forward Current DC
ESD Rating: Class 3B per Human Body Model
ESD Rating:
Class C per Machine Model
Symbol
V
R
I
F
Value
30
200
Unit
Vdc
mA
http://onsemi.com
30 V SCHOTTKY
BARRIER DIODE
1
CATHODE
2
ANODE
THERMAL CHARACTERISTICS
Characteristic
Total Device Dissipation FR鈭? Board,
(Note 1) T
A
= 25擄C
Derate above 25擄C
Thermal Resistance Junction to Ambient
Junction and Storage
Temperature Range
1. FR鈭? Minimum Pad
Symbol
P
D
Max
200
1.57
R
qJA
T
J
, T
stg
635
鈭?5 to
+150
Unit
mW
mW/擄C
擄C/W
擄C
1
2

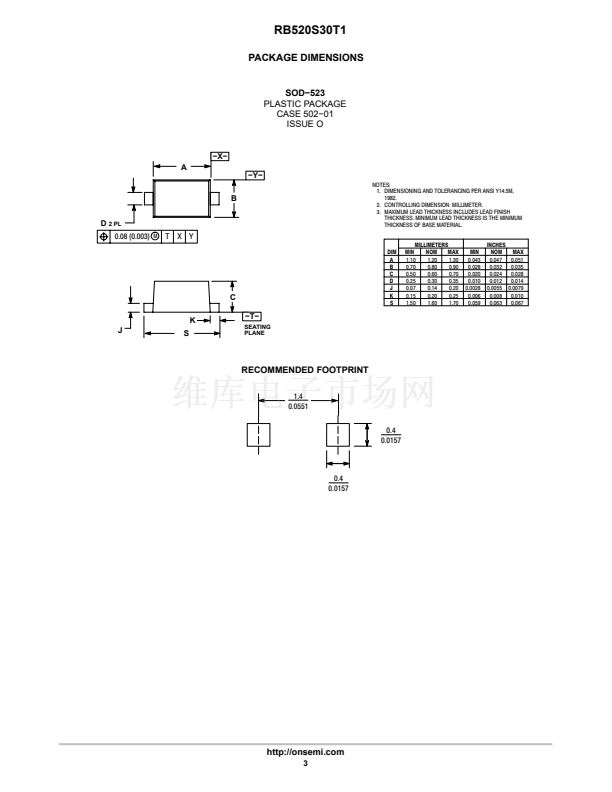

SOD鈭?23
CASE 502
PLASTIC
MARKING DIAGRAM
ELECTRICAL CHARACTERISTICS
(T
A
= 25擄C unless otherwise noted)
Characteristic
Reverse Leakage
(V
R
= 10 V)
Forward Voltage
(I
F
= 200 mA)
Symbol
I
R
V
F
Min
鈭?/div>
鈭?/div>
Typ
鈭?/div>
鈭?/div>
Max
1.0
0.60
Unit
mA
Vdc
5J
d
5J
d
= Specific Device Code
= Date Code
ORDERING INFORMATION
Device
RB520S30T1
RB520S30T5
Package
SOD鈭?23
SOD鈭?23
Shipping鈥?/div>
4 mm Pitch
3000/Tape & Reel
2 mm Pitch
8000/Tape & Reel
鈥燜or information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
漏
Semiconductor Components Industries, LLC, 2003
1
November, 2003 鈭?Rev. 4
Publication Order Number:
RB520S30T1/D
