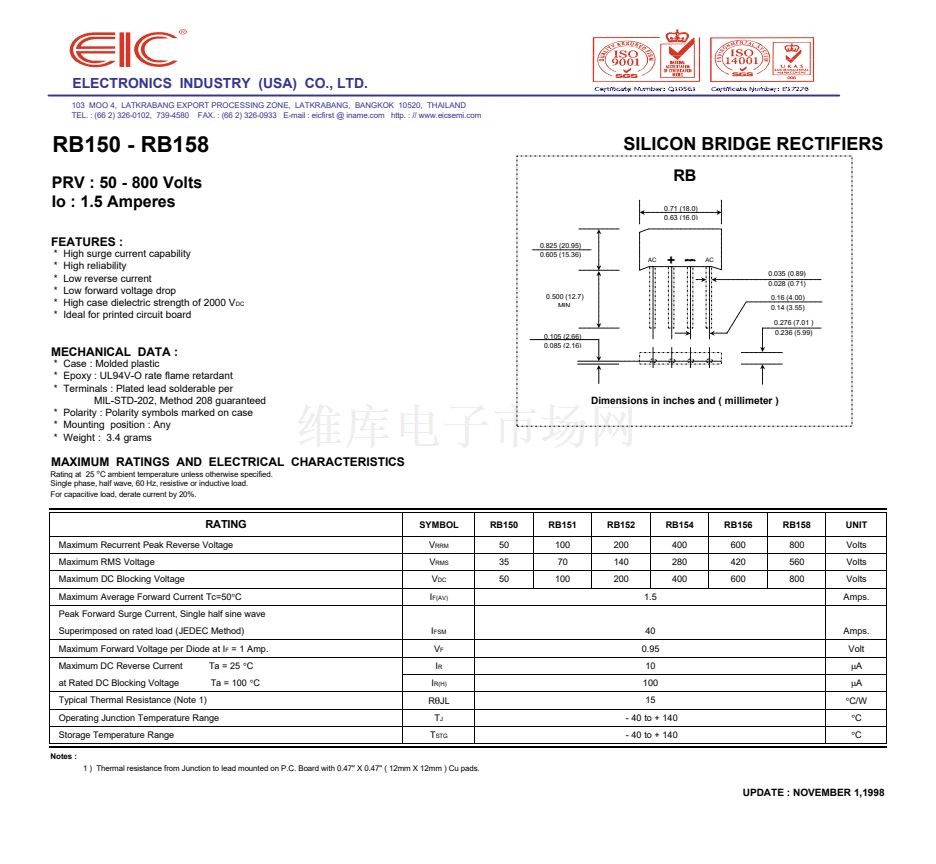

RB150 - RB158
PRV : 50 - 800 Volts
Io : 1.5 Amperes
FEATURES :
*
*
*
*
*
*
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
High case dielectric strength of 2000 V
DC
Ideal for printed circuit board
0.825 (20.95)
0.605 (15.36)
SILICON BRIDGE RECTIFIERS
RB
0.71 (18.0)
0.63 (16.0)
AC
+
AC
0.035 (0.89)
0.028 (0.71)
0.500 (12.7)
MIN.
0.16 (4.00)
0.14 (3.55)
0.276 (7.01 )
0.236 (5.99)
MECHANICAL DATA :
* Case : Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Terminals : Plated lead solderable per
MIL-STD-202, Method 208 guaranteed
* Polarity : Polarity symbols marked on case
* Mounting position : Any
* Weight : 3.4 grams
Rating at 25
擄
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
0.105 (2.66)
0.085 (2.16)
Dimensions in inches and ( millimeter )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
RATING
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current Tc=50擄C
Peak Forward Surge Current, Single half sine wave
Superimposed on rated load (JEDEC Method)
Maximum Forward Voltage per Diode at I
F
= 1 Amp.
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Typical Thermal Resistance (Note 1)
Operating Junction Temperature Range
Storage Temperature Range
Notes :
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
RB150
50
35
50
RB151
100
70
100
RB152
200
140
200
1.5
RB154
400
280
400
RB156
600
420
600
RB158
800
560
800
UNIT
Volts
Volts
Volts
Amps.
I
FSM
V
F
I
R
I
R(H)
R
胃
JL
T
J
T
STG
40
0.95
10
100
15
- 40 to + 140
- 40 to + 140
Amps.
Volt
碌A(chǔ)
碌A(chǔ)
擄C/W
擄C
擄C
Ta = 25
擄C
Ta = 100
擄C
1 ) Thermal resistance from Junction to lead mounted on P.C. Board with 0.47" X 0.47" ( 12mm X 12mm ) Cu pads.
UPDATE : NOVEMBER 1,1998
