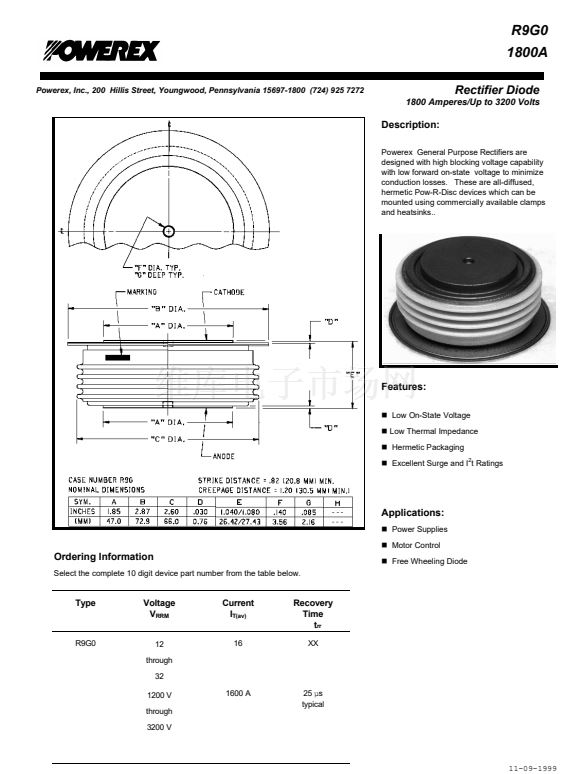

R9G0

1800A

Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925 7272

Rectifier Diode

1800 Amperes/Up to 3200 Volts

Description:

Powerex General Purpose Rectifiers are

designed with high blocking voltage capability

with low forward on-state voltage to minimize

conduction losses. These are all-diffused,

hermetic Pow-R-Disc devices which can be

mounted using commercially available clamps

and heatsinks..

Features:

n

Low On-State Voltage

n

Low Thermal Impedance

n

Hermetic Packaging

n

Excellent Surge and I t Ratings

2

Applications:

n

Power Supplies

n

Motor Control

Ordering Information

Select the complete 10 digit device part number from the table below.

n

Free Wheeling Diode

Type

Voltage

V

RRM

Current

I

T(av)

16

Recovery

Time

t

rr

XX

R9G0

12

through

32

1200 V

through

3200 V

1600 A

25

碌

s

typical

11-09-1999
