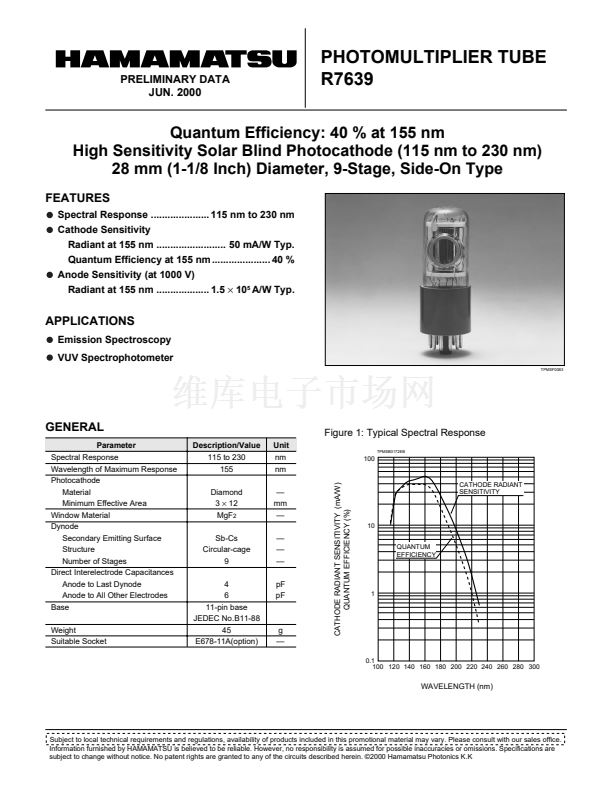

High Sensitivity Solar Blind Photocathode (115 nm to 230 nm)
28 mm (1-1/8 Inch) Diameter, 9-Stage, Side-On Type
FEATURES
Spectral Response ..................... 115 nm to 230 nm
Cathode Sensitivity
Radiant at 155 nm ......................... 50 mA/W Typ.
Quantum Efficiency at 155 nm ..................... 40 %
Anode Sensitivity (at 1000 V)
Radiant at 155 nm ................... 1.5
脳
10
5
A/W Typ.
APPLICATIONS
Emission Spectroscopy
VUV Spectrophotometer
TPMSF0083
GENERAL
Parameter
Spectral Response
Wavelength of Maximum Response
Photocathode
Material
Minimum Effective Area
Window Material
Dynode
Secondary Emitting Surface
Structure
Number of Stages
Direct Interelectrode Capacitances
Anode to Last Dynode
Anode to All Other Electrodes
Base
Weight
Suitable Socket
Description/Value
115 to 230
155
Diamond
3
脳
12
MgF
2
Sb-Cs
Circular-cage
9
4
6
11-pin base
JEDEC No.B11-88
45
E678-11A(option)
Unit
nm
nm
鈥?/div>
mm
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
pF
pF
Figure 1: Typical Spectral Response
TPMSB0172EB
100
CATHODE RADIANT SENSITIVITY (mA/W)
QUANTUM EFFICIENCY (%)
CATHODE RADIANT
SENSITIVITY
10
QUANTUM
EFFICIENCY
1
g
鈥?/div>
0.1
100 120 140 160 180 200 220 240 260 280 300
WAVELENGTH (nm)
