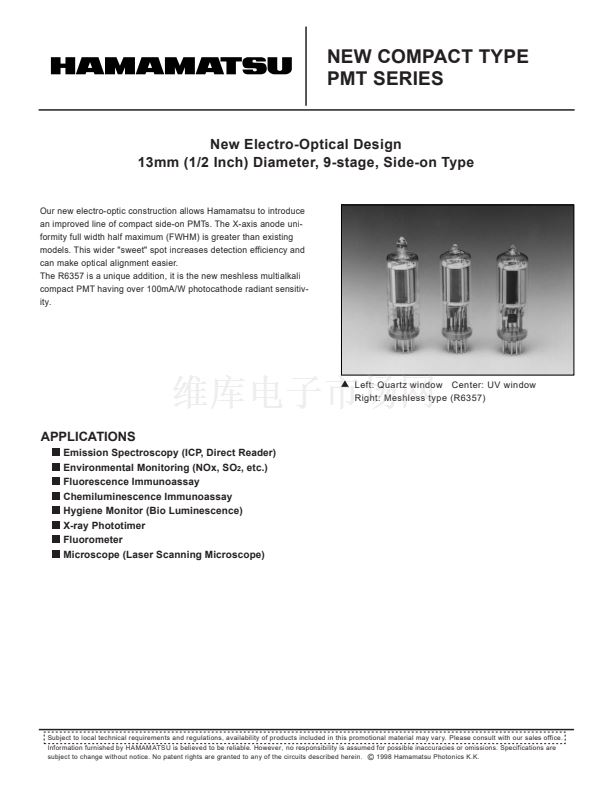

NEW COMPACT TYPE
PMT SERIES
New Electro-Optical Design
13mm (1/2 Inch) Diameter, 9-stage, Side-on Type
Our new electro-optic construction allows Hamamatsu to introduce
an improved line of compact side-on PMTs. The X-axis anode uni-
formity full width half maximum (FWHM) is greater than existing
models. This wider "sweet" spot increases detection efficiency and
can make optical alignment easier.
The R6357 is a unique addition, it is the new meshless multialkali
compact PMT having over 100mA/W photocathode radiant sensitiv-
ity.
Left: Quartz window Center: UV window
Right: Meshless type (R6357)
APPLICATIONS
Emission Spectroscopy (ICP, Direct Reader)
Environmental Monitoring (NOx, SO
2
, etc.)
Fluorescence Immunoassay
Chemiluminescence Immunoassay
Hygiene Monitor (Bio Luminescence)
X-ray Phototimer
Fluorometer
Microscope (Laser Scanning Microscope)
Subject to local technical requirements and regulations, availability of products included in this promotional material may vary. Please consult with our sales office.
Information furnished by HAMAMATS U is believed to be reliable. However, no responsibility is assumed for possible inaccuracies or omissions. Specifications are
subject to change without notice. No patent rights are granted to any of the circuits described herein.
漏
1998 Hamamatsu Photonics K.K.
