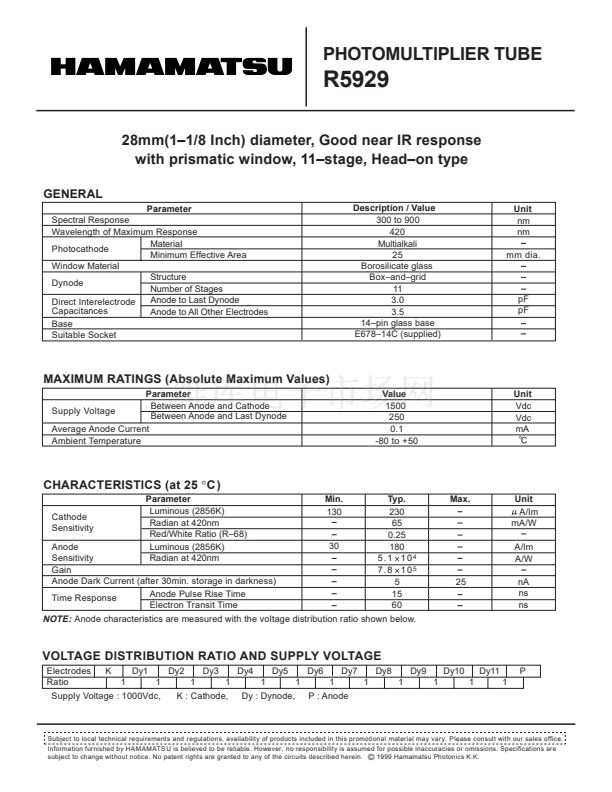

PHOTOMULTlPLlER TUBE
R5929
28mm(1鈥?/8 Inch) diameter, Good near IR response
with prismatic window, 11鈥搒tage, Head鈥搊n type
GENERAL
Parameter
Spectral Response
Wavelength of Maximum Response
MateriaI
Photocathode
Minimum Effective Area
Window MateriaI
Structure
Dynode
Number of Stages
Anode to Last Dynode
Direct Interelectrode
Capacitances
Anode to All Other Electrodes
Base
Suitable Socket
Description / Value
300 to 900
420
Multialkali
25
Borosilicate glass
Box鈥揳nd鈥揼rid
11
3.0
3.5
14鈥損in glass base
E678鈥?4C (supplied)
Unit
nm
nm
mm dia.
pF
pF
MAXIMUM RATINGS (Absolute Maximum Values)
Parameter
Between Anode and Cathode
Supply Voltage
Between Anode and Last Dynode
Average Anode Current
Ambient Temperature
Value
1500
250
0.1
-80 to +50
Unit
Vdc
Vdc
mA
CHARACTERISTlCS (at 25
擄C
)
Cathode
Sensitivity
Parameter
Luminous (2856K)
Radian at 420nm
Red/White Ratio (R鈥?8)
Luminous (2856K)
Radian at 420nm
Min.
130
Typ.
230
65
0.25
180
5.1 10
4
7.8 10
5
5
15
60
Max.
Unit
A/lm
mA/W
A/lm
A/W
25
nA
ns
ns
Anode
Sensitivity
Gain
Anode Dark Current (after 30min. storage in darkness)
Anode Pulse Rise Time
Time Response
Electron Transit Time
30
NOTE:
Anode characteristics are measured with the voItage distribution ratio shown below.
VOLTAGE DlSTRlBUTlON RATlO AND SUPPLY VOLTAGE
K
Dy1
Dy2
Dy3
Dy4
Dy5
Dy6
Dy7
Dy8
Dy9
Dy10
Dy11
Electrodes
Ratio
1
1
1
1
1
1
1
1
1
1
1
1
SuppIy Voltage : 1000Vdc,
K : Cathode, Dy : Dynode, P : Anode
P
