Luminous (2856 K)
Blue (CS - 5 - 58 filter)
Luminous (2856 K)

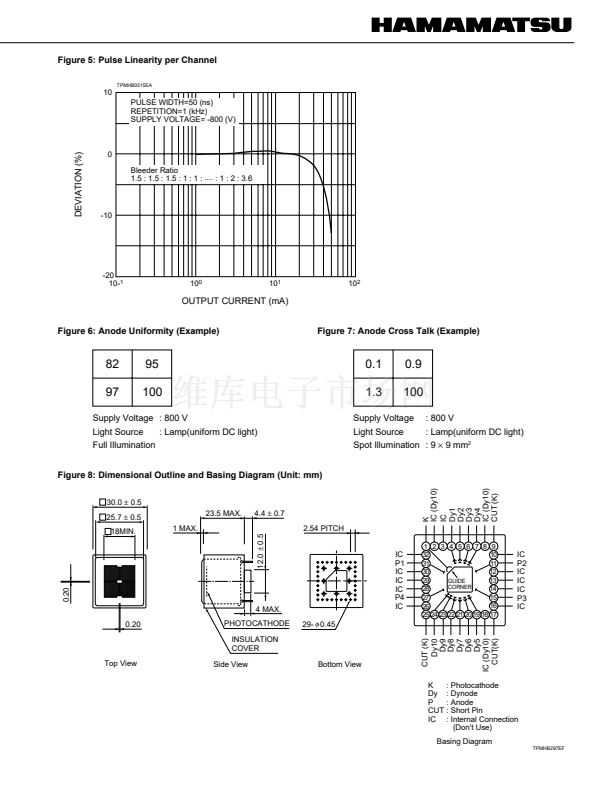

Pulse Linearity per Channel (
鹵
2 % deviation)
Cross - talk (9
脳
9 mm Aperture)
Uniformity Between Each Anode
NOTE :
Anode characteristics are measured with the voltage distribution ration A shown below.
a
: Measured with the special voltage distribution ratio B (Tapered Bleeder) shown below.
VOLTAGE DISTRIBUTION RATIO AND SUPPLY VOLTAGE
Electrodes
Ratio A
Ratio B (Tapered Bleeder)
K
1.5
1.5
Dy1
1.5
1.5
Dy2
1.5
1.5
Dy3
1
1
Dy4
1
1
Dy5
1
1
Dy6
1
1
Dy7
1
1
Dy8
1
1
Dy9
1
2
Dy10
1
3.6
P
Supply Voltage: 800 Vdc, K: Cathode, Dy: Dynode, P: Anode
