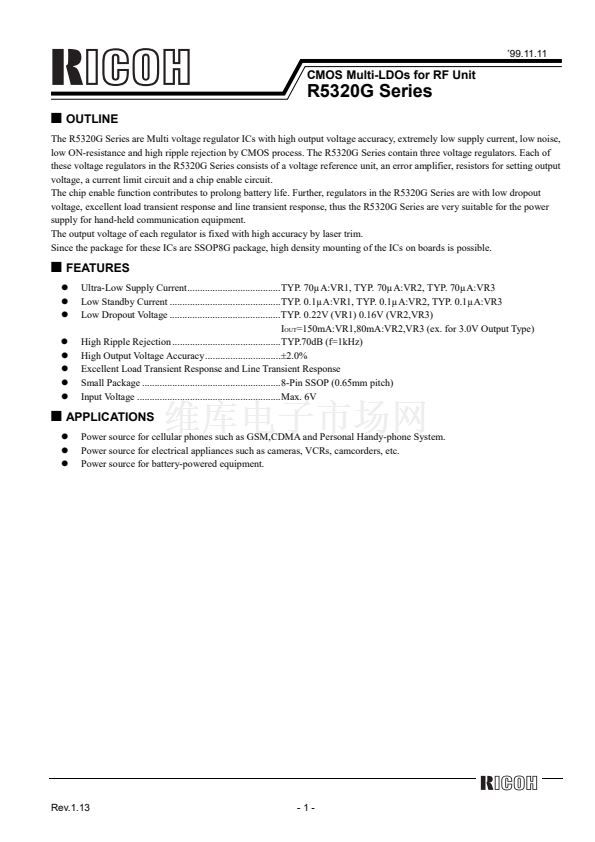

CMOS Multi-LDOs for RF Unit

R5320G Series

OUTLINE

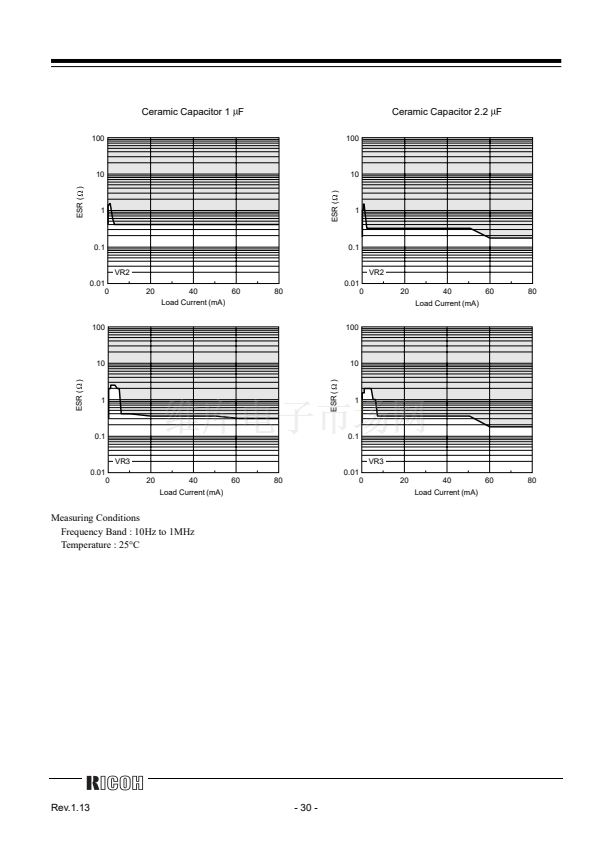

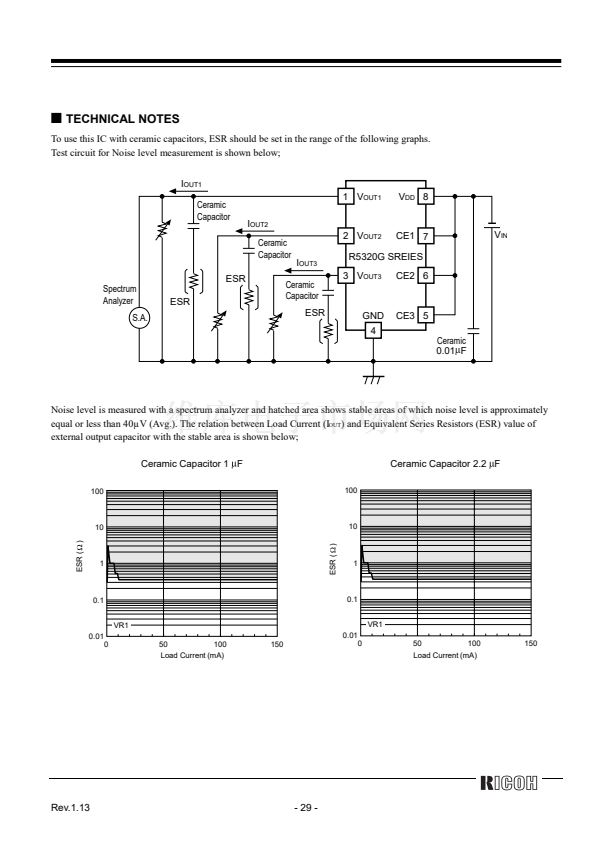

The R5320G Series are Multi voltage regulator ICs with high output voltage accuracy, extremely low supply current, low noise,

low ON-resistance and high ripple rejection by CMOS process. The R5320G Series contain three voltage regulators. Each of

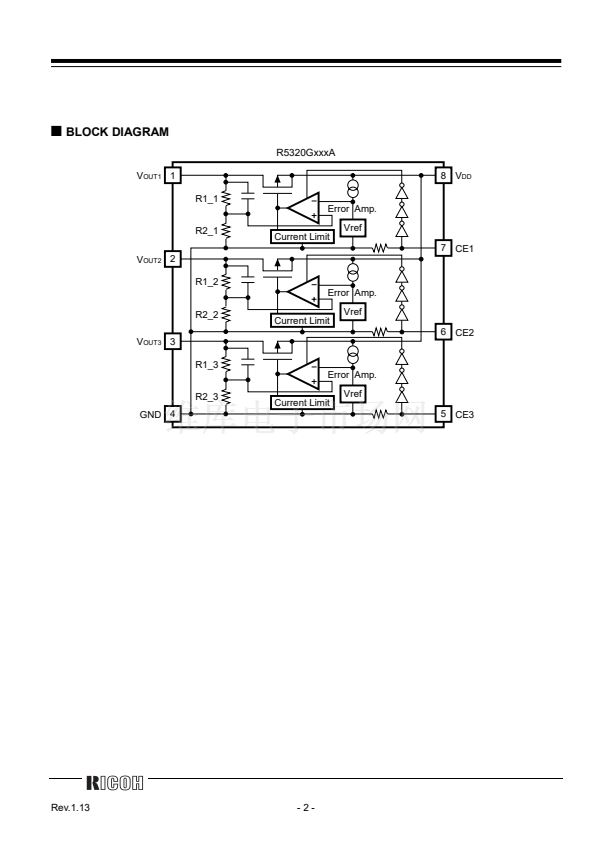

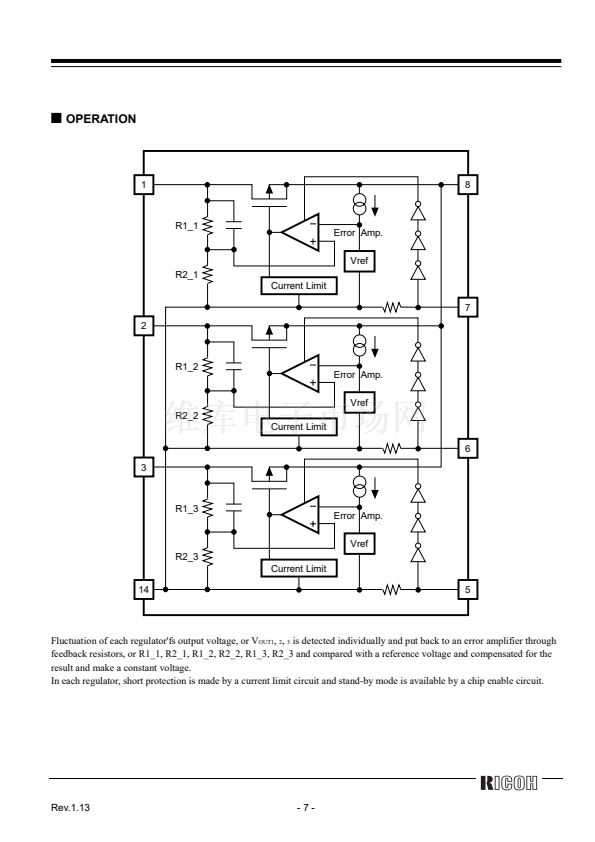

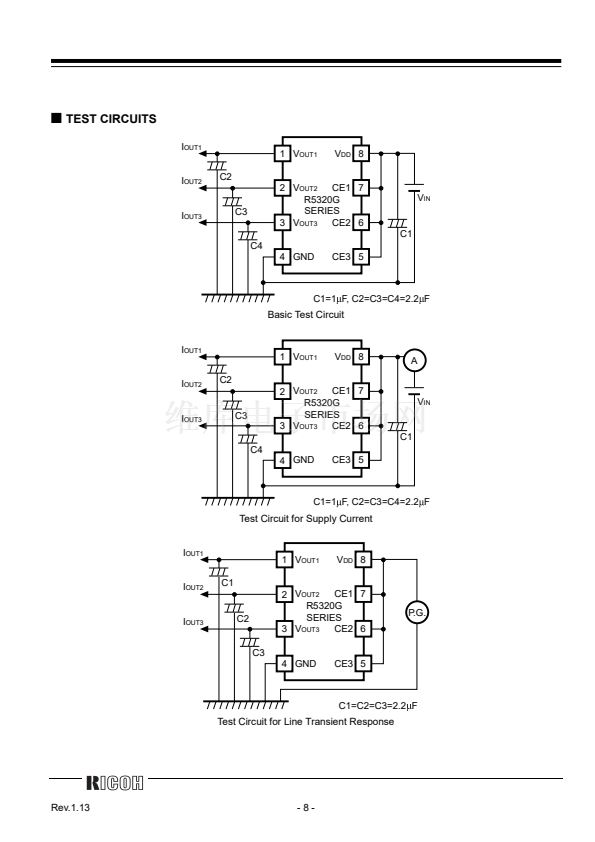

these voltage regulators in the R5320G Series consists of a voltage reference unit, an error amplifier, resistors for setting output

voltage, a current limit circuit and a chip enable circuit.

The chip enable function contributes to prolong battery life. Further, regulators in the R5320G Series are with low dropout

voltage, excellent load transient response and line transient response, thus the R5320G Series are very suitable for the power

supply for hand-held communication equipment.

The output voltage of each regulator is fixed with high accuracy by laser trim.

Since the package for these ICs are SSOP8G package, high density mounting of the ICs on boards is possible.

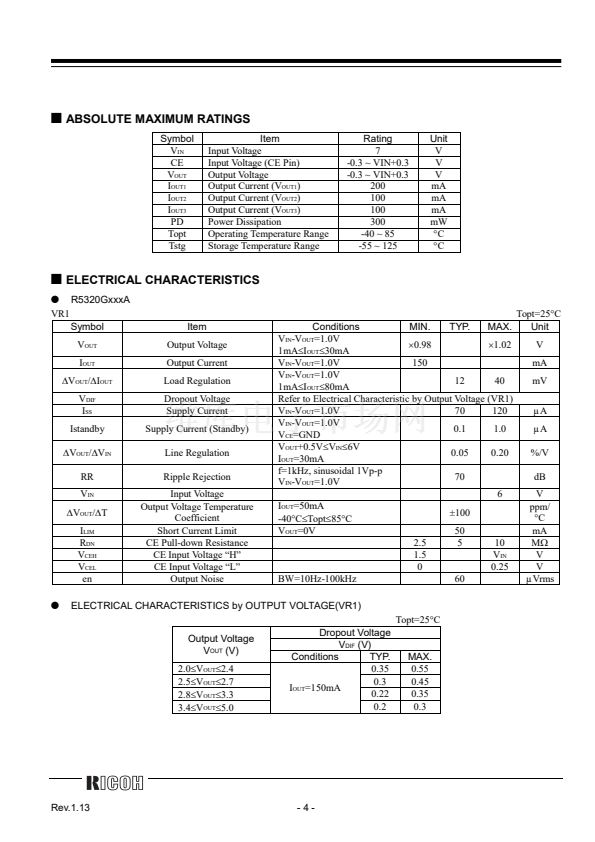

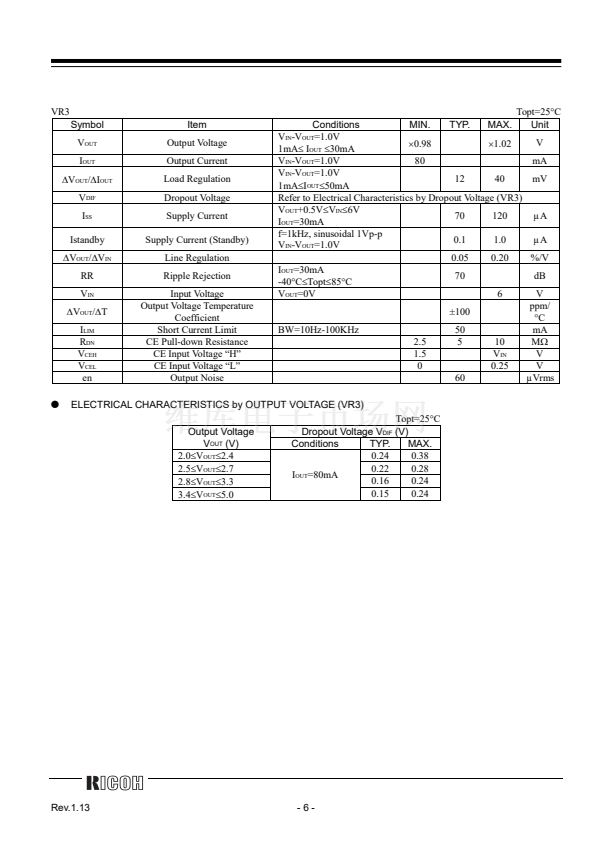

FEATURES

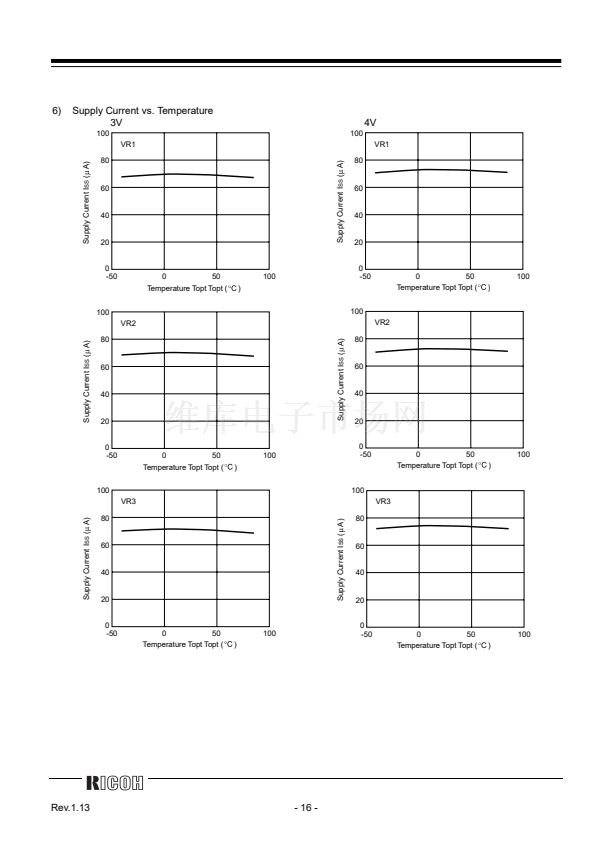

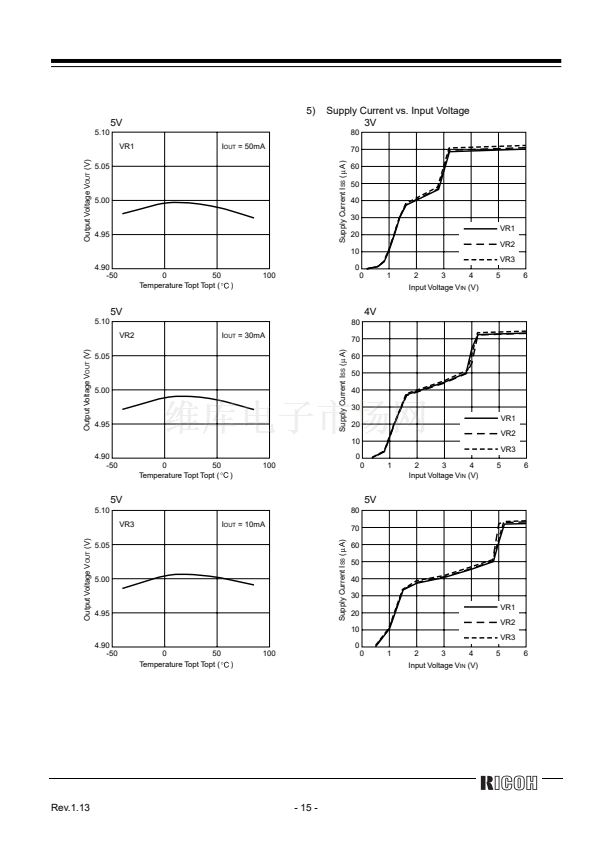

Ultra-Low Supply Current.....................................TYP. 70碌A(chǔ):VR1, TYP. 70碌A(chǔ):VR2, TYP. 70碌A(chǔ):VR3

Low Standby Current ............................................TYP. 0.1碌A(chǔ):VR1, TYP. 0.1碌A(chǔ):VR2, TYP. 0.1碌A(chǔ):VR3

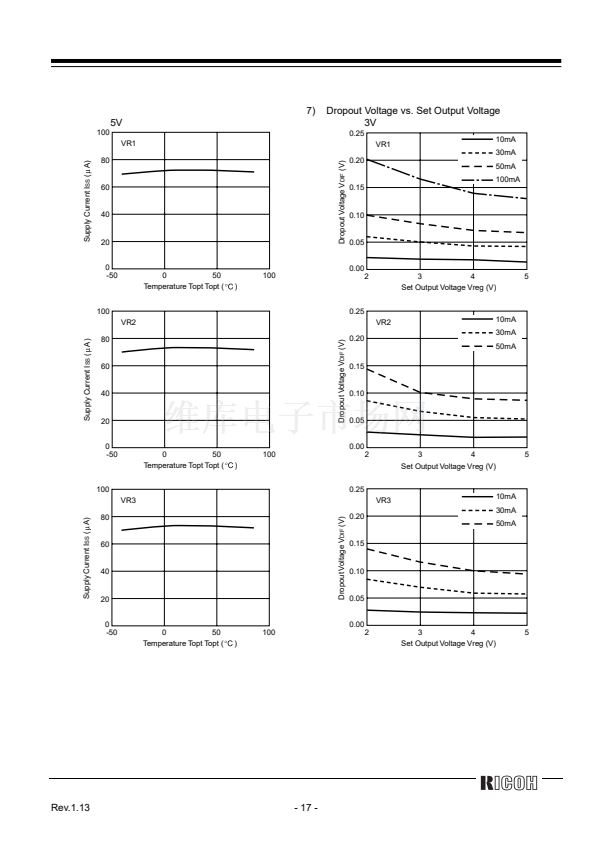

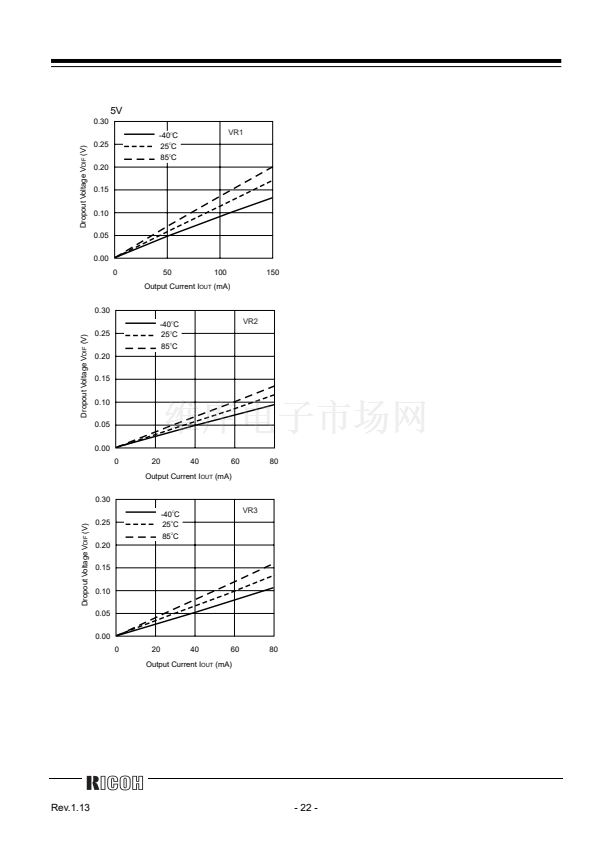

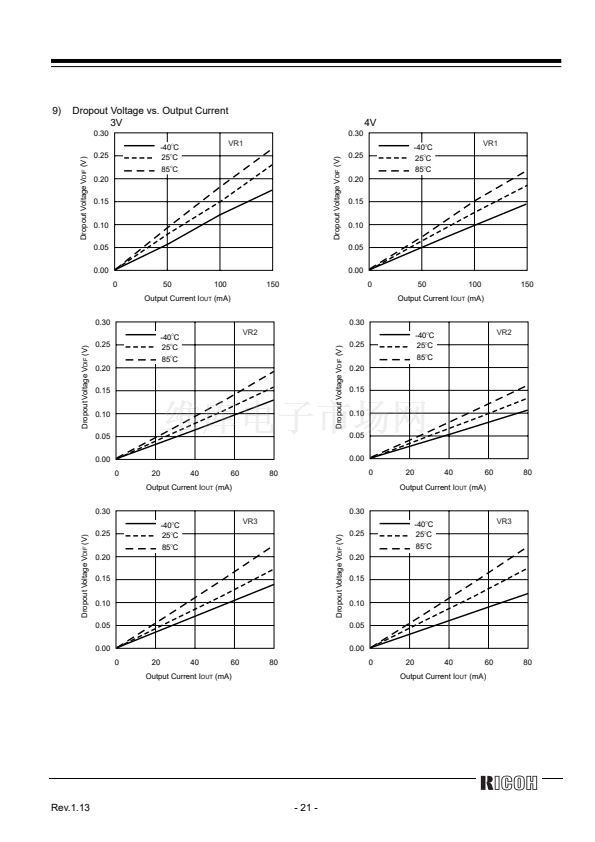

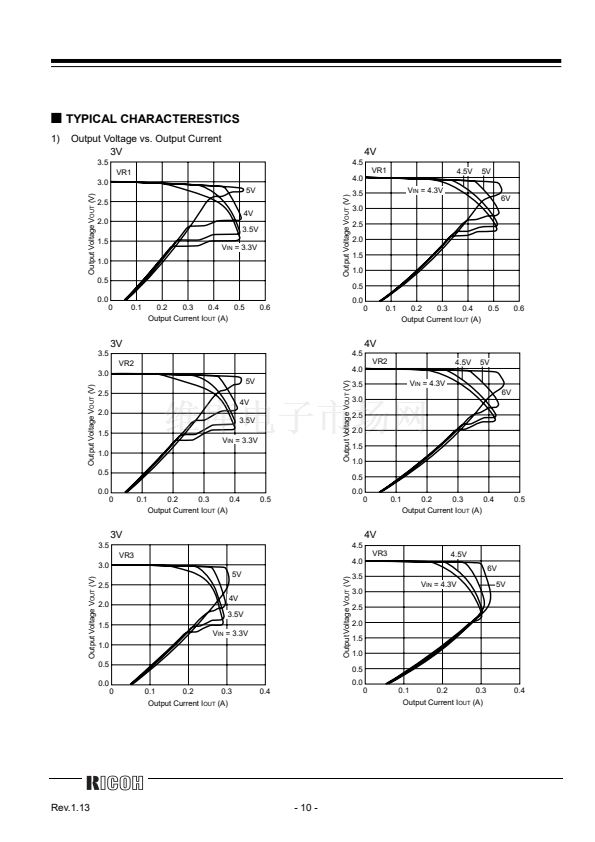

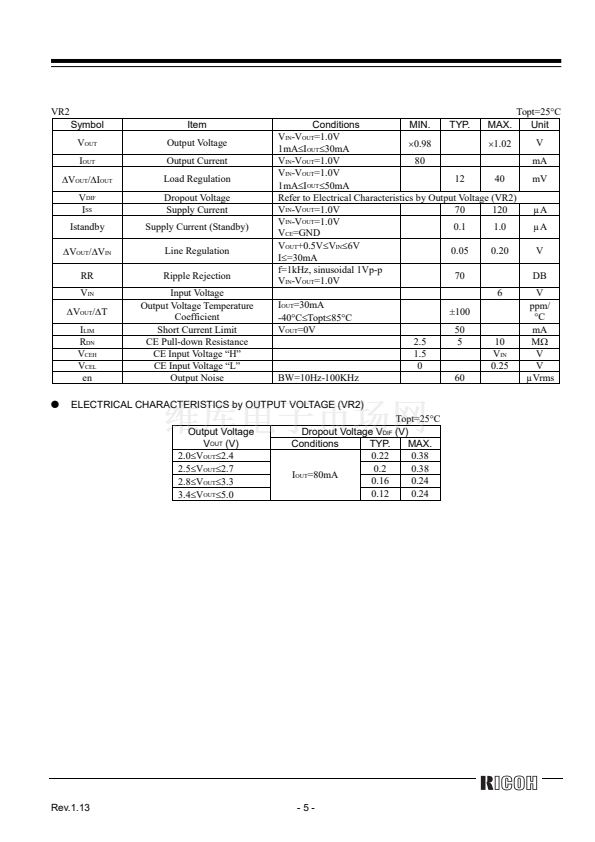

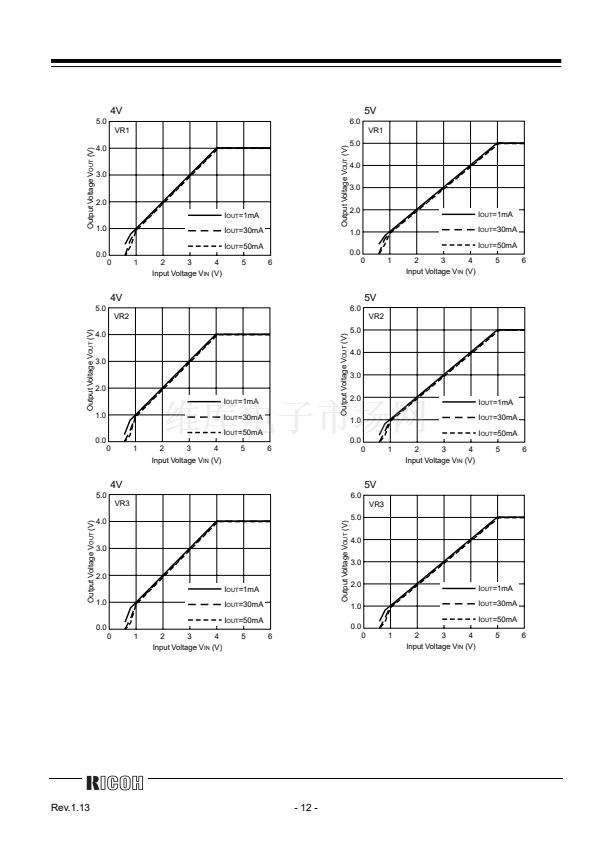

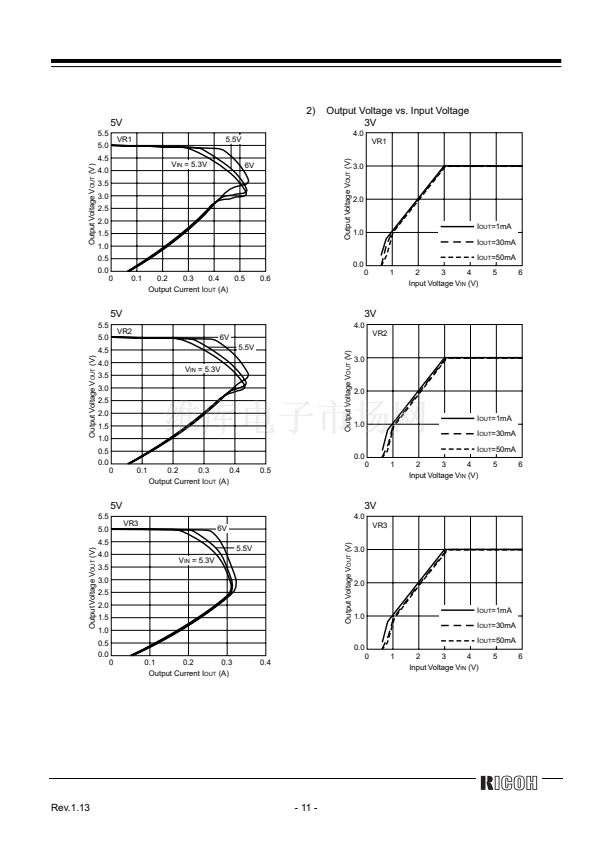

Low Dropout Voltage ............................................TYP. 0.22V (VR1) 0.16V (VR2,VR3)

OUT

=150mA:VR1,80mA:VR2,VR3 (ex. for 3.0V Output Type)

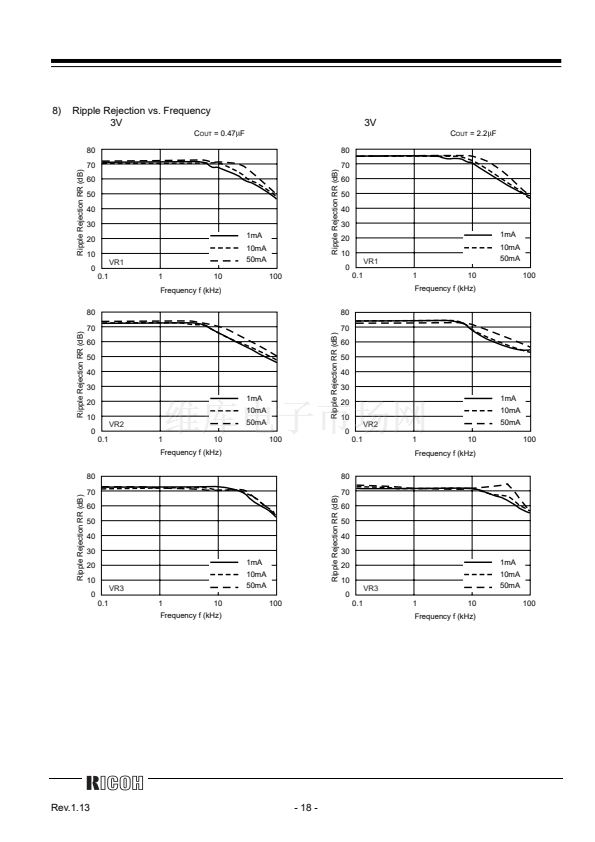

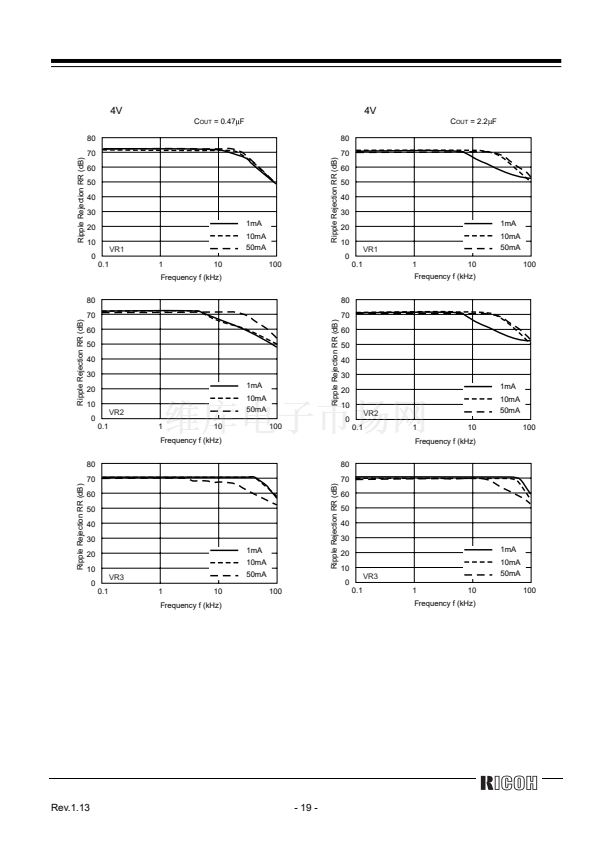

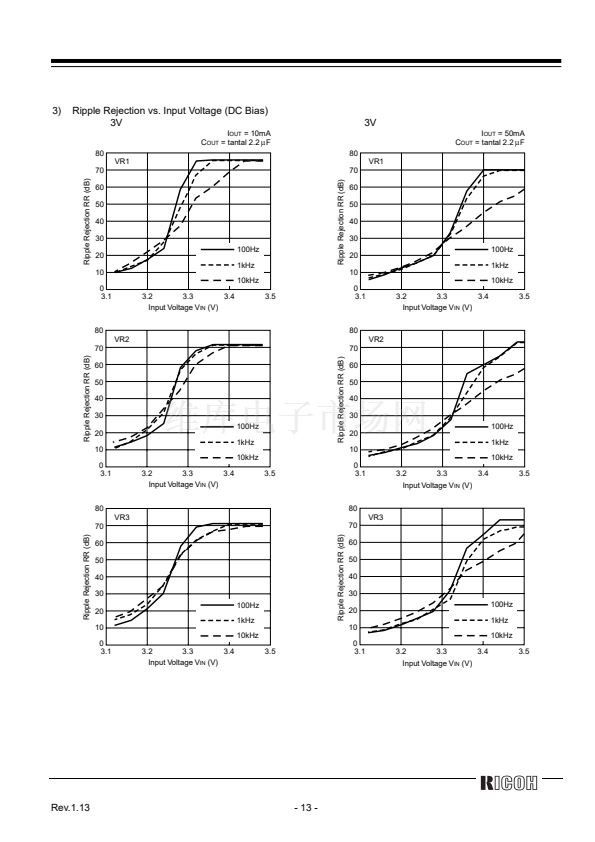

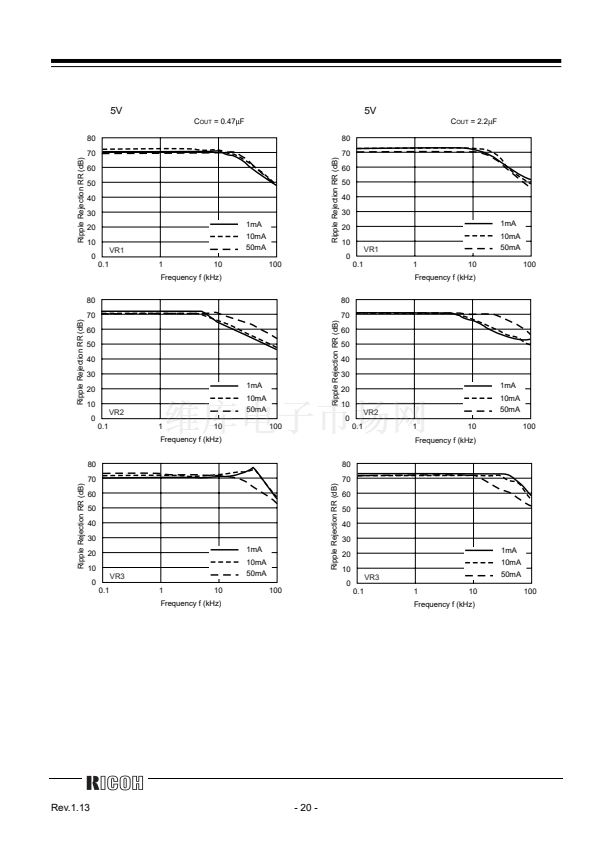

High Ripple Rejection ...........................................TYP.70dB (f=1kHz)

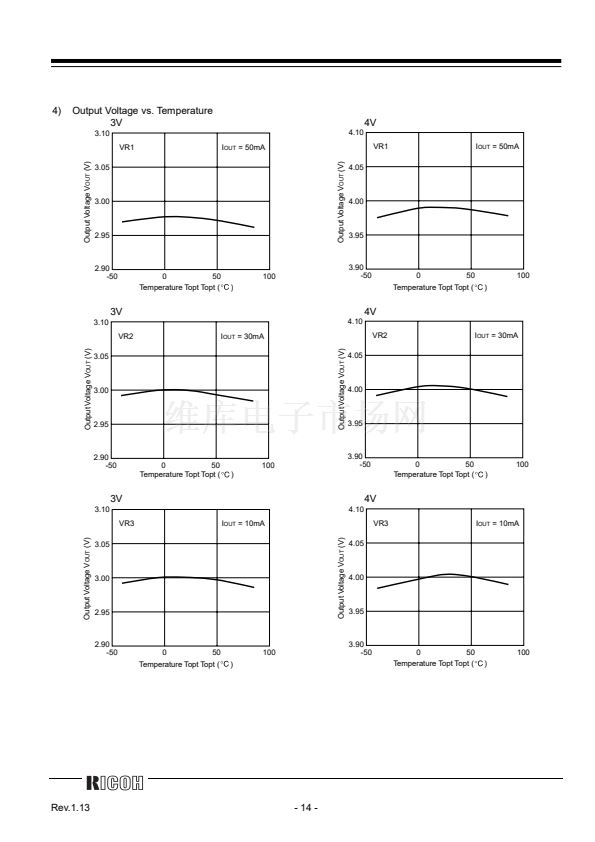

High Output Voltage Accuracy..............................鹵2.0%

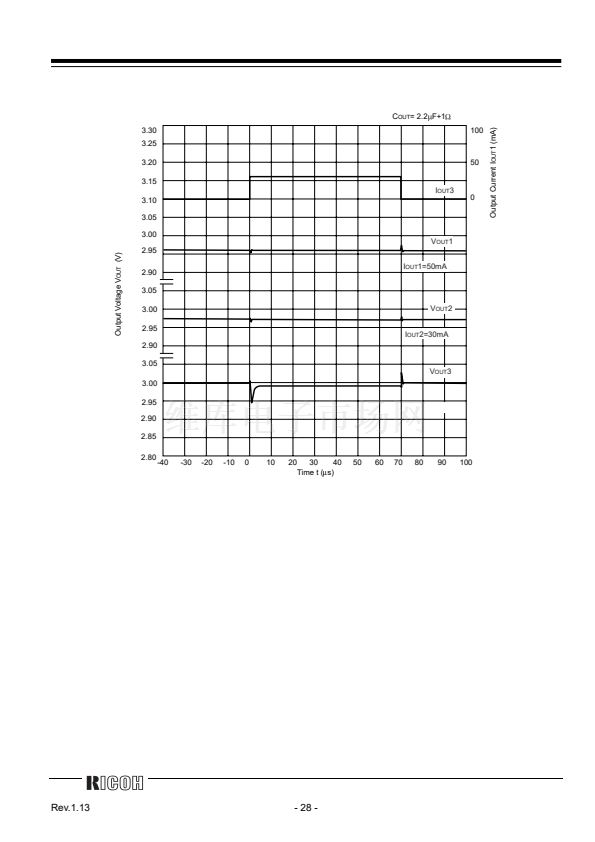

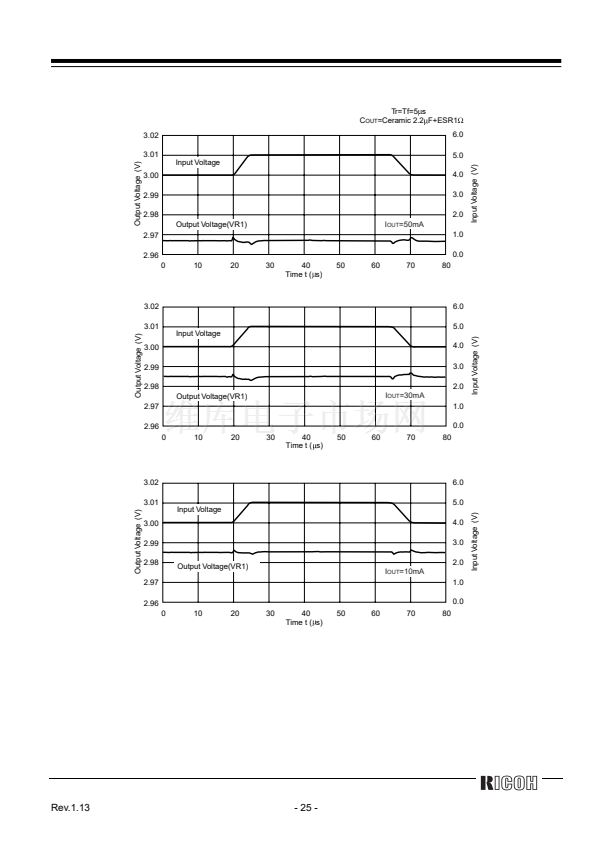

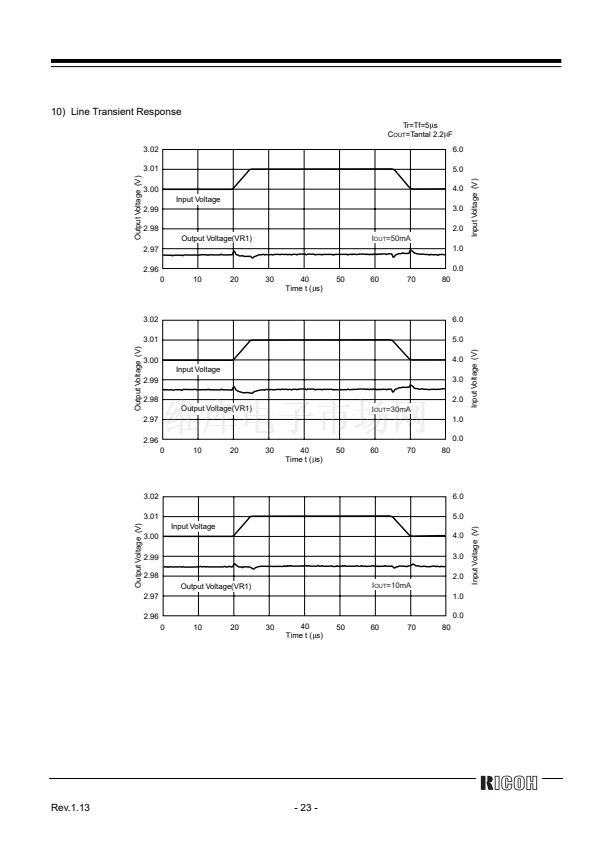

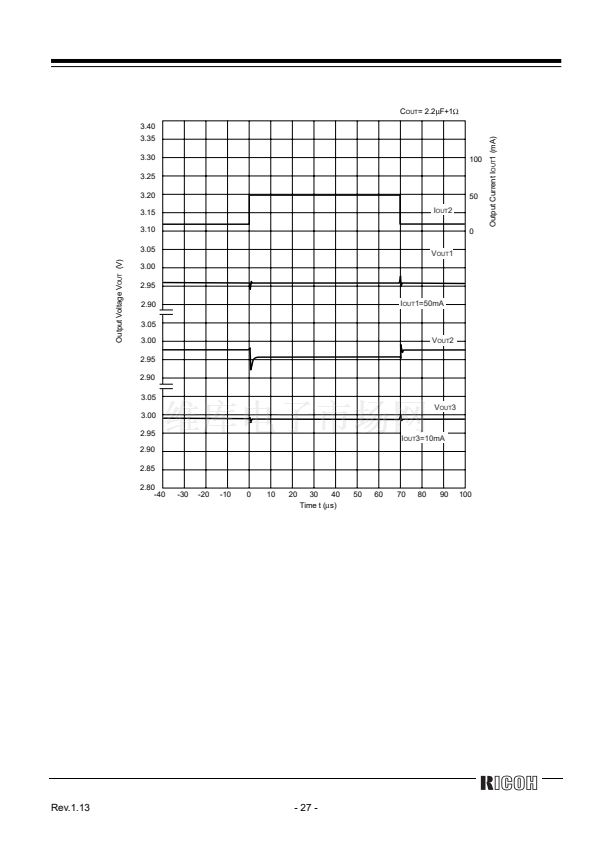

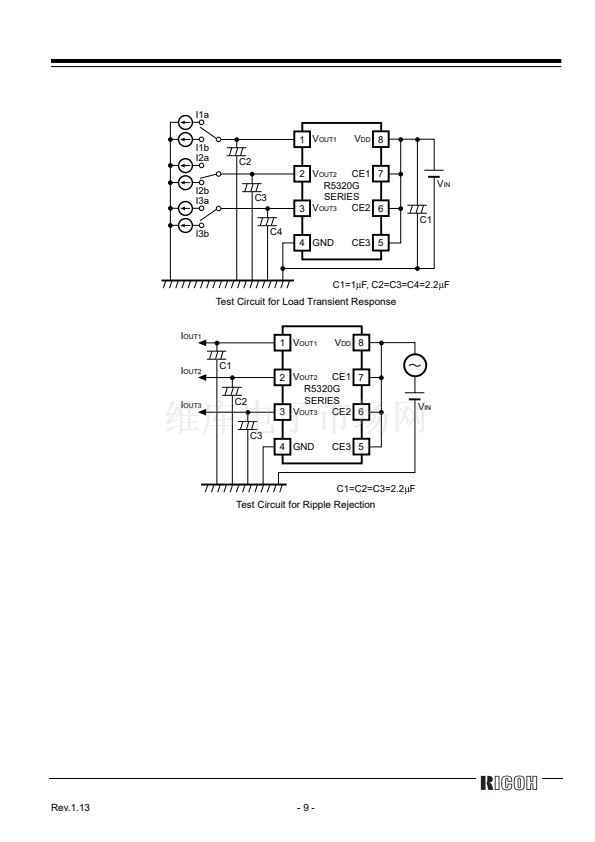

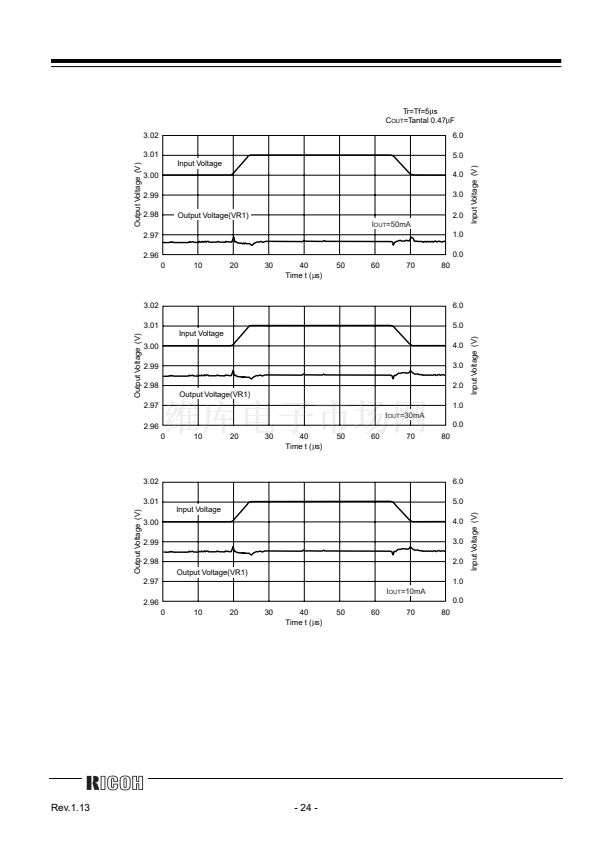

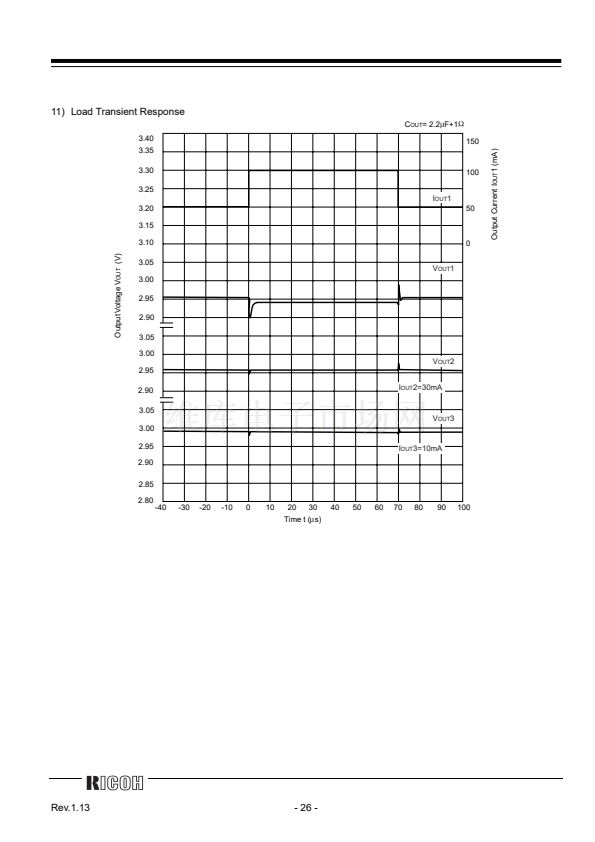

Excellent Load Transient Response and Line Transient Response

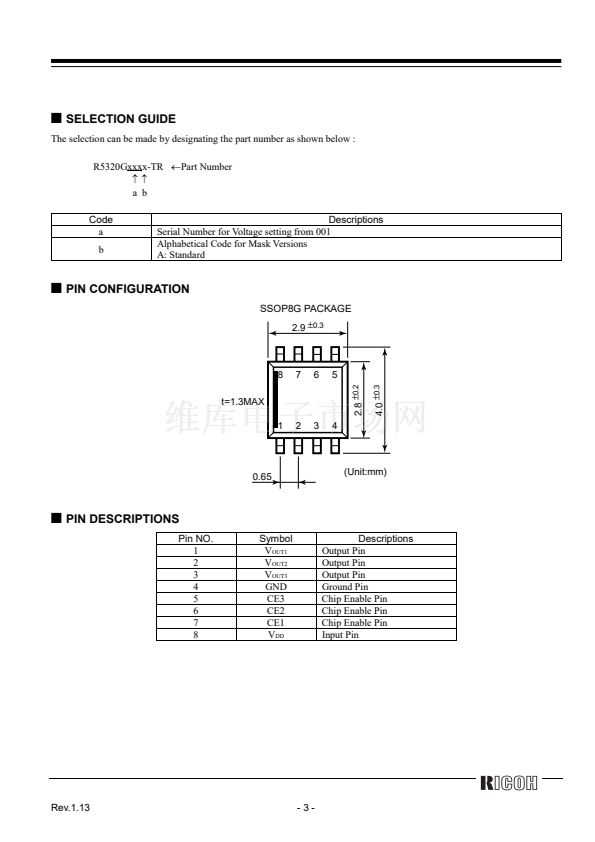

Small Package .......................................................8-Pin SSOP (0.65mm pitch)

Input Voltage .........................................................Max. 6V

APPLICATIONS

Power source for cellular phones such as GSM,CDMA and Personal Handy-phone System.

Power source for electrical appliances such as cameras, VCRs, camcorders, etc.

Power source for battery-powered equipment.

Rev.1.13

-1-
