5V operation
Six low noise CMOS level outputs
Q outputs, Q/2 output
<500ps output skew, Q
0
鈥換
4
Outputs 3-state and reset while OE/RST low
PLL disable feature for low frequency testing
Internal loop filter RC network
Internal VCO/2 option
Balanced drive outputs 鹵36mA
80MHz maximum frequency
Available in QSOP package
QS5931
DESCRIPTION
The QS5931 Clock Driver uses an internal phase locked loop (PLL)
to lock low skew outputs to a reference clock input. Six outputs are
available: Q
0
鈥換
4
, Q/2. Careful layout and design ensure < 500ps
skew between the Q
0
鈥換
4
, and Q/2 outputs. The QS5931 includes an
internal RC filter which provides excellent jitter characteristics and

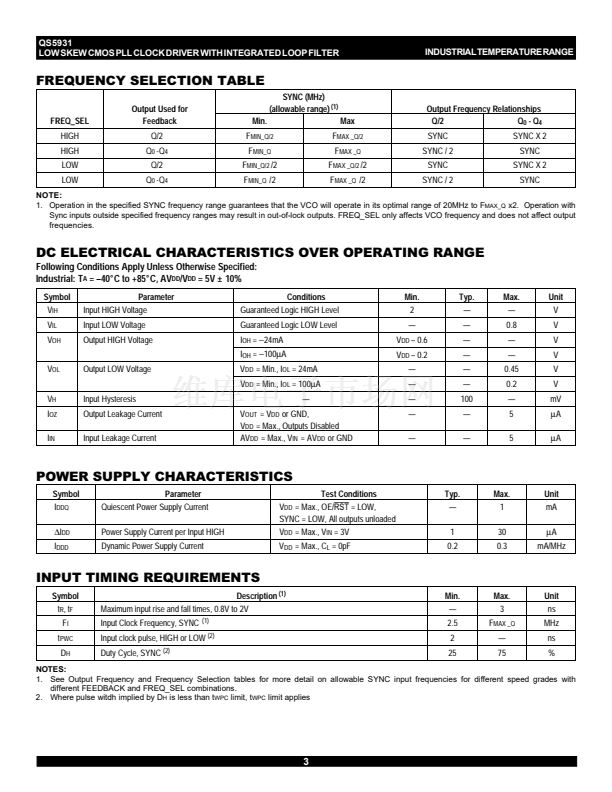

eliminates the need for external components. Various combinations of
feedback and a divide-by-2 in the VCO path allow applications to be
customized for linear VCO operation over a wide range of input SYNC
frequencies. The PLL can also be disabled by the PLL_EN signal to
allow low frequency or DC testing. The QS5931 is designed for use
in cost sensitive high-performance computing systems, workstations,
multi-board computers, networking hardware, and mainframe sys-
tems. Several can be used in parallel or scattered throughout a sys-
tem for guaranteed low skew, system-wide clock distribution networks.
In the QSOP package, the QS5931 clock driver represents the best
value in small form factor, high-performance clock management prod-
ucts.
For more information on PLL clock driver products, see Application
Note AN-227.

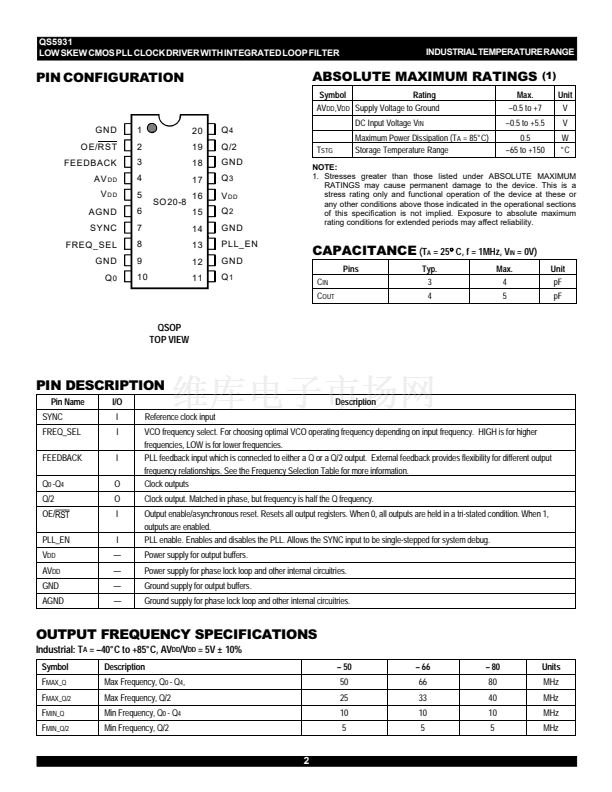

FUNCTIONAL BLOCK DIAGRAM
FEEDBACK
PLL_EN
FREQ _SEL
SYNC
O E/RST
PH ASE
DETECTO R
LOO P
FILTER
0
1
VCO
1
/2
0
R
D
R
D
R
D
R
D
R
D
R
D
Q
Q
Q
Q
Q
Q
Q
Q /2
Q
4
Q
3
Q
2
Q
1
Q
0
