MITSUBISHI TRANSISTOR MODULES

QM100DY-24BK

HIGH POWER SWITCHING USE

INSULATED TYPE

QM100DY-24BK

鈥?/div>

Collector current ........................

100A

CEX

Collector-emitter voltage .........

1200V

DC current gain.............................

750

Insulated Type

UL Recognized

Yellow Card No. E80276 (N)

File No. E80271

APPLICATION

Inverters, Servo drives, DC motor controllers, NC equipment, Welders

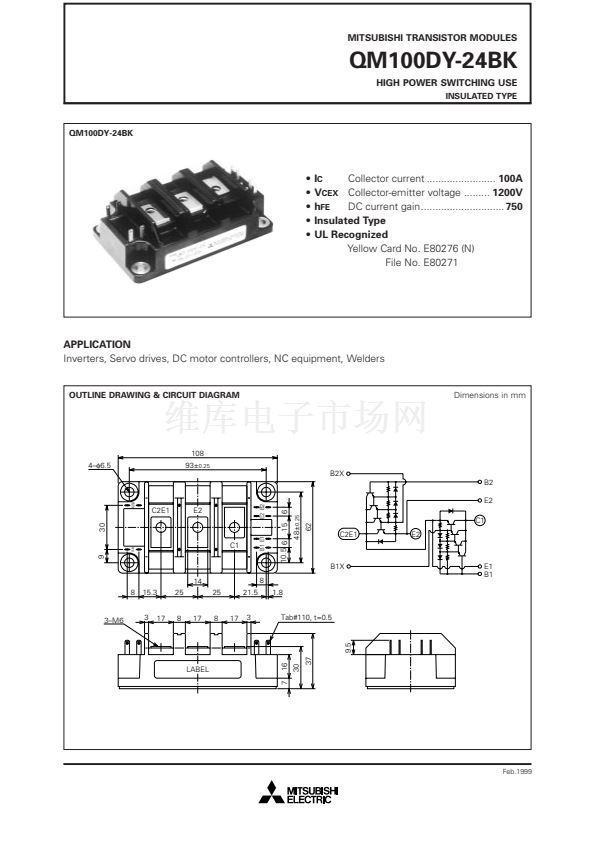

OUTLINE DRAWING & CIRCUIT DIAGRAM

Dimensions in mm

108

4鈥撓?.5

93鹵

0.25

B2X

E2 B2

48鹵

0.25

B2X

C2E1

B1 E1

10.5 6

B1X

15.3

21.5

1.8

Tab#110, t=0.5

3鈥揗6

LABEL

9.5

Feb.1999
