Reduction of Lightning and
Voltage Transient
Susceptibility
Description

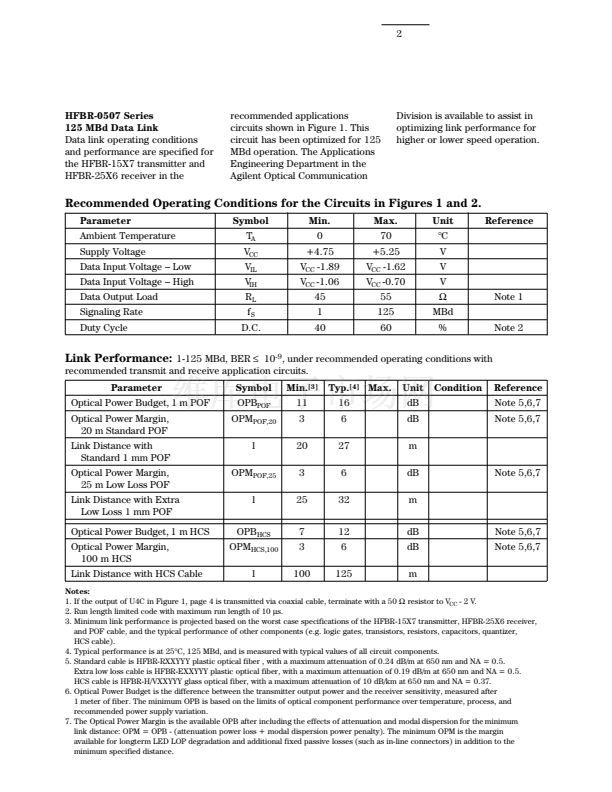

The 125 MBd Versatile Link
(HFBR-0507 Series) is the most
cost-effective fiber-optic solution
for transmission of 125 MBd data
over 100 meters. The data link
consists of a 650 nm LED
transmitter, HFBR-15X7, and a
PIN/preamp receiver, HFBR-
25X6. These can be used with
low-cost plastic or silica fiber.
One mm diameter plastic fiber
provides the lowest cost solution
for distances under 25 meters.
The lower attenuation of silica
fiber allows data transmission
over longer distance, for a small
difference in cost. These compo-
nents can be used for high speed
data links without the problems
common with copper wire
solutions, at a competitive cost.

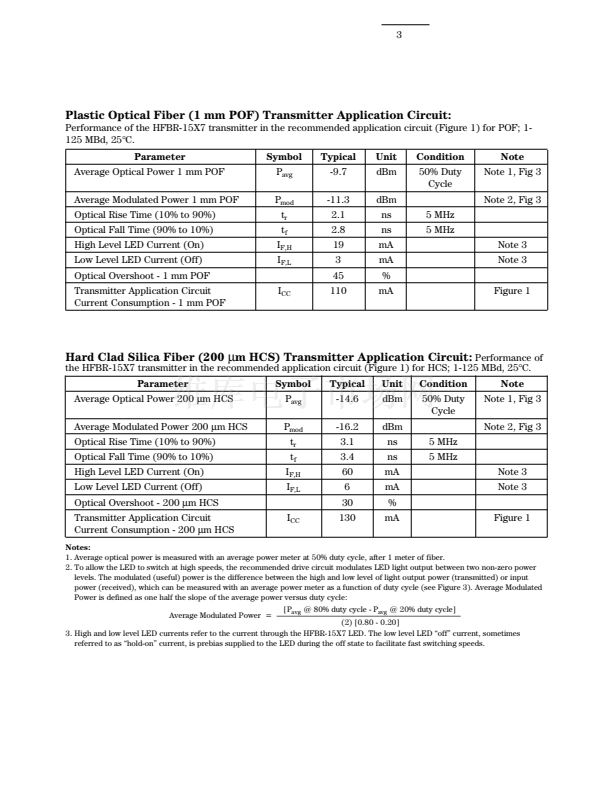

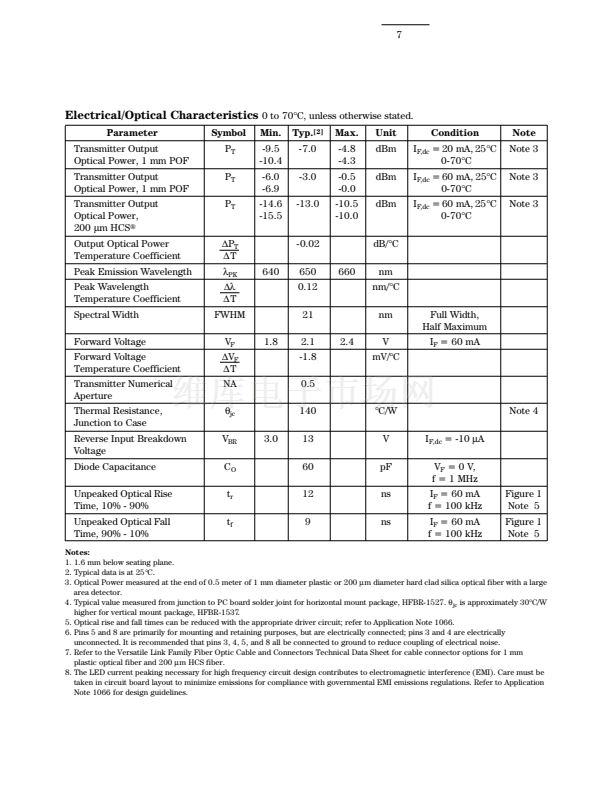

The HFBR-15X7 transmitter is a
high power 650 nm LED in a low
cost plastic housing designed to
efficiently couple power into 1
mm diameter plastic optical fiber
Applications
鈥?/div>
Intra-System Links: Board-
to-Board, Rack-to-Rack
鈥?/div>
Telecommunications
Switching Systems
鈥?/div>
Computer-to-Peripheral
Data Links, PC Bus
Extension
鈥?/div>
Industrial Control
鈥?/div>
Proprietary LANs
鈥?/div>
Digitized Video
鈥?/div>
Medical Instruments
and 200
碌m
Hard Clad Silica
(HCS
廬
) fiber. With the recom-
mended drive circuit, the LED
operates at speeds from 1-125

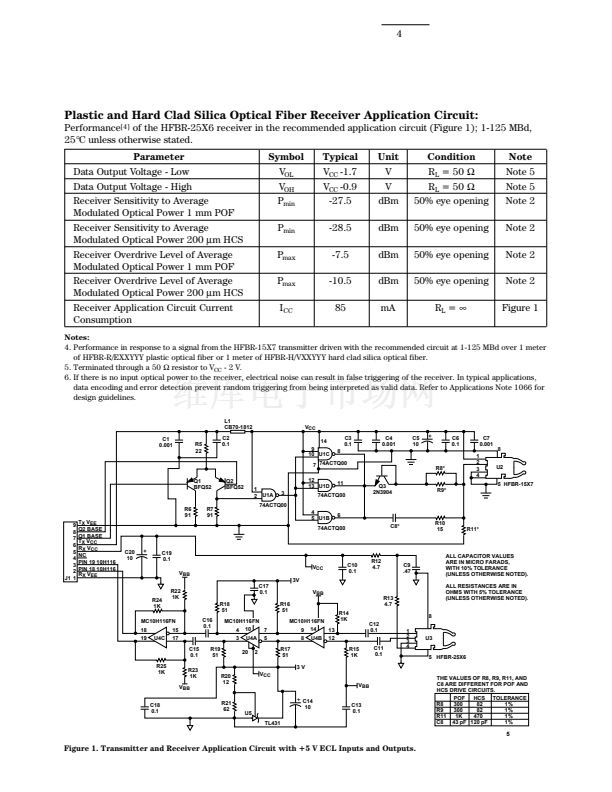

MBd. The HFBR-25X6 is a high
bandwidth analog receiver con-
taining a PIN photodiode and
internal transimpedance amplifier.

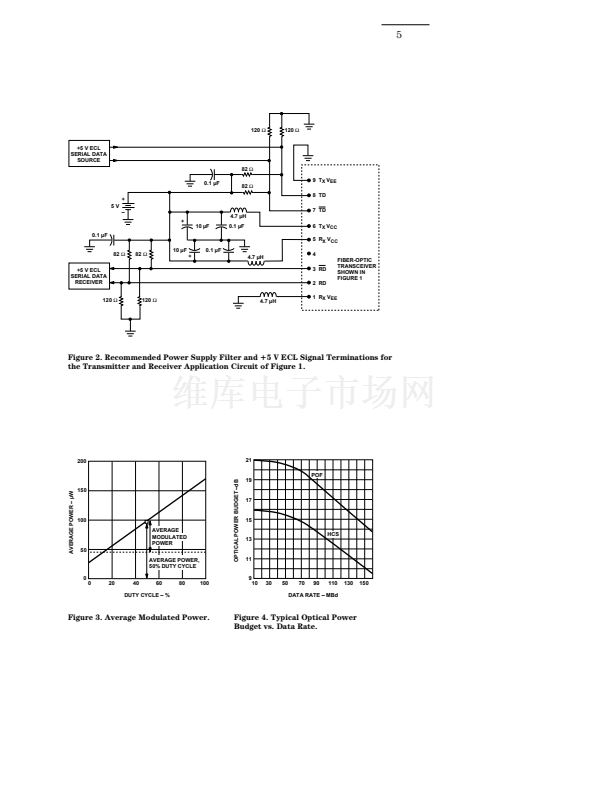

With the recommended applica-
tion circuit for 125 MBd
operation, the performance of the
complete data link is specified for
of 0-25 meters with plastic fiber
and 0-100 meters with 200
碌m
HCS
廬
fiber. A wide variety of
other digitizing circuits can be
combined with the HFBR-0507
Series to optimize performance
and cost at higher and lower data
rates.
HCS
廬
is a registered trademark of Spectran Corporation.
