512K x 32 FLASH MODULE
PUMA 68F16006/A-70/90/12/15
Elm Road, West Chirton, NORTH SHIELDS, Tyne & Wear
NE29 8SE, England Tel. +44 (0)191 2930500 Fax. +44 (0) 191 2590997
Issue 4.4 : May 2001
Description
The PUMA 68F16006 is a high density 16Mbit
CMOS 5V Only FLASH memory module in a
JEDEC 68 pin surface mount PLCC, with read
access times of 70, 90, 120, and 150ns. The plastic
device is screened to ensure high reliability.
The output width is user configerable as 8 , 16 or
32 bits using four Chip Selects (CE1~4) for
optimum application flexibility.
The module incorporates Embedded Algorithms for
Program and Erase with Sector architecture (64K
sector) and supports full chip erase.
Features
鈥?Fast Access Times of 70/90/120/150 ns.
鈥?Output Configurable as 32 / 16 / 8 bit wide.
鈥?Industrial, Military or Military (High Rel) grade.

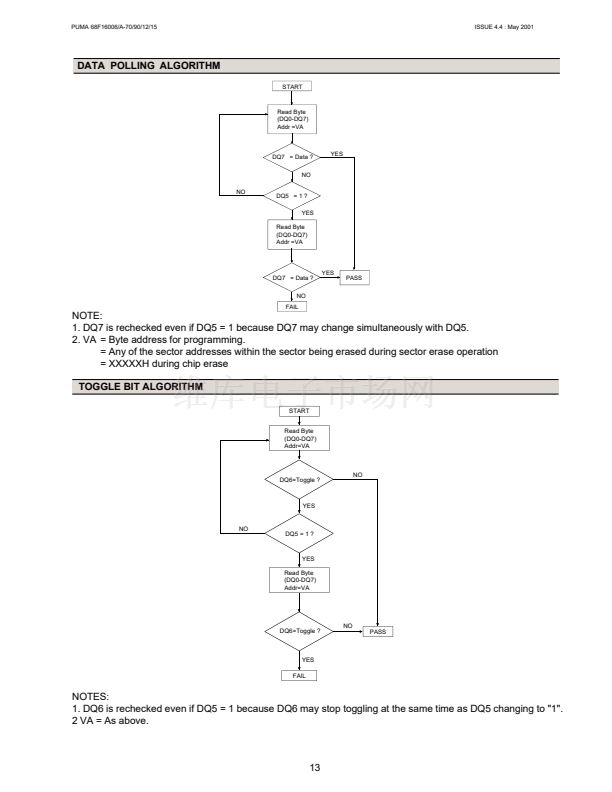

鈥?Automatic Write/Erase by Embedded Algorithm - end of
Write/Erase indicated by DATA Polling and Toggle Bit.
鈥?Flexible Sector Erase Architecture - 64K byte sector
size, with hardware protection of any number of sectors.
鈥?Single Byte Program of 16碌s (Min.), Sector Program
time of 1 sec (typ.)
鈥?Erase/Write Cycle Endurance 100,000 (Min.) - E variant.
Block Diagram (see page 24 for 'A' version)
Pin Definition (see page 24 for 'A' version)
NC
A0
A1
A2
A3
A4
A5
CS3
GND
CS4
WE
A6
A7
A8
A9
A10
Vcc
A0~A18
OE
WE
512K x 8
FLASH
CS1
CS2
CS3
CS4
D0~7
D8~15
D16~23
D24~31
512K x 8
FLASH
512K x 8
FLASH
512K x 8
FLASH
D0
D1
D2
D3
D4
D5
D6
D7
GND
D8
D9
D10
D11
D12
D13
D14
D15
9 8 7 6 5 4 3 2 1 68 67 66 65 64 63 62 61
10
60
11
59
12
58
13
57
14
56
15
55
16
54
VIEW
17
53
FROM
18
52
19
51
ABOVE
20
50
21
49
22
48
23
47
24
46
25
45
26
44
27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43
Vcc
A11
A12
A13
A14
A15
A16
CS1
OE
CS2
A17
NC
NC
NC
A18
GND
NC
D16
D17
D18
D19
D20
D21
D22
D23
GND
D24
D25
D26
D27
D28
D29
D30
D31
A0-A18
CE1-4
OE
GND
Address Input
Chip Enables
Output Enable
Ground
Pin Functions
D0-D31
WE
Vcc
Data Inputs/Outputs
Write Enable (WE1-4 for 'A' version)
Power (+5V)
