IPC Lead Free 2
NOMINAL SIZE =
1.37 in x 1.12 in
(34,8 mm x 28,5 mm)
Description
The PTH03030 is a series of high-
current non-isolated power modules
from Texas Instruments. The product is
characterized by high efficiencies, and
up to 30 A of output current, while oc-
cupying a mere 1.64 in虜 of PCB area. In
terms of cost, size, and performance, the
series provides OEM鈥檚 with a flexible
module that meets the requirements of
the most complex and demanding mixed-
signal applications. These include the
most densly populated, multi-processor
systems that incorporate high-speed
DSP鈥檚, microprocessors, and ASICs.
The series uses double-sided surface
mount construction and provides high-
performance step-down power conversion
from a 3.3-V input bus voltage. The out-
put voltage of the PTH03030W can be
set to any value over the range 0.8 V to
2.5 V, using a single resistor.
This series includes Auto-Track鈩?
Auto-Track simplifies power-up and
power-down supply voltage sequencing
in a system by enabling modules to track
each other, or any other external voltage.
Each model also includes an on/off
inhibit, output voltage adjust (trim), and
margin up/down controls. An output
voltage sense ensures tight load regulation,
and an output over-current and thermal
shutdown feature provide for protection
against external load faults.
Package options inlude both through-
hole and surface mount connfigurations.

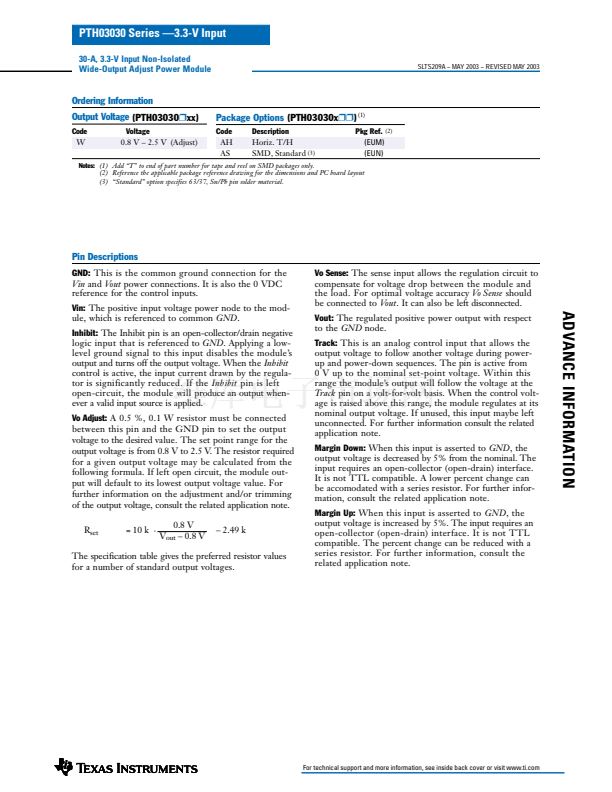

Pin Configuration
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
Function
GND
V
in
GND
Inhibit *
V
o
Adjust
V
o
Sense
GND
V
out
V
out
GND
Track
Margin Down *
Margin Up *
ADVANCE INFORMATION
* Denotes negative logic:
Open
= Normal operation
Ground = Function active
Standard Application
Track
Margin Down
Margin Up
13
1
12
11
10
k聶
-Trac g
Auto ncin
e
Sequ
Rset = Resistor to set the desired output
voltage (see spec. table for values).
Cin = Required electrolytic 1,500 碌F
Cout = Recommended 330 碌F electrolytic
V
IN
2
PTH03030W
(Top View)
9
8
7
V
OUT
3
4
5
6
Inhibit
V
o
Sense
L
O
A
D
R
SET
0.5 %, 0.1 W
(Required)
GND
For technical support and more information, see inside back cover or visit www.ti.com
+
+
C
IN
1,500 碌F
(Required)
C
OUT
330 碌F
(Optional)
GND
1
2
3
4
5
6
7
8
