20A 鈥淐urrent Booster鈥?/div>

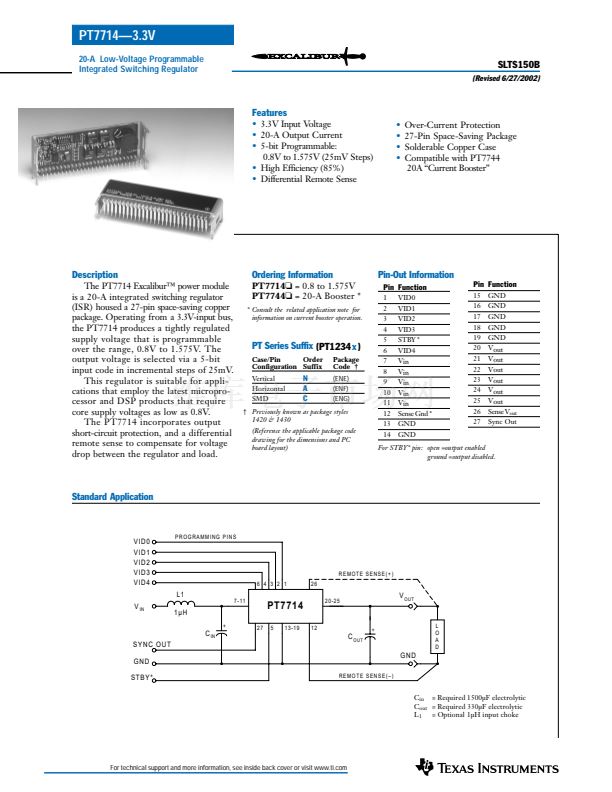

Description
The PT7714 Excalibur鈩?power module
is a 20-A integrated switching regulator
(ISR) housed a 27-pin space-saving copper
package. Operating from a 3.3V-input bus,
the PT7714 produces a tightly regulated
supply voltage that is programmable
over the range, 0.8V to 1.575V. The
output voltage is selected via a 5-bit
input code in incremental steps of 25mV.
This regulator is suitable for appli-
cations that employ the latest micropro-
cessor and DSP products that require
core supply voltages as low as 0.8V.
The PT7714 incorporates output
short-circuit protection, and a differential
remote sense to compensate for voltage
drop between the regulator and load.
Ordering Information
PT7714o
= 0.8 to 1.575V
PT7744o
= 20-A Booster *

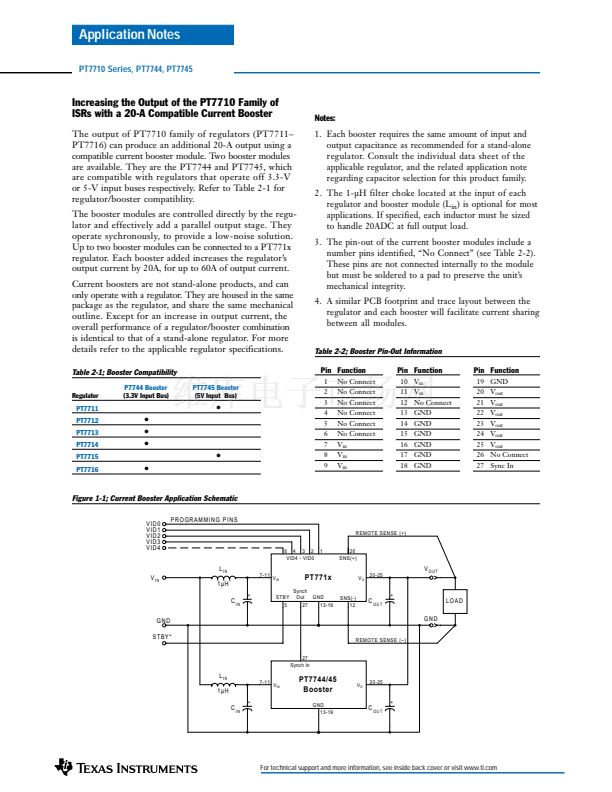

* Consult the related application note for
information on current booster operation.
Pin-Out Information
Pin Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
VID0
VID1
VID2
VID3
STBY *
VID4
Vin
Vin
Vin
Vin
Vin
Sense Gnd *
GND
GND
Pin Function
15
16
17
18
19
20
21
22
23
24
25
26
27
GND
GND
GND
GND
GND
Vout
Vout
Vout
Vout
Vout
Vout
Sense V
out
Sync Out
PT Series Suffix
(PT1234
x
)
Case/Pin
Order
Configuration Suffix
Vertical
Horizontal
SMD
Package
Code 鈥?/div>
(ENE)
(ENF)
(ENG)
N
A
C
鈥?/div>
Previously known as package styles
1420 & 1430
(Reference the applicable package code
drawing for the dimensions and PC
board layout)
For STBY* pin: open =output enabled
ground =output disabled.
Standard Application
VID0
VID1
VID2
VID3
VID4
V
IN
PROGRAMMING PINS
REMOTE SENSE(+)
6 4 3 2 1
26
20-25
L1
7-11
1碌H
+
PT7714
27
5
13-19
12
V
OUT
C
IN
SYNC OUT
GND
STBY*
+
C
OUT
GND
REMOTE SENSE(鈥?
L
O
A
D
C
in
= Required 1500碌F electrolytic
C
out
= Required 330碌F electrolytic
L
1
= Optional 1碌H input choke
For technical support and more information, see inside back cover or visit www.ti.com
