DIODE MODULE
FEATURES
* Isolated Base
* 3 Phase Bridge Circuit
* High Surge Capability
* UL Recognized, File No. E187184
75A/1200V/1600V
PT7612 PT7616

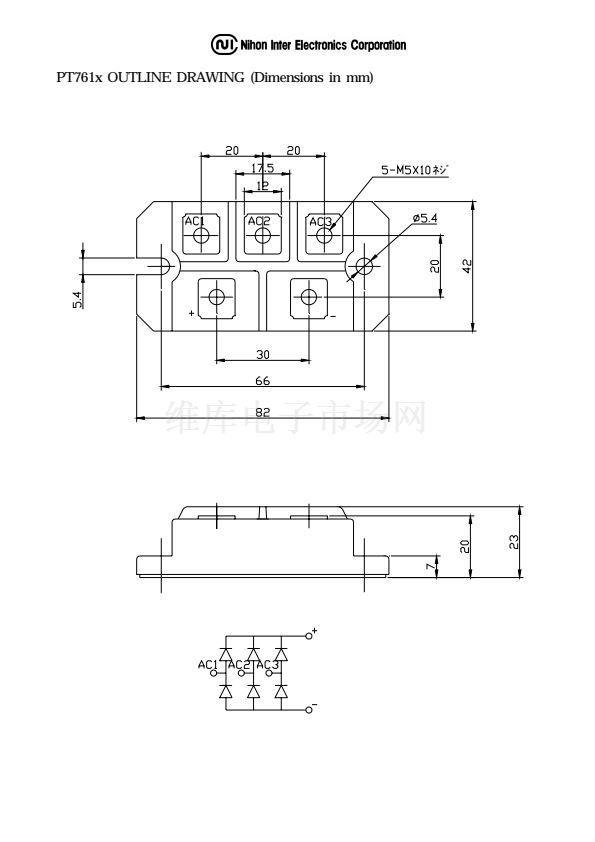

OUTLINE DRAWING
錁堬拷½錕斤緸
TYPICAL APPLICATIONS
* Rectified For General Use
Maximum Ratings
Parameter
Repetitive Peak Reverse Voltage *1
Non Repetitive Peak Reverse Voltage *1
Approx Net Weight:180g
Symbol
V
RRM
V
RSM
Type / Grade
PT7612
1200
1300
PT7616
1600
1700
Max Rated
Value
Unit
V
Parameter
Average Rectified Output Current
Surge Forward Current *1
I Squared t *1
Operating JunctionTemperature Range
Storage Temperature Range
Isoration Voltage
Case mounting
Mounting torque
Terminals
I
O(AV)
I
FSM
I
2
t
Tjw
Tstg
Viso
Ftor
Conditions
3-Phase Full Wave Rectified
Tc=75擄C
50 Hz Half Sine Wave,1Pulse
Non-repetitive
2msec to 10msec
Unit
A
A
75
600
1800
A
2
s
-40 to +125
擄C
-40 to +125
擄C
Base Plate to Terminals, AC1min
2500
V
Greased
M5 Screw
2.4 to 2.8
N
鈥?/div>
m
M5
2.4 to 2.8
Electrical
鈥?/div>
Thermal Characteristics
Characteristics
Peak Reverse Current *1
Peak Forward Voltage *1
Thermal Resistance
*1: Value Per 1Arm
Symbol
Test Conditions
Max. Unit
10
1.4
0.24
0.06
mA
V
擄C/W
I
RM
V
RM
= V
RRM,
Tj= 125擄C
V
FM
I
FM
= 75A, Tj=25擄C
Rth(j-c) Junction to Case (Total)
Base Plate to Heat Sink with Thermal
Rth(c-f)
Compound (Total)
1
2
3
