Princeton Technology Corp.

LED Driver IC

DESCRIPTION

Tel : 886-2-29162151

Fax: 886-2-29174598

URL:

http://www.princeton.com.tw

PT6958

PT6958 is an LED Controller driven on a 1/6 duty factor. Ten segment output lines, 5 grid output lines,

one display memory, control circuit, key scan circuit are all incorporated into a single chip to build a

highly reliable peripheral device for a single chip microcomputer. Serial data is fed to PT6958 via a

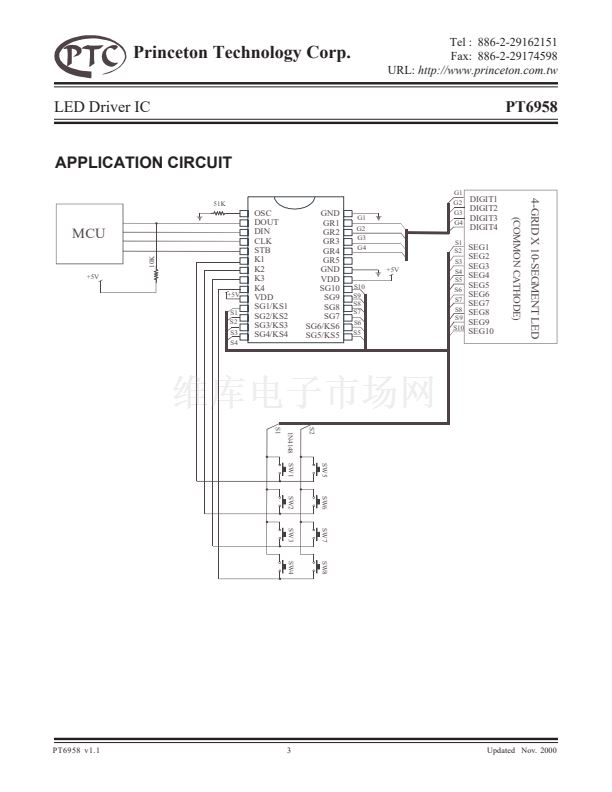

three-line serial interface. Housed in a 28-pin SO Package, PT6958鈥檚 pin assignments and application

circuit are optimized for easy PCB Layout and cost saving advantages.

FEATURES

鈥?CMOS Technology

鈥?Low Power Consumption

鈥?Key Scanning (6 x 4 matrix)

鈥?8-Step Dimming Circuitry

鈥?Serial Interface for Clock, Data Input, Data Output, Strobe Pins

鈥?Available in 28-pin, SO Package

APPLICATION

鈥?Micro-computer Peripheral Device

PT6958 v1.1

1

Updated Nov. 2000
