PT4125C Datasheet

  • PT4125C

  • 20-W 48-V Input Isolated DC/DC Converter

  • 9頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

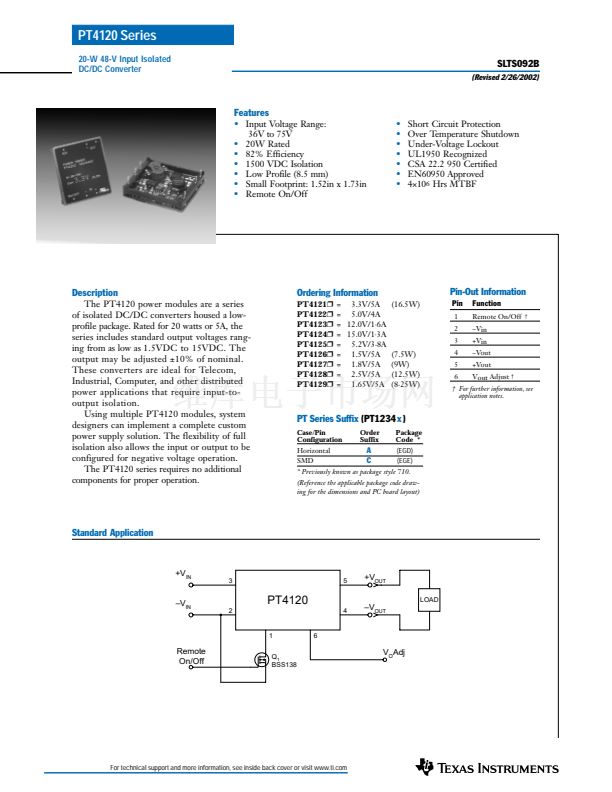

PT4120 Series
20-W 48-V Input Isolated
DC/DC Converter
SLTS092B
(Revised 2/26/2002)
Features
鈥?/div>
Input Voltage Range:
36V to 75V
鈥?/div>
20W Rated
鈥?/div>
82% Efficiency
鈥?/div>
1500 VDC Isolation
鈥?/div>
Low Profile (8.5 mm)
鈥?/div>
Small Footprint: 1.52in x 1.73in
鈥?/div>
Remote On/Off
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Short Circuit Protection
Over Temperature Shutdown
Under-Voltage Lockout
UL1950 Recognized
CSA 22.2 950 Certified
EN60950 Approved
4脳10
6
Hrs MTBF
Description
The PT4120 power modules are a series
of isolated DC/DC converters housed a low-
profile package. Rated for 20 watts or 5A, the
series includes standard output voltages rang-
ing from as low as 1.5VDC to 15VDC. The
output may be adjusted 鹵10% of nominal.
These converters are ideal for Telecom,
Industrial, Computer, and other distributed
power applications that require input-to-
output isolation.
Using multiple PT4120 modules, system
designers can implement a complete custom
power supply solution. The flexibility of full
isolation also allows the input or output to be
configured for negative voltage operation.
The PT4120 series requires no additional
components for proper operation.
Ordering Information
PT4121H
PT4122H
PT4123H
PT4124H
PT4125H
PT4126H
PT4127H
PT4128H
PT4129H
= 3.3V/5A (16.5W)
= 5.0V/4A
= 12.0V/1鈰?A
= 15.0V/1鈰?A
= 5.2V/3路8A
= 1.5V/5A (7.5W)
= 1.8V/5A (9W)
= 2.5V/5A (12.5W)
= 1.65V/5A (8路25W)
Pin-Out Information
Pin
1
2
3
4
5
6
Function
Remote On/Off
鈥揤in
+Vin
鈥揤out
+Vout
Vout Adjust
鈥?/div>
鈥?/div>
鈥?For further information, see
application notes.
PT Series Suffix
(PT1234x )
Case/Pin
Configuration
Horizontal
SMD
Order
Suffix
Package
Code *
(EGD)
(EGE)
A
C
* Previously known as package style 710.
(Reference the applicable package code draw-
ing for the dimensions and PC board layout)
Standard Application
+V
IN
鈥揤
IN
3
5
+V
OUT
LOAD
PT4120
2
4
1
6
鈥揤
OUT
Remote
On/Off
Q
1
BSS138
V
O
Adj
For technical support and more information, see inside back cover or visit www.ti.com

PT4125C 產品屬性

  • 192

  • 電源 - 板載

  • DC DC Converters

  • PT4120

  • 隔離

  • 1

  • 75V

  • 5.2V

  • -

  • -

  • 3.8A

  • 20W

  • 1.5kV（1500V）

  • -

  • 表面貼裝

  • 6-DIP SMD 模塊

  • 1.67" L x 1.48" W x 0.34" H（42.4mm x 37.6mm x 8.6mm）

  • 托盤

  • -40°C ~ 85°C

  • 82%

  • 20W
