Princeton Technology Corp.
Remote Control Encoder IC
DESCRIPTION
Tel : 886-2-29162151
Fax: 886-2-29174598
URL:
http://www.princeton.com.tw
Preliminary
PT2607
PT2607 is a data-trigger type tri-state remote control encoder IC utilizing CMOS Technology. It en-
codes data and address pins into a serially encoded waveform suitable for RF modulation. PT2607
provides 12 address bits and 6 data bits. It may be paired with PT2604 and is housed in 20-pin, SO or

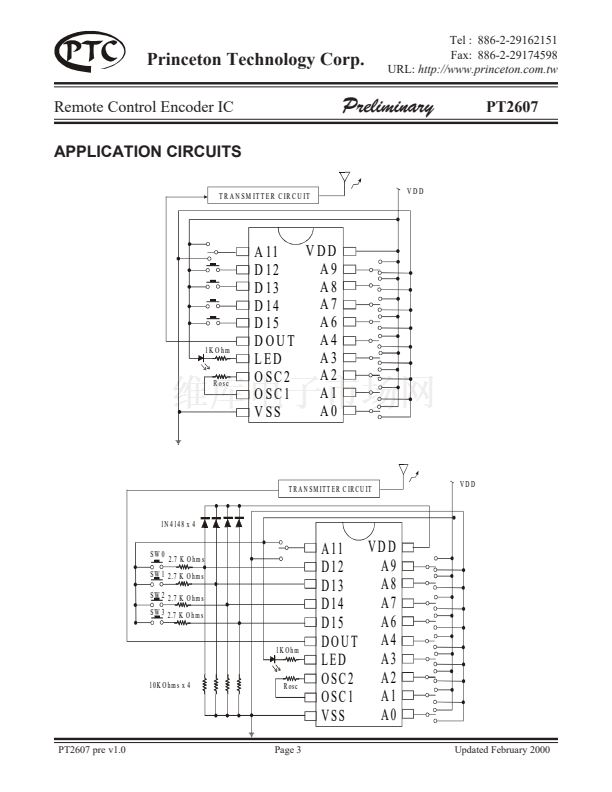

DIP Package. Pin assignments and application circuit are optimized for easy PCB Layout and cost
saving benefits.
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
CMOS Technology
Low Power Consumption
Operating Voltage: 2.4 to 15 V
Low Standby Current
Three Words Transmission
Built-in Oscillator
Least External Components
Available in 20-pin DIP or SO Package
Easy to Use
APPLICATIONS
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Burglar Alarm System
Car/Motorcycle Security System
Home/Office Security System
Smoke & Fire Alarm System
Toy/Garage Door Remote Controller
Cordless Telephone
Object Finder
Remote Switch
Remote Control for Industrial Use
Automation System
PT2607 pre v1.0
Page 1
Updated February 2000
