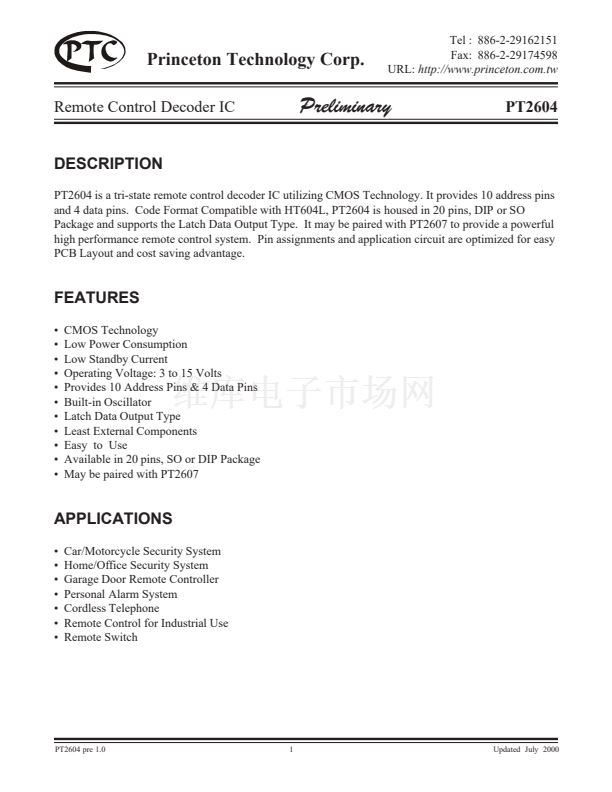

Princeton Technology Corp.
Remote Control Decoder IC
Tel : 886-2-29162151
Fax: 886-2-29174598
URL:
http://www.princeton.com.tw
Preliminary
PT2604
DESCRIPTION
PT2604 is a tri-state remote control decoder IC utilizing CMOS Technology. It provides 10 address pins
and 4 data pins. Code Format Compatible with HT604L, PT2604 is housed in 20 pins, DIP or SO
Package and supports the Latch Data Output Type. It may be paired with PT2607 to provide a powerful
high performance remote control system. Pin assignments and application circuit are optimized for easy
PCB Layout and cost saving advantage.
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
CMOS Technology
Low Power Consumption
Low Standby Current
Operating Voltage: 3 to 15 Volts
Provides 10 Address Pins & 4 Data Pins
Built-in Oscillator
Latch Data Output Type
Least External Components
Easy to Use
Available in 20 pins, SO or DIP Package
May be paired with PT2607
APPLICATIONS
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Car/Motorcycle Security System
Home/Office Security System
Garage Door Remote Controller
Personal Alarm System
Cordless Telephone
Remote Control for Industrial Use
Remote Switch
PT2604 pre 1.0
1
Updated July 2000
