Princeton Technology Corp.
3D Effect IC
DESCRIPTION
Tel : 886-2-29162151
Fax: 886-2-29174598
URL:
http://www.princeton.com.tw
PT2386
PT2386 is an enhanced 3D Audio Effect IC utilizing CMOS Technology specially designed for the new genera-
tion of audio equipments. PT2386 features a bass booster function as well as the latest PTC 3D Audio Tech-
nology, thereby, guaranteeing highly powerful, extensive and true-to-life stereo sound stage effect. Further-
more, it does not need any additional complex external circuits making it very easy to design into any audio
equipment products. Housed in 18 pins DIP package, PT2386 can operate at a wide operating voltage range

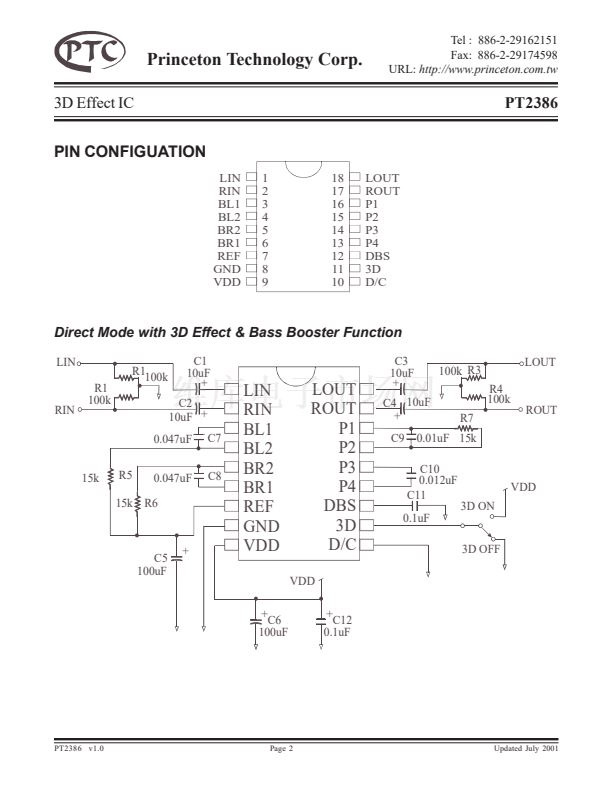

and has low power consumption. Pin assignments and application circuit are optimized for easy PCB layout and
cost saving benefits.
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
CMOS Technology
Wide Operating Voltage Range: VDD=4 V to 10 V
Low Power Consumption
Very Low Total Harmonic Distortion : THD < 0.01%
Wide Output Voltage Range: Greater than 3Vrms
PTC 3D Audio Technology
Built-in 3D LED Driver
3D Effect Switching Mode: Direct or Cyclic
Least External Components
APPLICATIONS
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Multi-Media Audio Equipment
Home Audio Equipment
Portable Audio Equipment
Car Audio Equipment
Other Audio Equipment
ORDER INFORMATION
Valid Part Number
PT2386
PT2386-S
PT2386 v1.0
Package Type
18 Pins, DIP Package (300 mil)
18 Pins, SO Package (300 mil)
Page 1
Updated July 2001
