Princeton Technology Corp.
Tel : 886-2-29162151
Fax : 886-2-29174598
URL:http://www.princeton.com.tw
2-Channel Audio Processor IC
Description
PT2315
PT2315 is a two-channel digital audio processor utilizing CMOS Technology. Volume,
Bass, Treble and Balance Controls are incorporated into a single chip. Loudness
Function is also provided to build a highly effective electronic audio processor having
the highest performance and reliability with the least external components. All functions
are programmable using the I
2
C Bus. The pin assignments and application circuit are
optimized for easy PCB layout and cost saving advantage for audio application. Housed
in a 20-pin DIP/SO Package, PT2315 is pin-to-pin compatible with TDA7315 and is very
similar in performance with the later.

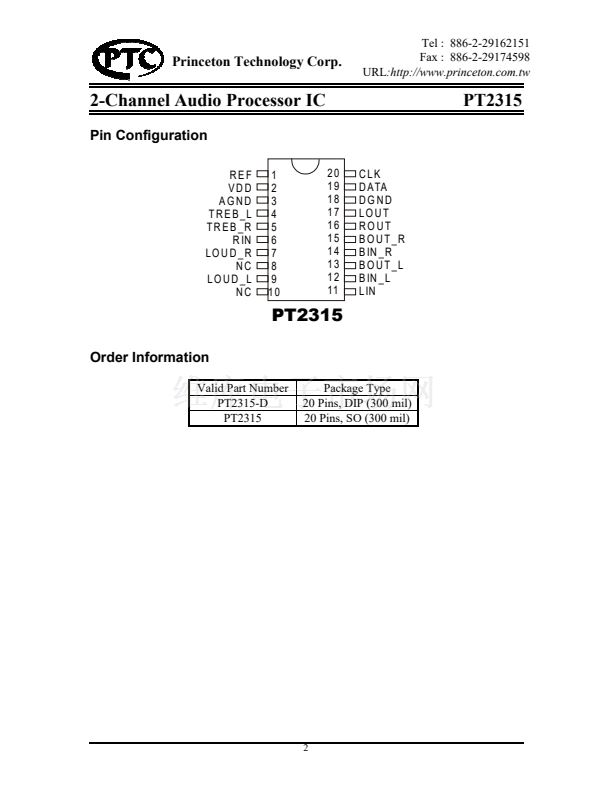

Features
!
!
!
!
!
!
!
!
!
!
!
!
CMOS Technology
Least External Components
Treble and Bass Control
Loudness Function
Input/Output for External Noise Reduction System/Equalizer
2 Independent Speaker Controls for Balance Function
Independent Mute Function
Volume Control in 1.25 dB/step
Low Distortion
Low Noise and DC Stepping
Controlled by I
2
C Bus Micro-Processor Interface
Pin-to-pin Compatible with TDA7315
Applications
!"""""Car
Stereo (Audio)
!
Hi-Fi Audio System
!
Can be used in all I
2
C System Applications
Note: Purchase of I
2
C Component of Princeton Technology Corporation (PTC) conveys a license under Philips I
2
C
Patent Right to use these components in any I
2
C System, provided that the system conforms to the I
2
C Standard
Specification defined by Philips
