Princeton Technology Corp.
Programmable Rolling Code Encoder IC
DESCRIPTION
Tel: 886-2-29162151
Fax: 886-2-29174598
URL:
http://www.princeton.com.tw
Preliminary
PT2282
PT2282 is a programmable rolling code encoder IC utilizing CMOS Technology specially designed for
remote control applications. It has a maximum of 20 programmable Address Codes, 4 Data Bits, and 10
Rolling Code Bits. A total of 1,024 rolling code combinations and power saving feature are also provided.
PT2282 encodes the programmed codes into a coded waveform suitable for RF modulation. Pin assign-

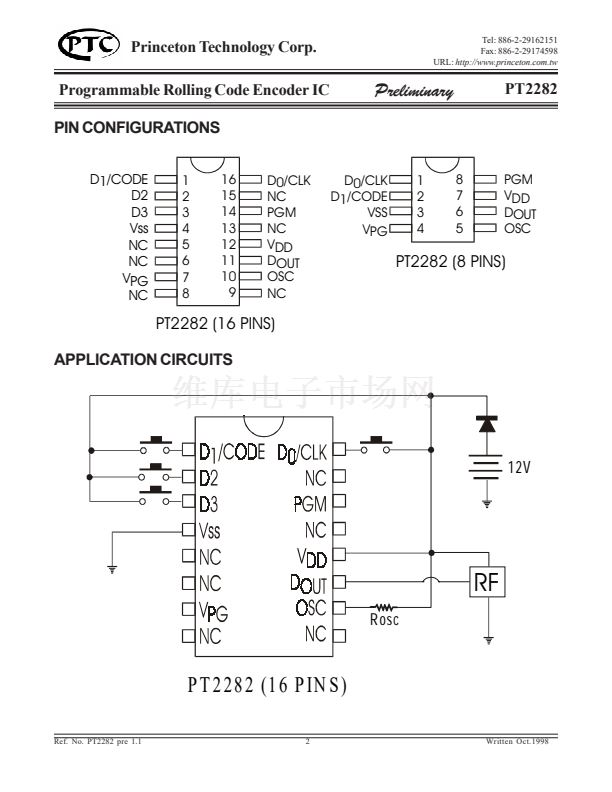

ments and application circuit are optimized for easy PCB Layout and cost saving advantage. Housed in
either 8 pins or 16 pins DIP or SO Package, PT2282 also provides anti-scan features.
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
CMOS Technology
Low Power Consumption
Least External Components
High Noise Immunity
Single Resistor Oscillator
Operating Voltage: 1.8 V to 15 V
Up to 2
20
Address Codes
Up to 4 Data pins
Up to 2
30
Output Code Combinations
Power Saving Feature
Available in 8-pin or 16-pin, SO or DIP Package
APPLICATIONS
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Burglar Alarm System
Car Security System
Car/Garage Door Controller
Home/Office Security System
Personal Alarm System
Ref. No. PT2282 pre 1.1
1
Written Oct.1998
