PHASE ANGLE POWER
25A ac
CONTROL MODULE
PSR-25
X10205
INTRODUCTION
The PSR-25 Power Control Module is a high power, full wave AC phase angle controller in a
compact package, capable of regulating up to 6KW (25A) 230V ac. The PSR-25 regulator governs
the amount of power supplied to the load, by controlling the phase angle of the AC supply. The low
thermal impedance and high electrical isolation provides the equipment designer with a greater
flexibility in a wide variety of applications.
APPLICATIONS
Suitable for quartz lamps, conventional resistive heating elements, including ovens, moulders and
dryers and some inductive loads (e.g. transformers and motors).
FEATURES
鈥?/div>
Solid state reliability.
鈥?/div>
Epoxy encapsulated.
鈥?/div>
Simple wiring.
鈥?/div>
Rugged and compact
鈥?/div>
High current capability.
鈥?/div>
Internal snubber.

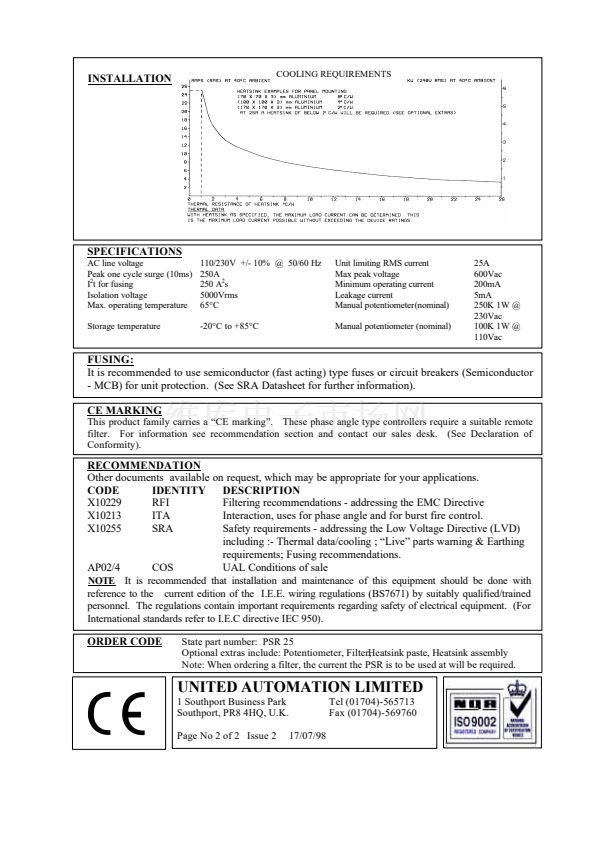

INSTALLATION
next
PSR-25 產(chǎn)品屬性
25A
99VAC 到 121VAC / 2.7VAC 到 253VAC
1500V
60Hz
400V
43mm
56mm
28mm
螺絲安裝
CE
5mA
15%
Quartz Lamps, Resistive Heating Ovens, Moulders, Dryers, Inductive Load Transformers, Motors
1.5V
25A
240V
253VAC
207VAC
*PSR-25
6kW
