PSMN035-150P Datasheet

  • PSMN035-150P

  • N-channel TrenchMOS transistor

  • 105.22KB

  • 9頁

  • PHILIPS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

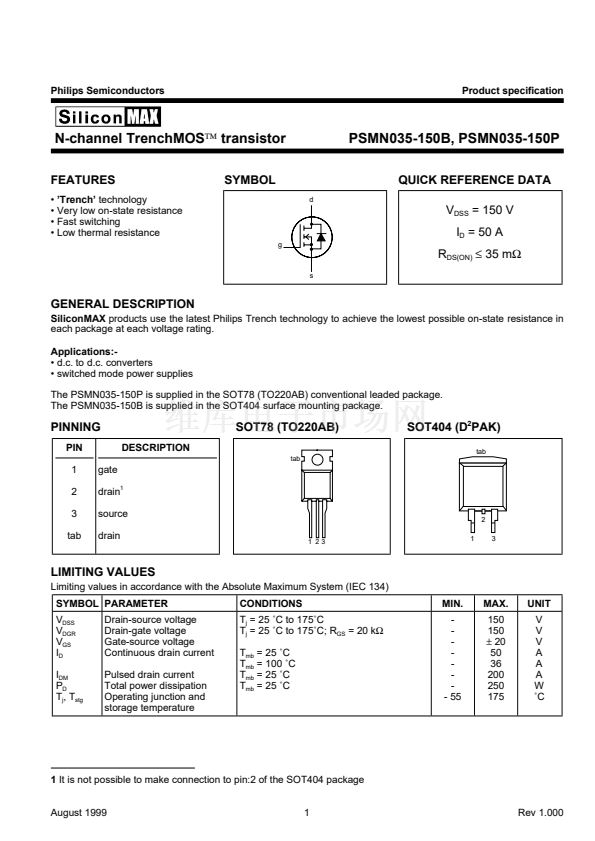

Philips Semiconductors
Product specification
N-channel TrenchMOS鈩?transistor
FEATURES
鈥?/div>
鈥橳rench鈥?/div>
technology
鈥?Very low on-state resistance
鈥?Fast switching
鈥?Low thermal resistance
g
PSMN035-150B, PSMN035-150P
QUICK REFERENCE DATA
d
SYMBOL
V
DSS
= 150 V
I
D
= 50 A
R
DS(ON)
鈮?/div>
35 m鈩?/div>
s
GENERAL DESCRIPTION
SiliconMAX
products use the latest Philips Trench technology to achieve the lowest possible on-state resistance in
each package at each voltage rating.
Applications:-
鈥?d.c. to d.c. converters
鈥?switched mode power supplies
The PSMN035-150P is supplied in the SOT78 (TO220AB) conventional leaded package.
The PSMN035-150B is supplied in the SOT404 surface mounting package.
PINNING
PIN
1
2
3
tab
gate
drain
1
source
drain
DESCRIPTION
SOT78 (TO220AB)
tab
SOT404 (D
2
PAK)
tab
2
1 23
1
3
LIMITING VALUES
Limiting values in accordance with the Absolute Maximum System (IEC 134)
SYMBOL PARAMETER
V
DSS
V
DGR
V
GS
I
D
I
DM
P
D
T
j
, T
stg
Drain-source voltage
Drain-gate voltage
Gate-source voltage
Continuous drain current
Pulsed drain current
Total power dissipation
Operating junction and
storage temperature
CONDITIONS
T
j
= 25 藲C to 175藲C
T
j
= 25 藲C to 175藲C; R
GS
= 20 k鈩?/div>
T
mb
= 25 藲C
T
mb
= 100 藲C
T
mb
= 25 藲C
T
mb
= 25 藲C
MIN.
-
-
-
-
-
-
-
- 55
MAX.
150
150
鹵
20
50
36
200
250
175
UNIT
V
V
V
A
A
A
W
藲C
1
It is not possible to make connection to pin:2 of the SOT404 package
August 1999
1
Rev 1.000

PSMN035-150P 產品屬性

  • NXP

  • MOSFET

  • N-Channel

  • 150 V

  • +/- 20 V

  • 50 A

  • 0.035 Ohms

  • Single

  • + 175 C

  • Through Hole

  • TO-220AB

  • Rail

  • 93 ns

  • - 55 C

  • 250 W

  • 138 ns

  • 50

  • 79 ns

  • PSMN035-150P,127
