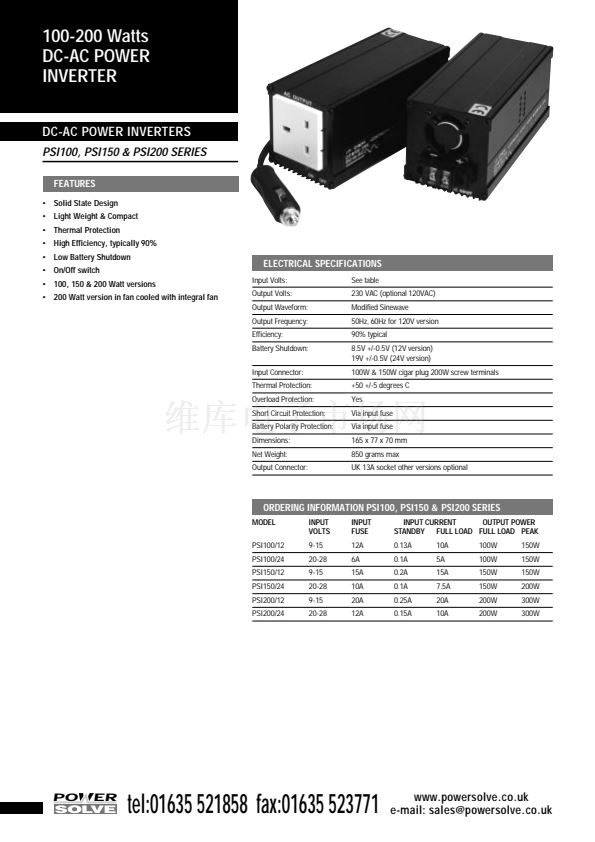

100-200 Watts
DC-AC POWER
INVERTER
DC-AC POWER INVERTERS
PSI100, PSI150 & PSI200 SERIES
FEATURES
鈥?Solid State Design
鈥?Light Weight & Compact
鈥?Thermal Protection
鈥?High Efficiency, typically 90%
鈥?Low Battery Shutdown
鈥?On/Off switch
鈥?100, 150 & 200 Watt versions
鈥?200 Watt version in fan cooled with integral fan
ELECTRICAL SPECIFICATIONS
Input Volts:
Output Volts:
Output Waveform:
Output Frequency:
Efficiency:
Battery Shutdown:
Input Connector:
Thermal Protection:
Overload Protection:
Short Circuit Protection:
Battery Polarity Protection:
Dimensions:
Net Weight:
Output Connector:
See table
230 VAC (optional 120VAC)
Modified Sinewave
50Hz, 60Hz for 120V version
90% typical
8.5V +/-0.5V (12V version)
19V +/-0.5V (24V version)
100W & 150W cigar plug 200W screw terminals
+50 +/-5 degrees C
Yes
Via input fuse
Via input fuse
165 x 77 x 70 mm
850 grams max
UK 13A socket other versions optional
ORDERING INFORMATION PSI100, PSI150 & PSI200 SERIES
MODEL
PSI100/12
PSI100/24
PSI150/12
PSI150/24
PSI200/12
PSI200/24
INPUT
VOLTS
9-15
20-28
9-15
20-28
9-15
20-28
INPUT
FUSE
12A
6A
15A
10A
20A
12A
INPUT CURRENT
OUTPUT POWER
STANDBY FULL LOAD FULL LOAD PEAK
0.13A
0.1A
0.2A
0.1A
0.25A
0.15A
10A
5A
15A
7.5A
20A
10A
100W
100W
150W
150W
200W
200W
150W
150W
150W
200W
300W
300W
PO
ER
