Product Brochure for HSCX TE
High-Level Serial Communications Controller for Terminals PSB/PSF 21525
The HSCX TE is an optimized terminal version of the HSCX (SAB 82525). The
HSCX TE has been designed to implement high-speed communication links
using HDLC protocols and to reduce the hardware and software overhead
needed for serial synchronous communications.
1. Potential application
2. Features:
鈥?/div>
ISDN PC-Card/Terminal Adapter
鈥?/div>
ISDN Data Terminal
鈥?/div>
Optimized solution of HSCX (SAB 82525) for terminal equipment
Non-auto mode and transparent mode (no auto mode)
Clock mode 5 only
Transfer of data blocks from/to system memory by interrupt request ( no DMA mode)
鈥?/div>
Two independent full-duplex HDLC channels
鈥?/div>
Independent time-slot length (1-256 bit)
鈥?/div>
Transparent receive/transmit of data bytes without HDLC framing
鈥?/div>
Various types of protocol support depending on operating mode
鈥?/div>
64 byte FIFOs per channel and direction
鈥?/div>
8-bit demultiplexed or multiplexed bus interface
8/97
3. Packing
Type
PSB 21525 N V2.1
PSB 21525 H V2.1
PSB 21525 F V2.1
PSF 21525 H V2.1
Ordering Code
Q67100-H6672
Q67100-H6671
Q67100-H6733
Q67233-H1032
Package
P-LCC-44
P-MQFP-44
P-TQFP-44
P-MQFP-44
4. Product status
Product
PSB 21525 N/H/F
PSF 21525 H
Step
V 2.1
V 2.1
Status
Prod. Delivery Release
ES in Q3/97
Changes
5. Diagram

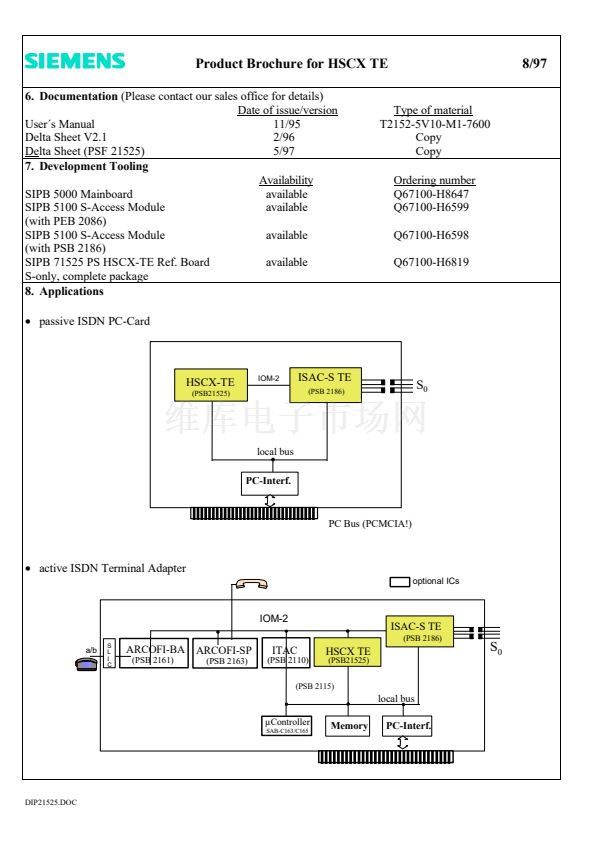

DIP21525.DOC
