CL-PS7500FE
Product Bulletin
FEATURES
s
Massively integrated system-on-a-chip
鈥?High-speed CPU and all major system peripherals
incorporated
鈥?Minimized need for external components
鈥?Maximum design simplicity
High-Performance
System-on-a-Chip
with CRT/LCD Controller
s
CRT/LCD controller
Unified Memory Architecture (UMA)
Resolutions up to 1024
脳
768 (XGA)
256-entry 28-bit video palette
Up to 16 million colors
Up to 120-MHz pixel clock rates for flicker-free screen
refresh
鈥?Supports single- and dual-scan LCD panels
鈥?16-level grayscaler
鈥?Hardware cursor for all display modes
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
OVERVIEW
The CL-PS7500FE is a massively integrated gen-
eral-purpose 鈥榮ystem-on-a-chip鈥?designed for a wide
range of control and communications applications.
Based on a low-power, high-speed ARM
廬
RISC
CPU core, the CL-PS7500FE integrates a powerful
50-MIPS processor, hardware floating point unit,
memory interfaces, and a full complement of system
peripherals onto a single chip. This integrated chip
greatly simplifies system design for complex appli-
cations such as network computers, set-top boxes,
screen phones, process control systems, and
instrumentation control.
(cont.)
s
Performance matching 100-MHz Intel
廬
鈥?86-based PC
s
32-bit ARM710A microprocessor
鈥?ARM7 CPU
(cont.)

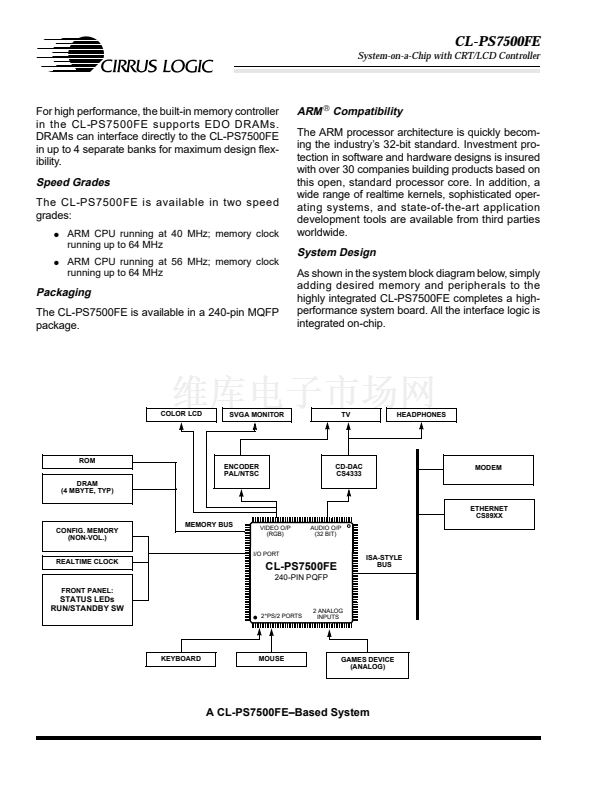

FUNCTIONAL BLOCK DIAGRAM
CPUCLK
VIDCLK
SNDCLK
MEMCLK
RESET
ARM710A
(4K CACHE)
MMU
ARM7
4KB
CACHE
INTERRUPTS AND
TIMERS
SERIAL
PORT 1
SERIAL
PORT 2
FLOATING POINT
UNIT (FPU)
ARBITRATION
A[28:0]
I/O CHIP SELECTS
PCMCIA XIP
IOD[15:0]
INTERRUPTS
CONTROL
DATA
BUFFER
I/O AND MEMORY
SERIAL
WAKEUP
WRITE BUFFER
D[31:0]
DAC REF
CLOCK AND POWER
EXTERNAL
CD-DAC (CS4333)
MUTE
TIMING
RBG MONITOR
LCD PANEL
SOUND
DIGITAL
VIDEO AND
SOUND
VIDEO
PALETTE
CURSO
PALETTE
SOUND
FIFO
DATA LATCH
TIMING AND CLOCK
VIDEO
FIFO
CURSOR
FIFO
DMA
DRAM
OSC CONTROL
DRAM
CS
ANALOG
DECODE
SRAM I/F
IOP[7:0]
MUX
RGB
DACS
LCD
I/O
CONTROL
4X A/D
TM
January 1999
