PS094-315 Datasheet

  • PS094-315

  • LGA Packaged Phase Shifter for GSM Base Stations

  • 545.50KB

  • 3頁

  • ALPHA

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

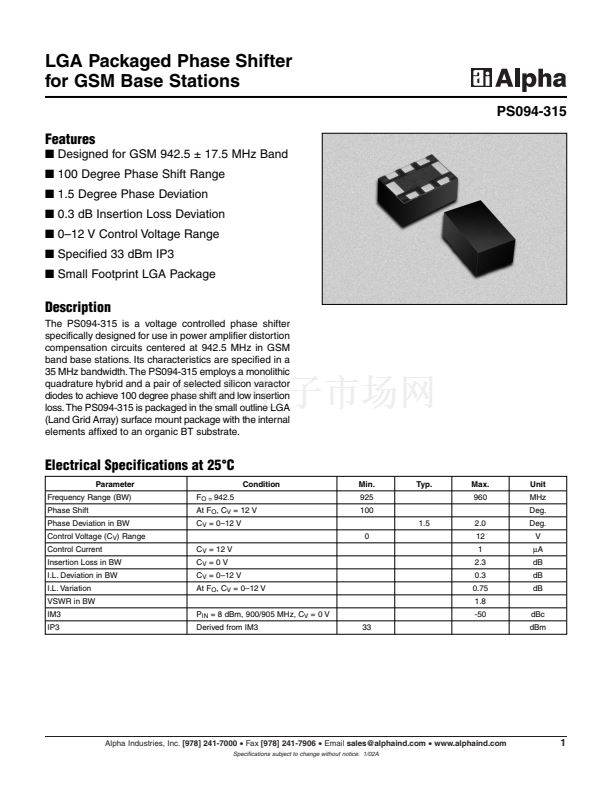

LGA Packaged Phase Shifter
for GSM Base Stations
PS094-315
Features
鈻?/div>
Designed for GSM 942.5 鹵 17.5 MHz Band
鈻?/div>
100 Degree Phase Shift Range
鈻?/div>
1.5 Degree Phase Deviation
鈻?/div>
0.3 dB Insertion Loss Deviation
鈻?/div>
0鈥?2 V Control Voltage Range
鈻?/div>
Specified 33 dBm IP3
鈻?/div>
Small Footprint LGA Package
Description
The PS094-315 is a voltage controlled phase shifter
specifically designed for use in power amplifier distortion
compensation circuits centered at 942.5 MHz in GSM
band base stations. Its characteristics are specified in a
35 MHz bandwidth. The PS094-315 employs a monolithic
quadrature hybrid and a pair of selected silicon varactor
diodes to achieve 100 degree phase shift and low insertion
loss. The PS094-315 is packaged in the small outline LGA
(Land Grid Array) surface mount package with the internal
elements affixed to an organic BT substrate.
Electrical Specifications at 25擄C
Parameter
Frequency Range (BW)
Phase Shift
Phase Deviation in BW
Control Voltage (C
V
) Range
Control Current
Insertion Loss in BW
I.L. Deviation in BW
I.L. Variation
VSWR in BW
IM3
IP3
P
IN
= 8 dBm, 900/905 MHz, C
V
= 0 V
Derived from IM3
33
C
V
= 12 V
C
V
= 0 V
C
V
= 0鈥?2 V
At F
O
, C
V
= 0鈥?2 V
F
O =
942.5
At F
O
, C
V
= 12 V
C
V
= 0鈥?2 V
0
Condition
Min.
925
100
1.5
2.0
12
1
2.3
0.3
0.75
1.8
-50
dBc
dBm
Typ.
Max.
960
Unit
MHz
Deg.
Deg.
V
碌A(chǔ)
dB
dB
dB
Alpha Industries, Inc.
[978] 241-7000
鈥?/div>
Fax
[978] 241-7906
鈥?/div>
Email
sales@alphaind.com
鈥?/div>
www.alphaind.com
Specifications subject to change without notice. 1/02A
1
