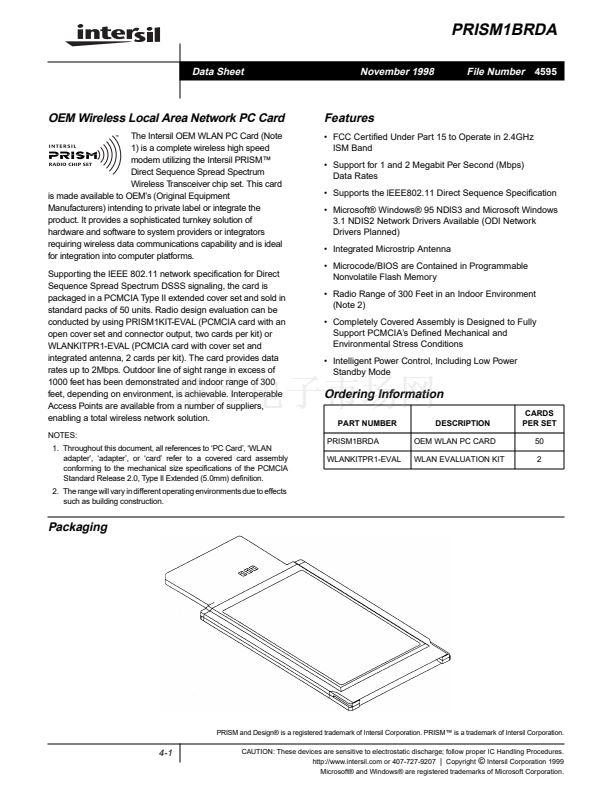

Wireless Transceiver chip set. This card
product. It provides a sophisticated turnkey solution of
for integration into computer platforms.
鈩?/div>
Features
鈥?FCC Certi鏗乪d Under Part 15 to Operate in 2.4GHz
ISM Band
鈥?Support for 1 and 2 Megabit Per Second (Mbps)
Data Rates
鈥?Supports the lEEE802.11 Direct Sequence Speci鏗乧ation
鈥?Microsoft廬 Windows廬 95 NDlS3 and Microsoft Windows
3.1 NDIS2 Network Drivers Available (ODI Network
Drivers Planned)
鈥?Integrated Microstrip Antenna
鈥?Microcode/BIOS are Contained in Programmable
Nonvolatile Flash Memory
鈥?Radio Range of 300 Feet in an Indoor Environment
(Note 2)
鈥?Completely Covered Assembly is Designed to Fully
Support PCMCIA鈥檚 De鏗乶ed Mechanical and
Environmental Stress Conditions
鈥?Intelligent Power Control, Including Low Power
Standby Mode
Supporting the IEEE 802.11 network specification for Direct
Sequence Spread Spectrum DSSS signaling, the card is
packaged in a PCMCIA Type II extended cover set and sold in
standard packs of 50 units. Radio design evaluation can be
conducted by using PRISM1KIT-EVAL (PCMCIA card with an
open cover set and connector output, two cards per kit) or
WLANKITPR1-EVAL (PCMCIA card with cover set and
integrated antenna, 2 cards per kit). The card provides data
rates up to 2Mbps. Outdoor line of sight range in excess of
1000 feet has been demonstrated and indoor range of 300
feet, depending on environment, is achievable. Interoperable
Access Points are available from a number of suppliers,
enabling a total wireless network solution.
NOTES:
1. Throughout this document, all references to 鈥楶C Card鈥? 鈥榃LAN
adapter鈥? 鈥榓dapter鈥? or 鈥榗ard鈥?refer to a covered card assembly
conforming to the mechanical size specifications of the PCMCIA
Standard Release 2.0, Type Il Extended (5.0mm) definition.
2. The range will vary in different operating environments due to effects
such as building construction.
Ordering Information
PART NUMBER
PRISM1BRDA
WLANKITPR1-EVAL
DESCRIPTION
OEM WLAN PC CARD
WLAN EVALUATION KIT
CARDS
PER SET
50
2
Packaging
PRISM and Design廬 is a registered trademark of Intersil Corporation. PRISM鈩?is a trademark of Intersil Corporation.
4-1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
http://www.intersil.com or 407-727-9207
|
Copyright
漏
Intersil Corporation 1999
Microsoft廬 and Windows廬 are registered trademarks of Microsoft Corporation.
