D A T A S H E E T
Optoelectronics

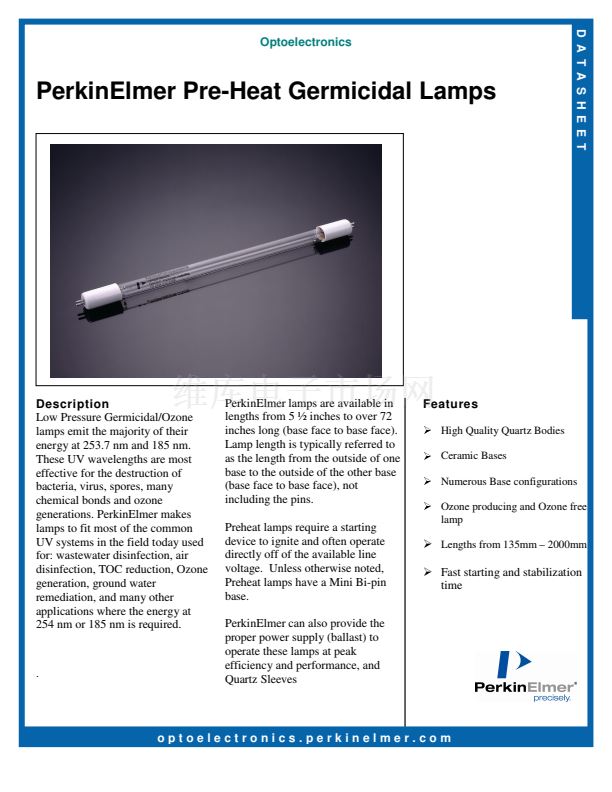

PerkinElmer Pre-Heat Germicidal Lamps
Preheat lamps require a starting
device to ignite and often operate
directly off of the available line
voltage. Unless otherwise noted,
Preheat lamps have a Mini Bi-pin
base.
PerkinElmer can also provide the
proper power supply (ballast) to
operate these lamps at peak
efficiency and performance, and
Quartz Sleeves
戮
Lengths from 135mm 鈥?2000mm
戮
Fast starting and stabilization
time
.
optoelectronics.perkinelmer.com
聽(tīng)
聽(tīng)
聽(tīng)
聽(tīng)
Description
Low Pressure Germicidal/Ozone
lamps emit the majority of their
energy at 253.7 nm and 185 nm.
These UV wavelengths are most
effective for the destruction of
bacteria, virus, spores, many
chemical bonds and ozone
generations. PerkinElmer makes
lamps to fit most of the common
UV systems in the field today used
for: wastewater disinfection, air
disinfection, TOC reduction, Ozone
generation, ground water
remediation, and many other
applications where the energy at
254 nm or 185 nm is required.
PerkinElmer lamps are available in
lengths from 5 錕?frac12; inches to over 72
inches long (base face to base face).

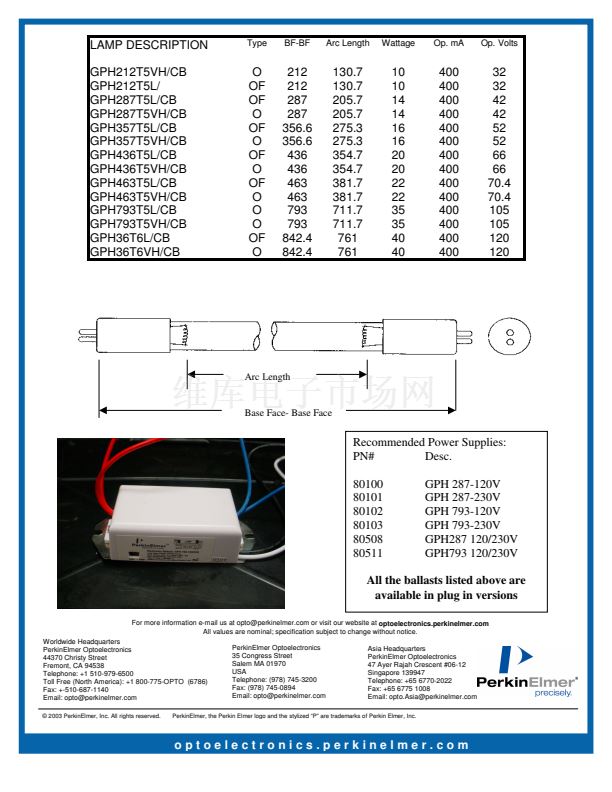

Lamp length is typically referred to
as the length from the outside of one
base to the outside of the other base
(base face to base face), not
including the pins.
Features
High Quality Quartz Bodies
Ceramic Bases
Numerous Base configurations
Ozone producing and Ozone free
lamp
