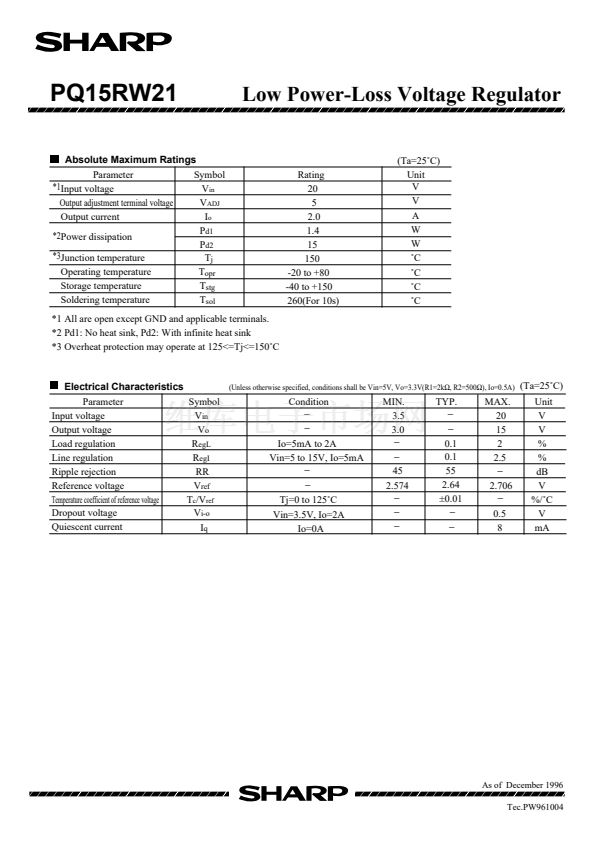

PQ15RW21
General Description
Low Power-Loss Voltage Regulator
2.0A, Variable Output, General Purpose Type Low Power-Loss Voltage Regulator

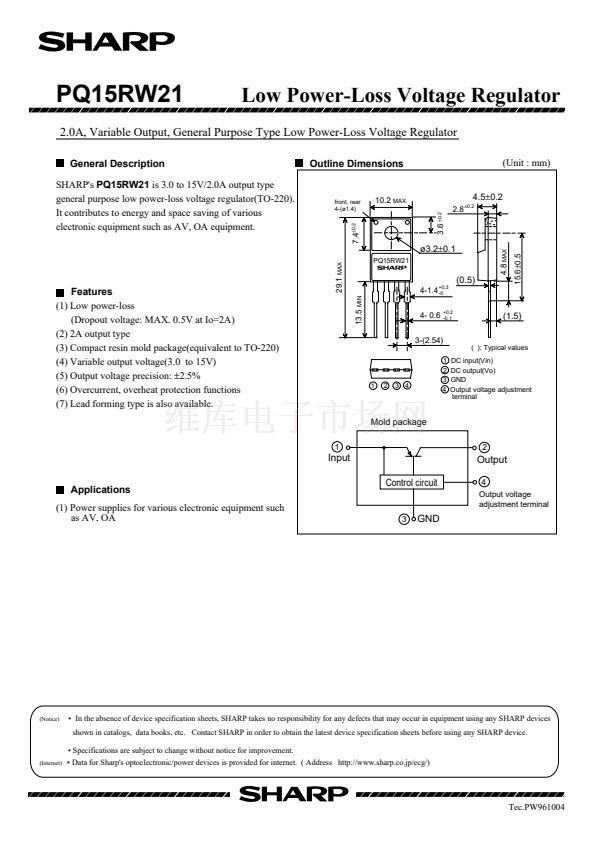

Outline Dimensions
(Unit : mm)
7.4
鹵0.2
4.8
MAX
酶3.2鹵0.1
MAX
3.6
鹵0.2
SHARP's
PQ15RW21
is 3.0 to 15V/2.0A output type
general purpose low power-loss voltage regulator(TO-220).
It contributes to energy and space saving of various
electronic equipment such as AV, OA equipment.
front, rear
4-(酶1.4)
10.2
MAX
4.5鹵0.2
2.8
鹵0.2
PQ15RW21
29.1
(0.5)
4-1.4
+0.3
-0
13.5
MIN
Features
(1) Low power-loss
(Dropout voltage: MAX. 0.5V at Io=2A)
(2) 2A output type
(3) Compact resin mold package(equivalent to TO-220)
(4) Variable output voltage(3.0 to 15V)
(5) Output voltage precision:
鹵2.5%
(6) Overcurrent, overheat protection functions
(7) Lead forming type is also available.
4- 0.6
+0.2
-0.1
(1.5)
3-(2.54)
1
2
3
4
( ): Typical values
DC input(Vin)
DC output(Vo)
GND
Output voltage adjustment
terminal
1
2
3 4
Mold package
1
2
Input
Applications
(1) Power supplies for various electronic equipment such
as AV, OA
Control circuit
Output
4
Output voltage
adjustment terminal
3
GND
