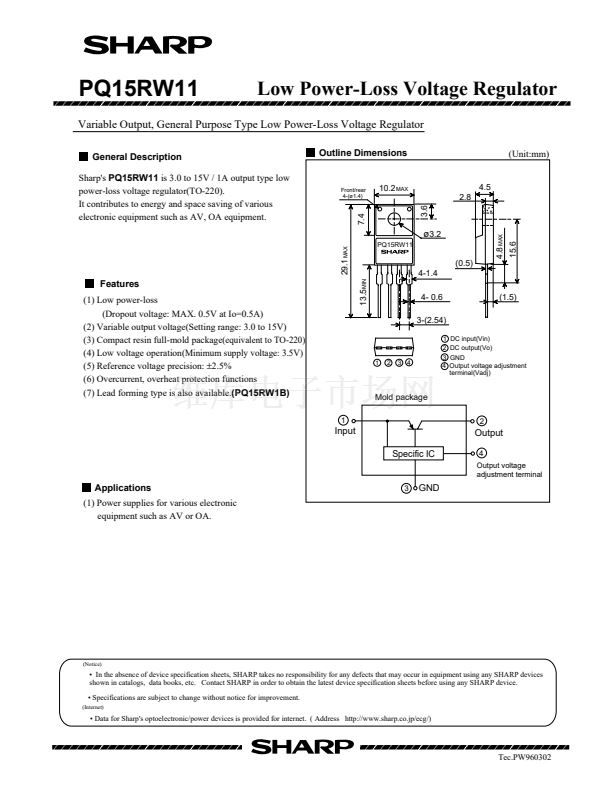

PQ15RW11
General Description
Low Power-Loss Voltage Regulator
Variable Output, General Purpose Type Low Power-Loss Voltage Regulator
Outline Dimensions
(Unit:mm)
7.4
Sharp's
PQ15RW11
is 3.0 to 15V / 1A output type low
power-loss voltage regulator(TO-220).
It contributes to energy and space saving of various
electronic equipment such as AV, OA equipment.
Front/rear
4-(酶1.4)
10.2
MAX
2.8
3.6
4.5
4.8
MAX
(0.5)
1
2
3
4
酶
3.2
29.1
MAX
PQ15RW11
4-1.4
13.5
MIN
4- 0.6
3-(2.54)
DC input(Vin)
DC output(Vo)
GND
Output voltage adjustment
terminal(Vadj)
Features
(1) Low power-loss
(Dropout voltage: MAX. 0.5V at Io=0.5A)
(2) Variable output voltage(Setting range: 3.0 to 15V)
(3) Compact resin full-mold package(equivalent to TO-220)
(4) Low voltage operation(Minimum supply voltage: 3.5V)
(5) Reference voltage precision:
鹵2.5%
(6) Overcurrent, overheat protection functions
(7) Lead forming type is also available.(PQ15RW1B)
1
(1.5)
1
2
3 4
Mold package
2
Input
Specific IC
Output
4
Output voltage
adjustment terminal
Applications
(1) Power supplies for various electronic
equipment such as AV or OA.
3
GND
(Notice)
鈥?In the absence of device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP devices
shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
鈥?Specifications are subject to change without notice for improvement.
(Internet)
鈥?Data for Sharp's optoelectronic/power devices is provided for internet. ( Address http://www.sharp.co.jp/ecg/)
Tec.PW960302
