Monitoring Relays
3-Phase Sequence and Phase Loss
Types DPA01, PPA01
鈥?3-phase monitoring relays for phase
sequence and phase loss
鈥?Detect when all 3 phases are present and have the
correct sequence
鈥?Measure on own power supply
鈥?Power supply range: 208 to 480 VAC (鹵15%)
鈥?Output: 8 A SPDT relay or 8 A DPDT normally energized
鈥?For mounting on DIN-rail in accordance with DIN/EN
50 022 (DPA01) or plug-in module (PPA01)
鈥?22.5 mm Euronorm housing (DPA01) or 36 mm plug-in
module (PPA01)
鈥?LED indication for relay and power supply ON
DPA01D
PPA01
Product Description
3-phase relay for detection of
incorrect phase sequence,
total and partial phase loss.
Supply range from 208 to 480
VAC covered by one multi-
voltage relay (or by two multi-
voltage relays for DPA01D
models). For mounting on
DIN-rail or plug-in module.
The device detects regener-
ated voltages up to 70% of
the mains nominal voltage
(phase-neutral).
Ordering Key
Housing
Function
Type
Item number
Output
Power supply
DPA 01 C M44
Type Selection
Mounting
DIN-rail
DIN-rail
Plug-in
Output
SPDT
DPDT
SPDT
Supply: 208-480 VAC
DPA 01 C M44
DPA 01 D M23
PPA 01 C M44
DPA 01 D M48
Supply: 208-240 VAC
Supply: 380-480 VAC
Input Specifications
Input
L1, L2, L3
DPA01: Terminals L1, L2, L3
PPA01: Terminals 5, 6, 7
Measures on own supply
177 to 550 VAC
177 to 475 VAC
177 to 275 VAC
323 to 550 VAC
> 70% of the mains phase-
neutral voltage
Output Specifications
Output
Rated insulation voltage
Contact ratings
(AgSnO
2
)
DPA01C, PPA01 (SPDT):
Resistive loads
AC 1
DC 12
Small inductive loads AC 15
DC 13
DPA01D (DPDT):
Resistive loads
AC 1
Small inductive loads AC 15
DC 13
Mechanical life
Electrical life
SPDT or DPDT relay, N.E.
250 VAC
碌
8 A @ 250 VAC
5 A @ 24 VDC
2.5 A @ 250 VAC
2.5 A @ 24 VDC
8 A @ 250 VAC
3 A @ 250 VAC
2 A @ 24 VDC
鈮?/div>
30 x 10
6
operations
鈮?/div>
10
5
operations
(at 8 A, 250 V, cos
蠒
= 1)
鈮?/div>
7200 operations/h
Measuring ranges
208 to 480 VAC (DPA01C)
208 to 415 VAC (PPA01C)
208 to 240 VAC (DPA01D)
380 to 480 VAC (DPA01D)
ON-level
Operating frequency
Dielectric strength
鈮?/div>
2 kVAC (rms)
Dielectric voltage
Rated impulse withstand volt. 4 kV (1.2/50 碌s)

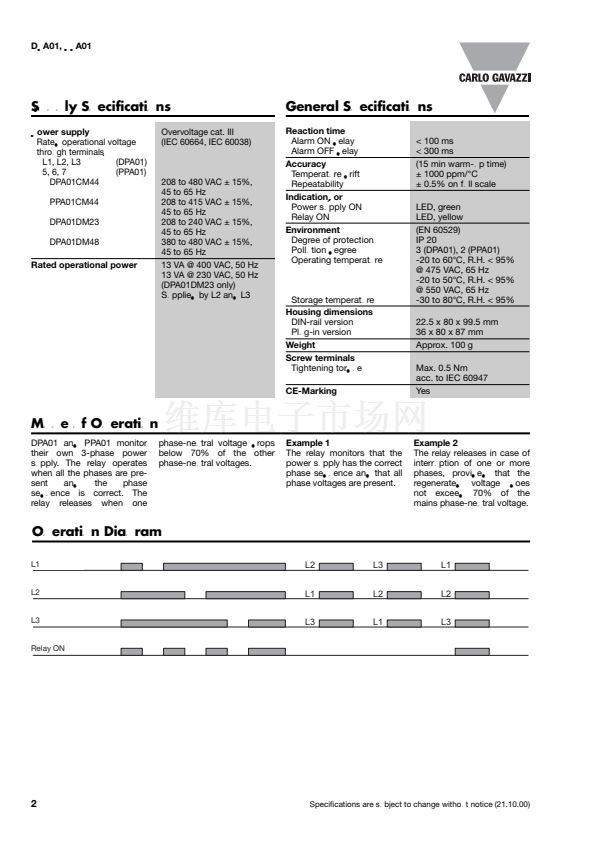

Specifications are subject to change without notice (21.10.00)
