PMN40LN

TrenchMOS鈩?logic level FET

M3D302

Rev. 01 鈥?13 November 2002

Product data

1. Description

N-channel logic level 鏗乪ld-effect power transistor in a plastic package using

TrenchMOS鈩?technology.

Product availability:

PMN40LN in SOT457 (TSOP6).

2. Features

s

TrenchMOS鈩?technology

s

Logic level compatible

s

Surface mount package.

3. Applications

s

Battery management

s

High speed switch

s

Low power DC to DC converter.

4. Pinning information

Table 1:

Pin

1,2,5,6

3

4

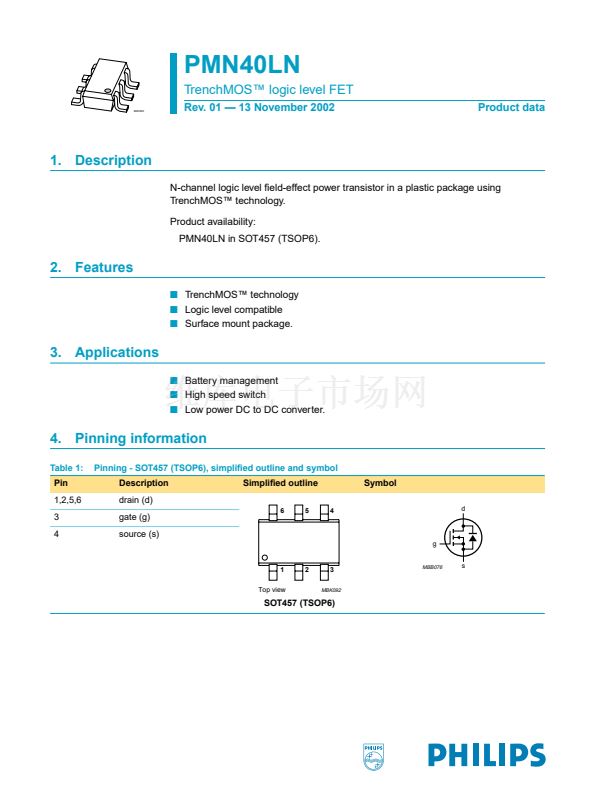

Pinning - SOT457 (TSOP6), simpli鏗乪d outline and symbol

Description

drain (d)

gate (g)

source (s)

g

s

6

5

4

d

Simpli鏗乪d outline

Symbol

1

Top view

2

3

MBK092

MBB076

SOT457 (TSOP6)
