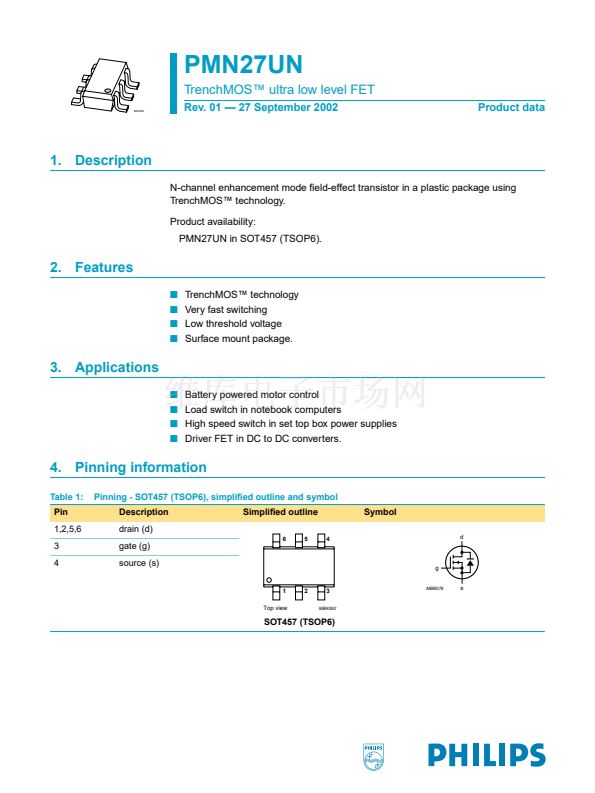

PMN27UN

TrenchMOS鈩?ultra low level FET

M3D302

Rev. 01 鈥?27 September 2002

Product data

1. Description

N-channel enhancement mode 鏗乪ld-effect transistor in a plastic package using

TrenchMOS鈩?technology.

Product availability:

PMN27UN in SOT457 (TSOP6).

2. Features

s

s

s

s

TrenchMOS鈩?technology

Very fast switching

Low threshold voltage

Surface mount package.

3. Applications

s

s

s

s

Battery powered motor control

Load switch in notebook computers

High speed switch in set top box power supplies

Driver FET in DC to DC converters.

4. Pinning information

Table 1:

Pin

1,2,5,6

3

4

Pinning - SOT457 (TSOP6), simpli鏗乪d outline and symbol

Description

drain (d)

gate (g)

source (s)

1

Top view

2

3

MBK092

Simpli鏗乪d outline

6

5

4

Symbol

d

g

s

MBB076

SOT457 (TSOP6)
