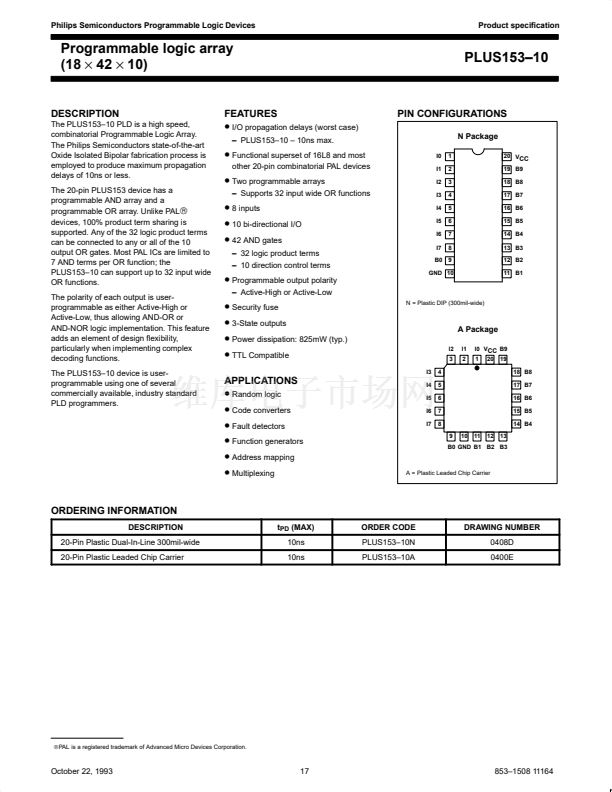

Philips Semiconductors Programmable Logic Devices
Product specification
Programmable logic array
(18
脳
42
脳
10)
PLUS153鈥?0
DESCRIPTION
The PLUS153鈥?0 PLD is a high speed,
combinatorial Programmable Logic Array.
The Philips Semiconductors state-of-the-art
Oxide Isolated Bipolar fabrication process is
employed to produce maximum propagation
delays of 10ns or less.
The 20-pin PLUS153 device has a
programmable AND array and a
programmable OR array. Unlike PAL
廬
devices, 100% product term sharing is
supported. Any of the 32 logic product terms
can be connected to any or all of the 10
output OR gates. Most PAL ICs are limited to
7 AND terms per OR function; the
PLUS153鈥?0 can support up to 32 input wide
OR functions.
The polarity of each output is user-
programmable as either Active-High or
Active-Low, thus allowing AND-OR or
AND-NOR logic implementation. This feature
adds an element of design flexibility,
particularly when implementing complex
decoding functions.
The PLUS153鈥?0 device is user-
programmable using one of several
commercially available, industry standard
PLD programmers.
FEATURES
鈥?/div>
I/O propagation delays (worst case)
鈥?/div>
PLUS153鈥?0 鈥?10ns max.
PIN CONFIGURATIONS
N Package
I0
I1
I2
I3
I4
I5
I6
I7
B0
1
2
3
4
5
6
7
8
9
20 V
CC
19 B9
18 B8
17 B7
16 B6
15 B5
14 B4
13 B3
12 B2
11 B1
鈥?/div>
Functional superset of 16L8 and most
other 20-pin combinatorial PAL devices
鈥?/div>
Two programmable arrays
鈥?/div>
Supports 32 input wide OR functions
鈥?/div>
8 inputs
鈥?/div>
10 bi-directional I/O
鈥?/div>
42 AND gates
鈥?/div>
32 logic product terms
鈥?/div>
10 direction control terms
鈥?/div>
Programmable output polarity
鈥?/div>
Active-High or Active-Low
GND 10
鈥?/div>
Security fuse
鈥?/div>
3-State outputs
鈥?/div>
Power dissipation: 825mW (typ.)
鈥?/div>
TTL Compatible
APPLICATIONS
N = Plastic DIP (300mil-wide)
A Package
I2
3
I3
4
5
6
7
8
9
10
11
12
13
I1
2
I0 V
CC
B9
1 20 19
18 B8
17 B7
16 B6
15 B5
14 B4
鈥?/div>
Random logic
鈥?/div>
Code converters
鈥?/div>
Fault detectors
鈥?/div>
Function generators
鈥?/div>
Address mapping
鈥?/div>
Multiplexing
I4
I5
I6
I7
B0 GND B1 B2 B3
A = Plastic Leaded Chip Carrier
ORDERING INFORMATION
DESCRIPTION
20-Pin Plastic Dual-In-Line 300mil-wide
20-Pin Plastic Leaded Chip Carrier
t
PD
(MAX)
10ns
10ns
ORDER CODE
PLUS153鈥?0N
PLUS153鈥?0A
DRAWING NUMBER
0408D
0400E
廬PAL
is a registered trademark of Advanced Micro Devices Corporation.
October 22, 1993
17
853鈥?508 11164
