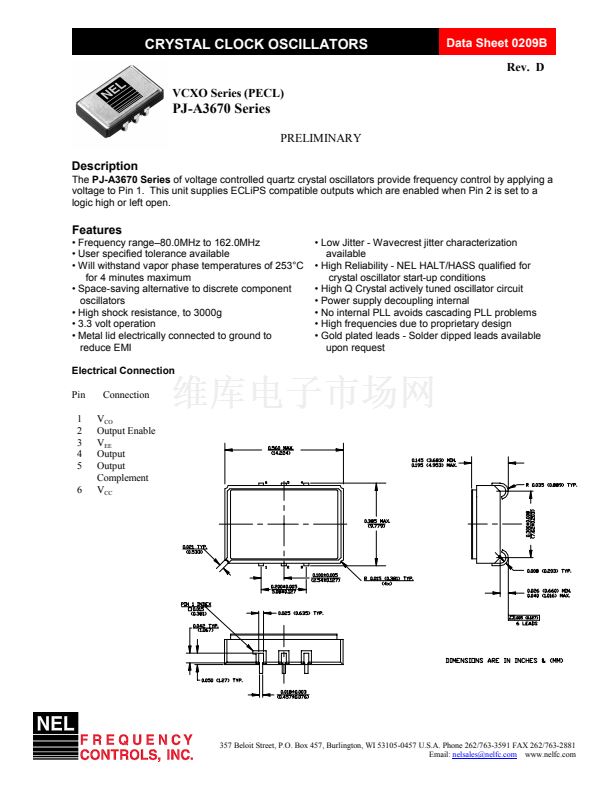

CRYSTAL CLOCK OSCILLATORS
VCXO Series (PECL)
Data Sheet 0209B
Rev. D
PJ-A3670 Series
PRELIMINARY
Description
The
PJ-A3670 Series
of voltage controlled quartz crystal oscillators provide frequency control by applying a
voltage to Pin 1. This unit supplies ECLiPS compatible outputs which are enabled when Pin 2 is set to a
logic high or left open.
Features
鈥?Frequency range鈥?0.0MHz to 162.0MHz
鈥?User specified tolerance available
鈥?Will withstand vapor phase temperatures of 253擄C
for 4 minutes maximum
鈥?Space-saving alternative to discrete component
oscillators
鈥?High shock resistance, to 3000g
鈥?3.3 volt operation
鈥?Metal lid electrically connected to ground to
reduce EMI
Electrical Connection
Pin
1
2
3
4
5
6
Connection
V
CO
Output Enable
V
EE
Output
Output
Complement
V
CC
鈥?Low Jitter - Wavecrest jitter characterization
available
鈥?High Reliability - NEL HALT/HASS qualified for
crystal oscillator start-up conditions
鈥?High Q Crystal actively tuned oscillator circuit
鈥?Power supply decoupling internal
鈥?No internal PLL avoids cascading PLL problems
鈥?High frequencies due to proprietary design
鈥?Gold plated leads - Solder dipped leads available
upon request
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
