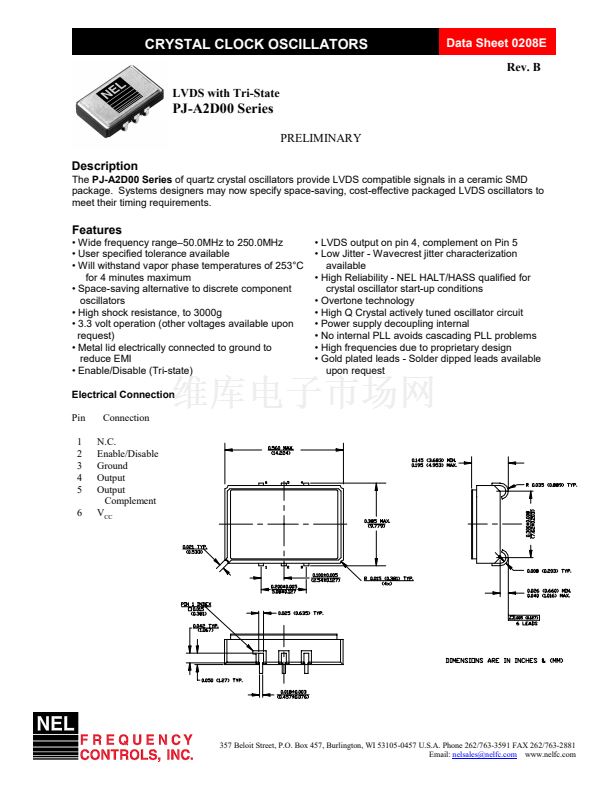

CRYSTAL CLOCK OSCILLATORS
Data Sheet 0208E
Rev. B
LVDS with Tri-State
PJ-A2D00 Series
PRELIMINARY
Description
The
PJ-A2D00 Series
of quartz crystal oscillators provide LVDS compatible signals in a ceramic SMD
package. Systems designers may now specify space-saving, cost-effective packaged LVDS oscillators to
meet their timing requirements.
Features
鈥?Wide frequency range鈥?0.0MHz to 250.0MHz
鈥?User specified tolerance available
鈥?Will withstand vapor phase temperatures of 253擄C
for 4 minutes maximum
鈥?Space-saving alternative to discrete component
oscillators
鈥?High shock resistance, to 3000g
鈥?3.3 volt operation (other voltages available upon
request)
鈥?Metal lid electrically connected to ground to
reduce EMI
鈥?Enable/Disable (Tri-state)
Electrical Connection
Pin
1
2
3
4
5
6
Connection
N.C.
Enable/Disable
Ground
Output
Output
Complement
V
CC
鈥?LVDS output on pin 4, complement on Pin 5
鈥?Low Jitter - Wavecrest jitter characterization
available
鈥?High Reliability - NEL HALT/HASS qualified for
crystal oscillator start-up conditions
鈥?Overtone technology
鈥?High Q Crystal actively tuned oscillator circuit
鈥?Power supply decoupling internal
鈥?No internal PLL avoids cascading PLL problems
鈥?High frequencies due to proprietary design
鈥?Gold plated leads - Solder dipped leads available

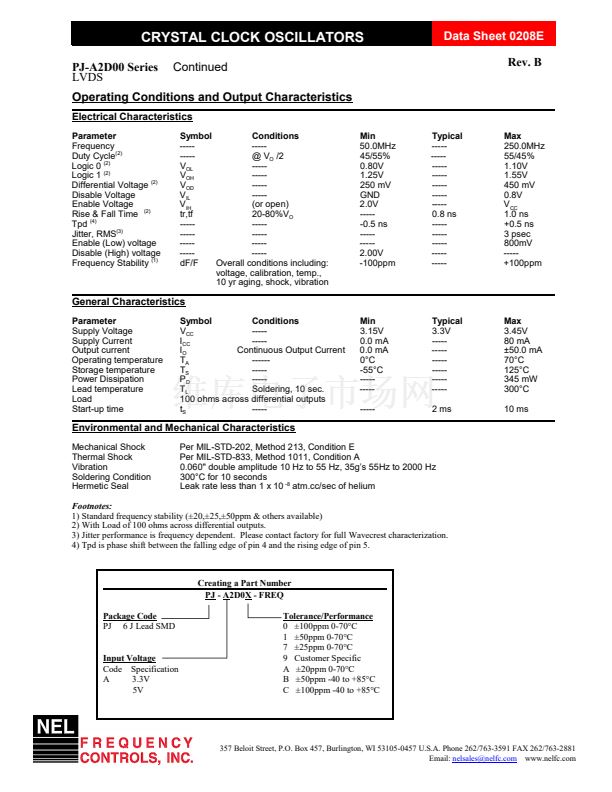

upon request
