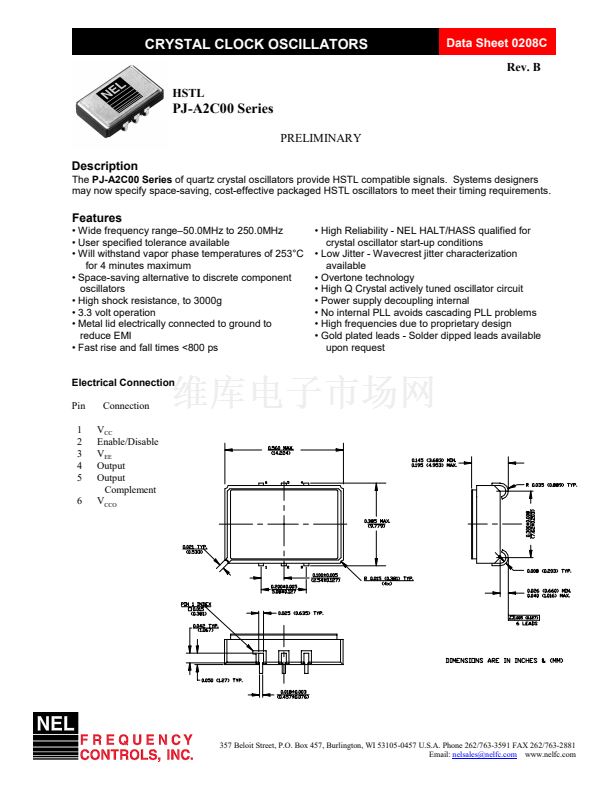

CRYSTAL CLOCK OSCILLATORS
Data Sheet 0208C
Rev. B
HSTL
PJ-A2C00 Series
PRELIMINARY
Description
The
PJ-A2C00 Series
of quartz crystal oscillators provide HSTL compatible signals. Systems designers
may now specify space-saving, cost-effective packaged HSTL oscillators to meet their timing requirements.
Features
鈥?Wide frequency range鈥?0.0MHz to 250.0MHz
鈥?User specified tolerance available
鈥?Will withstand vapor phase temperatures of 253擄C
for 4 minutes maximum
鈥?Space-saving alternative to discrete component
oscillators
鈥?High shock resistance, to 3000g
鈥?3.3 volt operation
鈥?Metal lid electrically connected to ground to
reduce EMI
鈥?Fast rise and fall times <800 ps
鈥?High Reliability - NEL HALT/HASS qualified for
crystal oscillator start-up conditions
鈥?Low Jitter - Wavecrest jitter characterization
available
鈥?Overtone technology
鈥?High Q Crystal actively tuned oscillator circuit
鈥?Power supply decoupling internal
鈥?No internal PLL avoids cascading PLL problems
鈥?High frequencies due to proprietary design
鈥?Gold plated leads - Solder dipped leads available
upon request
Electrical Connection
Pin
1
2
3
4
5
6
Connection
V
CC
Enable/Disable
V
EE
Output
Output
Complement
V
CCO
