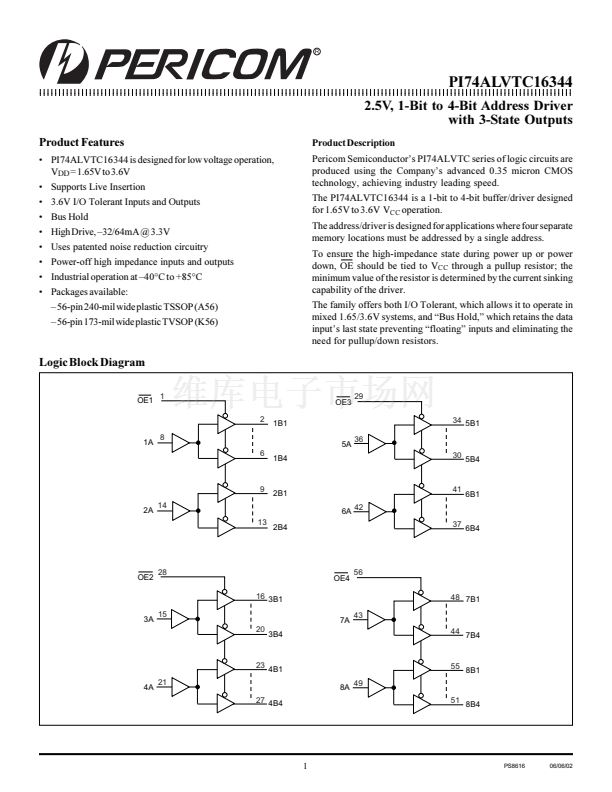

PI74ALVTC16344
2.5V, 1-Bit to 4-Bit Address Driver
with 3-State Outputs
Product Features
聲 PI74ALVTC16344 is designed for low voltage operation,
V
DD
= 1.65V to 3.6V
聲 Supports Live Insertion
聲 3.6V I/O Tolerant Inputs and Outputs
聲 Bus Hold
聲 High Drive, 聳32/64mA @ 3.3V
聲 Uses patented noise reduction circuitry
聲 Power-off high impedance inputs and outputs
聲 Industrial operation at 聳40擄C to +85擄C
聲 Packages available:
聳 56-pin 240-mil wide plastic TSSOP (A56)
聳 56-pin 173-mil wide plastic TVSOP (K56)
Product Description
Pericom Semiconductor聮s PI74ALVTC series of logic circuits are
produced using the Company聮s advanced 0.35 micron CMOS
technology, achieving industry leading speed.
The PI74ALVTC16344 is a 1-bit to 4-bit buffer/driver designed
for 1.65V to 3.6V V
CC
operation.
The address/driver is designed for applications where four separate
memory locations must be addressed by a single address.
To ensure the high-impedance state during power up or power
down, OE should be tied to V
CC
through a pullup resistor; the
minimum value of the resistor is determined by the current sinking
capability of the driver.
The family offers both I/O Tolerant, which allows it to operate in
mixed 1.65/3.6V systems, and 聯(lián)Bus Hold,聰 which retains the data
input聮s last state preventing 聯(lián)floating聰 inputs and eliminating the
need for pullup/down resistors.
Logic Block Diagram
OE1
1
2
1A
8
6
1B4
1B1
5A
36
30
5B4
OE3
29
34
5B1
9
2A
14
13
2B1
6A
2B4
42
41
6B1
37
6B4
OE2
28
16
3B1
OE4
56
48
7B1
3A
15
20
3B4
7A
43
44
7B4
23
4A
21
4B1
8A
49
55
8B1
27
4B4
51
8B4
1
PS8616
06/06/02
